Spelsberg 43542001 Junction box (L x W x H) 252 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)

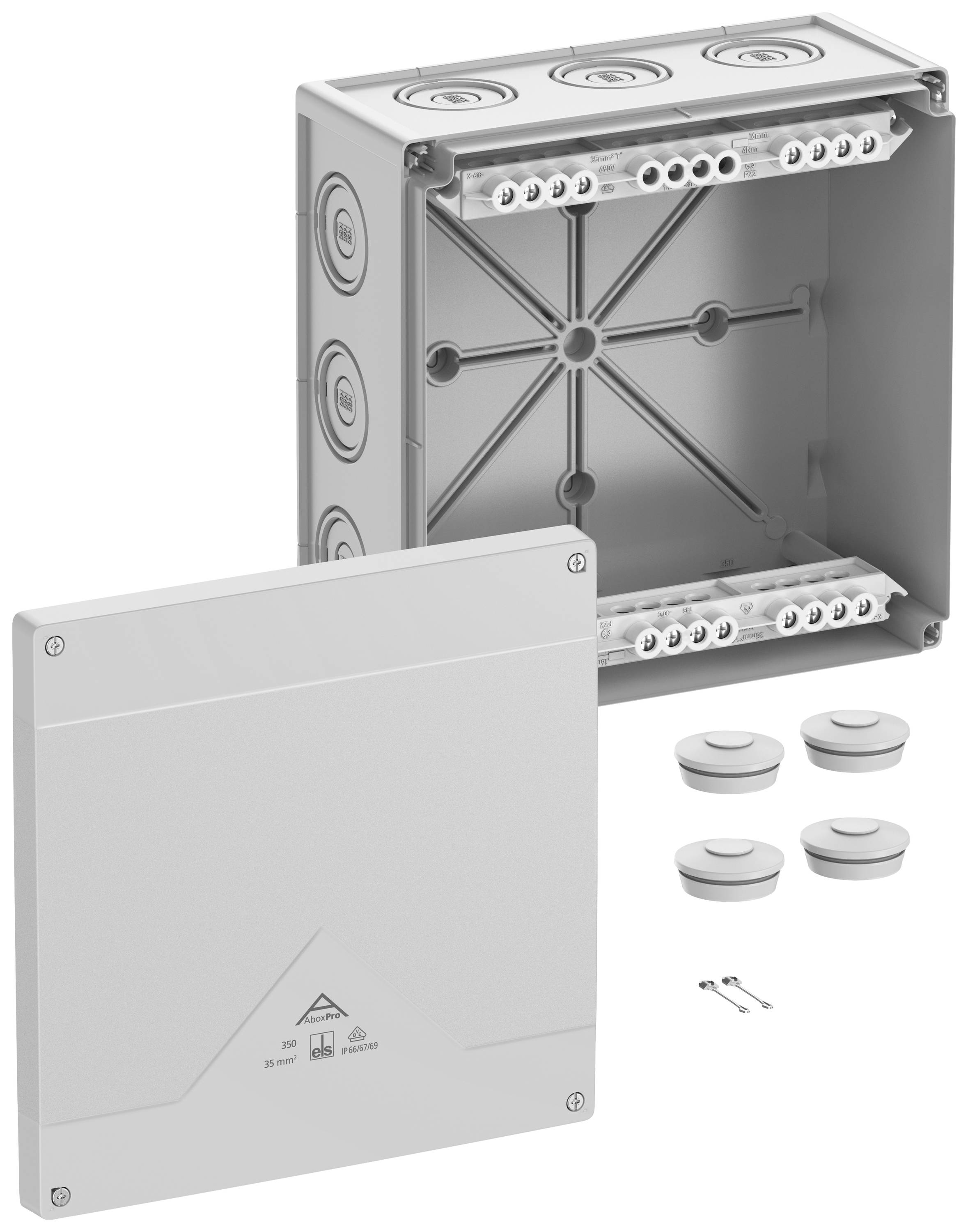

Empty grey junction box with removable lid and side seals. Wire slots suitable for cable management.
EAN:
Part number:
Item no:
Dispatches on Fri 13 Nov
79 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 91.99 / piece)
€ 91.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Junction box

Factory colour

Grey

IP66

IP67

IP69

Dim

(L x W x H) 252 x 252 x 120 mm

Content

1 pc(s)

Width

252 mm

Height

120 mm

Length

252 mm

UKCA

not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3062316 Spelsberg 43542001 Junction box (L x W x H) 252 x 252 x 120 mm Grey IP66, IP67, IP69 1 pc(s)

Description

Junction box with IP66/IP67/IP69 protection rating, 35 mm² nominal cross-section, certified by VDE (DIN EN 60670-1/22 (VDE 0606-1/--22), DLG (ammonia resistance), DNV (class: Ships and offshore installations), deflection membranes, M20/M25/M40/M50, (4 back, 12 side), interior fixing points, for industrial installations and unprotected outdoor areas, gray, Ui = 690 V AC, In = 125 A, with elevated screw terminal, 5-pole - 35 mm², clamping cross-sections per pole: 12 x 10 mm², 8 x 16 mm², 4 x 25 mm². 4 x 35 mm² Cu rigid/flexible with wire-end sleeve.

This text is machine translated.

Scope of delivery

  • Accessories attached:
  • 4 double diaphragm supports IP66 M44 sealing range 17 - 28 mm
  • Cover retainer
