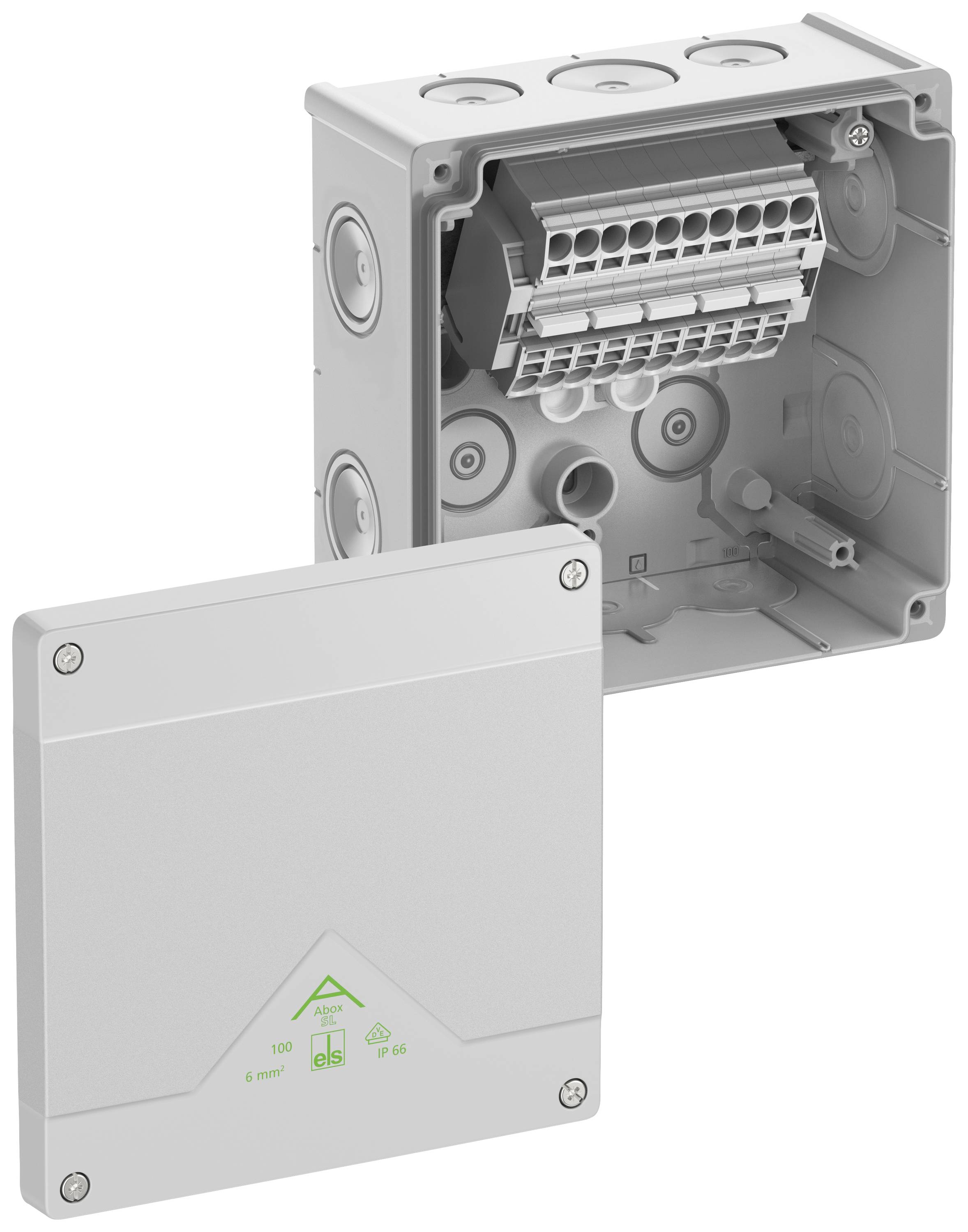

Spelsberg 80644001 Junction box (L x W x H) 152 x 152 x 80 mm Grey IP66 1 pc(s)

Junction box, with IP66 protection, nominal diameter 6 mm², UI=690 V AC, certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20/M25/M32, sealing range 8 - 28 mm, (2 rear-side, 10 lateral), inner fixing positions, with screwless clamps, for standard indoor and protected outdoor installations, gray, In=41 A, with high-lying, screwless clamp WAGO 2006-1201, 5-pin, max. Nominal cross-section according to DIN EN 60998: 6 mm², clamping cross-sections per pole: 4 x 0.5 to 10 mm² rigid / flexible Cu.
