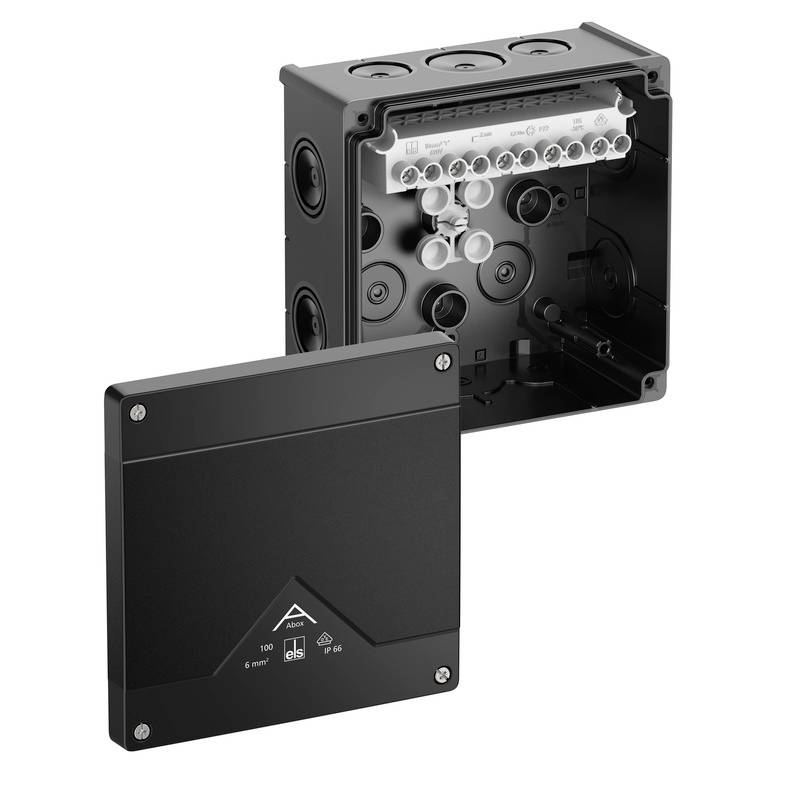

Black electrical junction box with a removable cover, showing internal conduit knockouts and connector ports for wiring installation.<br>

Black electrical junction box with a removable cover, showing internal conduit knockouts and connector ports for wiring installation.<br>

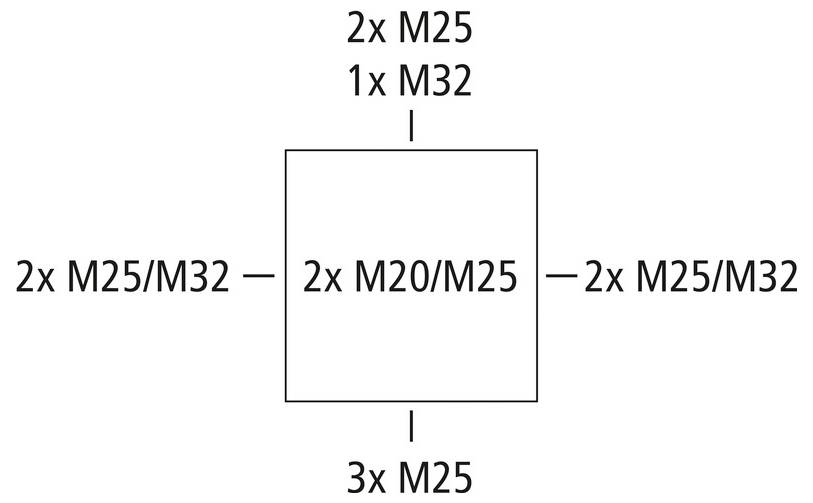

Diagram of a square with connection labels: top '2x M25', '1x M32'; left and right '2x M25/M32'; center '2x M20/M25'; bottom '3x M25'.

1/2

Spelsberg

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 25.99 / piece)

€ 25.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Branch box, protection class IP66, max. Conductor cross-section 10², impact strength IK07, protection class II, UI 690V AC, Ui 690V DC, DLG, VDE, halogen-free

Junction box, with IP66 protection, nominal diameter 10 mm², certified by VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22), DLG (ammonia resistance), self-sealing, soft introduction membranes, M20/M25/M32, Sealing area 8 - 28 mm, (2 at the back, 10 at the sides), interior fitting, for standard installations indoors and in protected outdoor areas, black, Ui = 690 V AC, In = 57 A, with elevated screw terminal, 5-pole, max. Nominal cross-section according to DIN EN 60998: 10 mm², clamping cross-sections per pole: 4 x 2.5 mm², 4 x 4 mm², 4 x 6 mm², 4 x 10 mm², 2 x 16 mm² rigid/flexible copper with wire-end sleeve dimensions: 152 x 152 x 80 mm
This text is machine translated.

Technical specifications

Product type: Junction box

Factory colour: Black

: IP66

Dim: (L x W x H) 152 x 152 x 80 mm

Content: 1 pc(s)

Width: 152 mm

Height: 80 mm

Length: 152 mm

UKCA: not relevant
