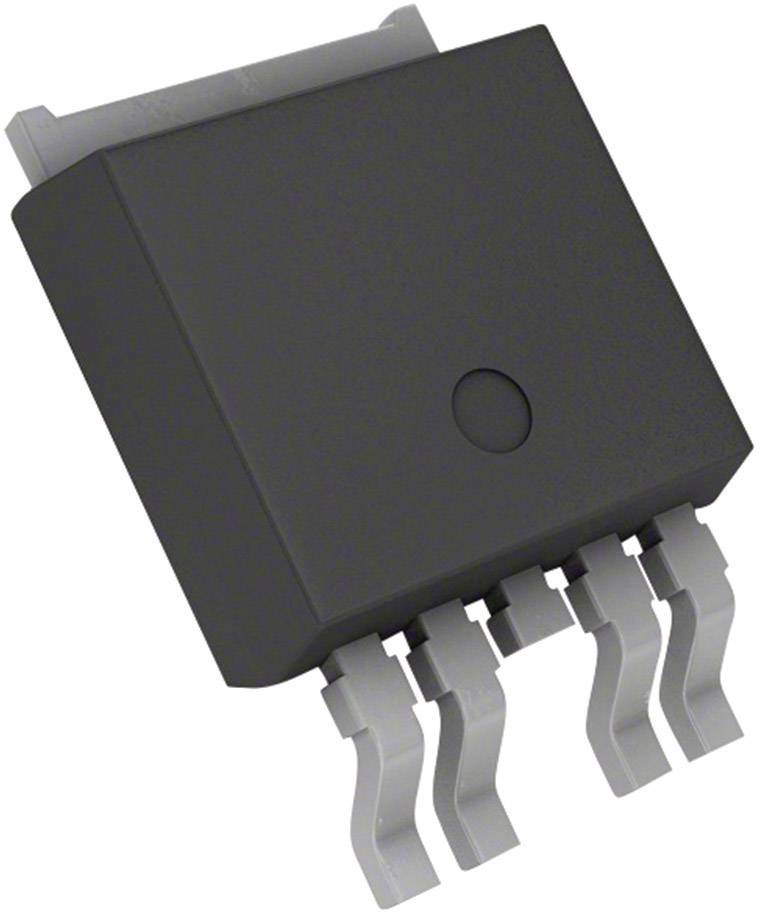

Image similar
STMicroelectronics VN330SPTR-E PMIC - ELCs High side Power SO 10
Product type
PMIC - ELCs
Enclosure
Power SO 10
Interfaces
On/Off
Type
VN330SPTR-E
Manufacturer
STMicroelectronics
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 9.99 / piece)
€ 9.99
incl. VAT
Only 6 Piece(s) available
Technical specifications
- Type
VN330SPTR-E
- Product type
PMIC - ELCs
- Enclosure
Power SO 10
- Manufacturer
STMicroelectronics
- Manuf. code
STM
- Switching type
General purpose
- No. of outputs
4
- Interfaces
On/Off
- Current output (max.)
700 mA
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
+125 °C
- Output
High side
- Output type
N-channel
- Input type
Non-inverting
- Fail safe
Current limiter (fixed)
Overtemperature
- Functions
Status register
- Voltage load (max.)
36 V
- Voltage load (min.)
10 V
- I/O ratio
1:1
- R(DS)(on)
200 mΩ
Documents & Downloads
Datasheet
Datasheet 1185641 STMicroelectronics VN330SPTR-E PMIC - ELCs High side Power SO 10
Description
Integrated circuits from leading manufacturers. Please read our extensive documentation which is free to download.
