Buy Sygonix Wireless Ball valve actuator

A hand is holding a smartphone with an open app for controlling a smart valve controller, which is shown next to the device.

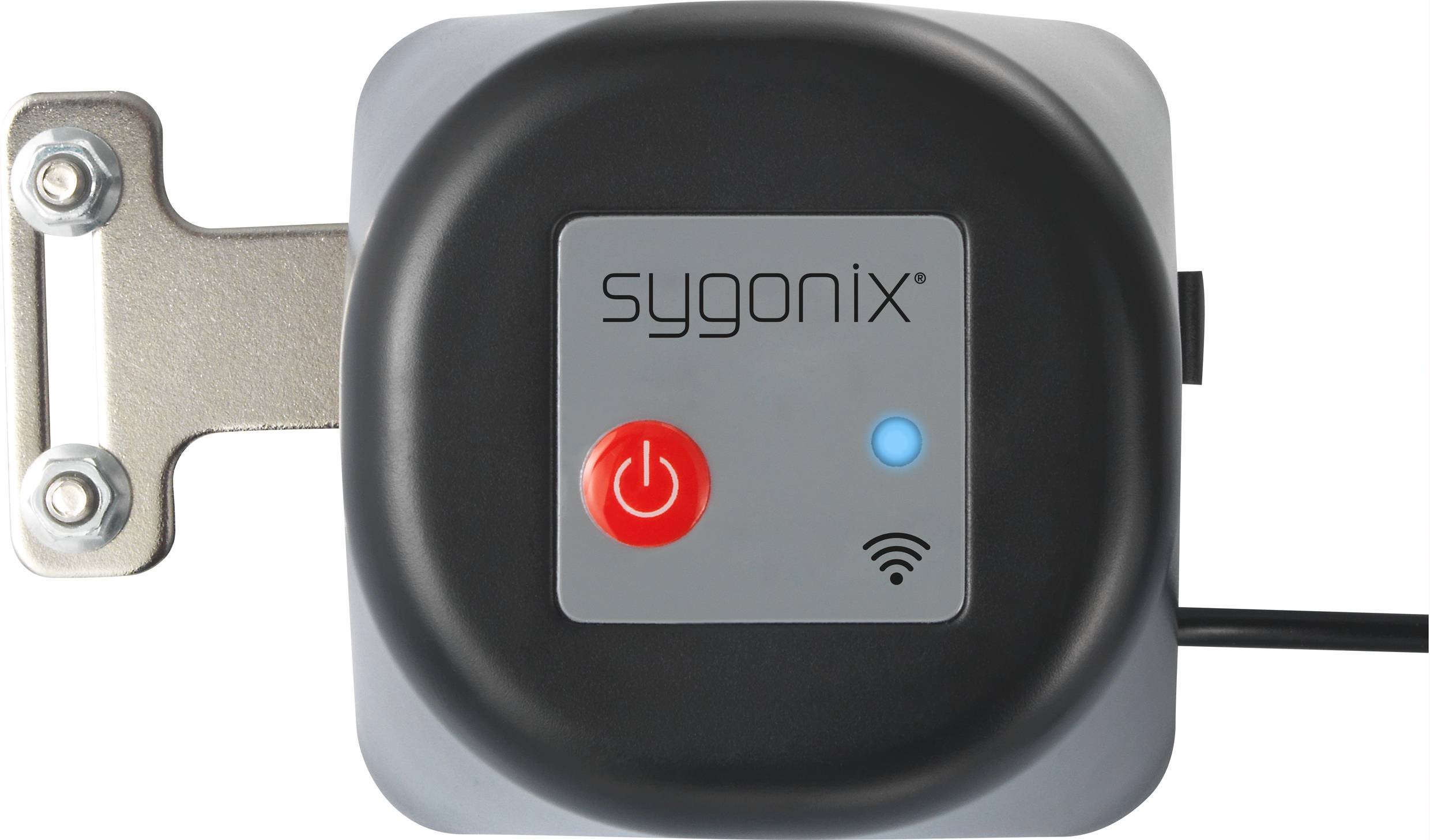

A black and grey device with 'sygonix' written on it, a red power button and a blue LED light. It has a metal mounting bracket.

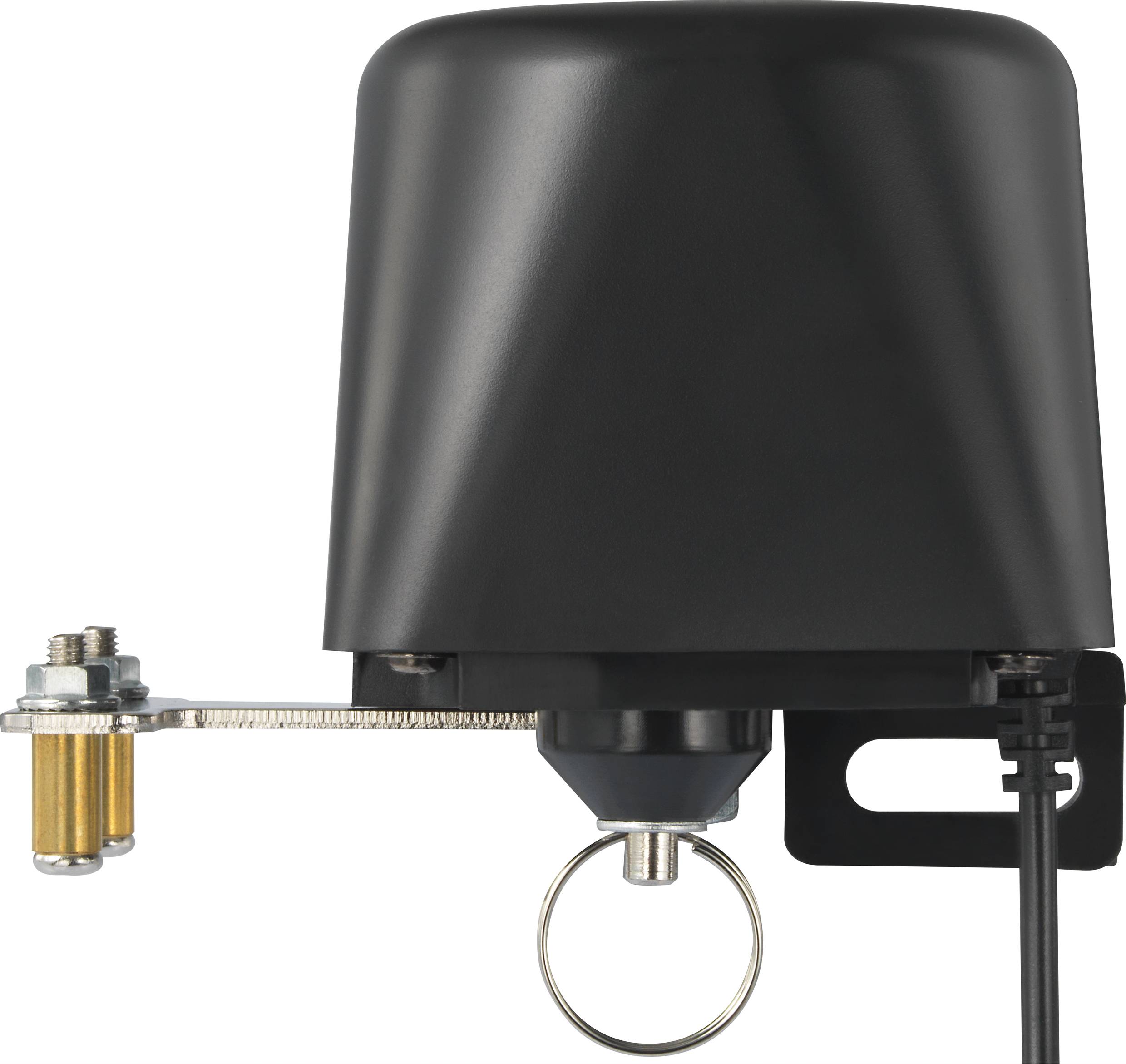

A black electric motor for garage doors. It has metal and plastic components, with a pull chain for opening and closing.

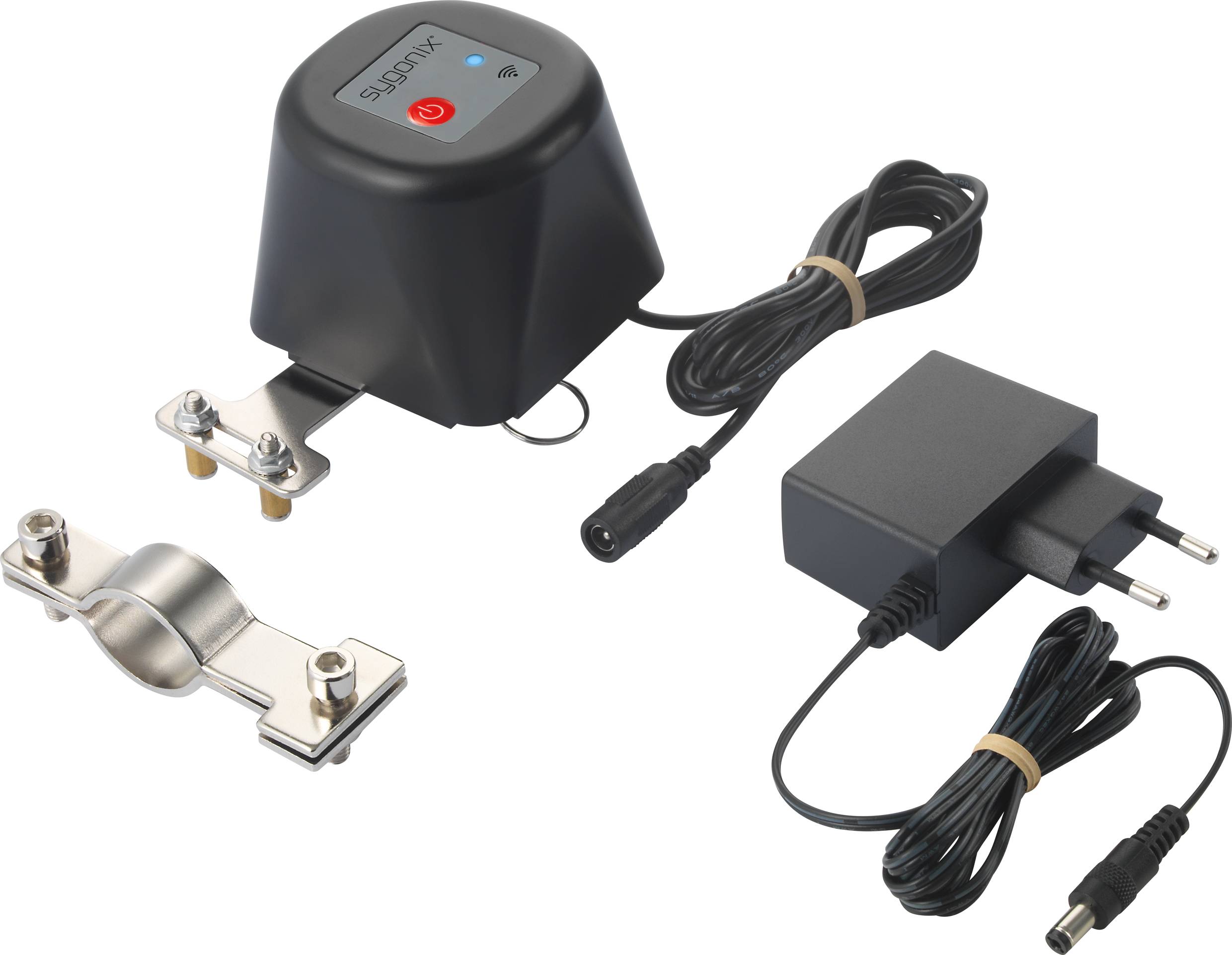

'Electrical device with power supply and mounting bracket.'

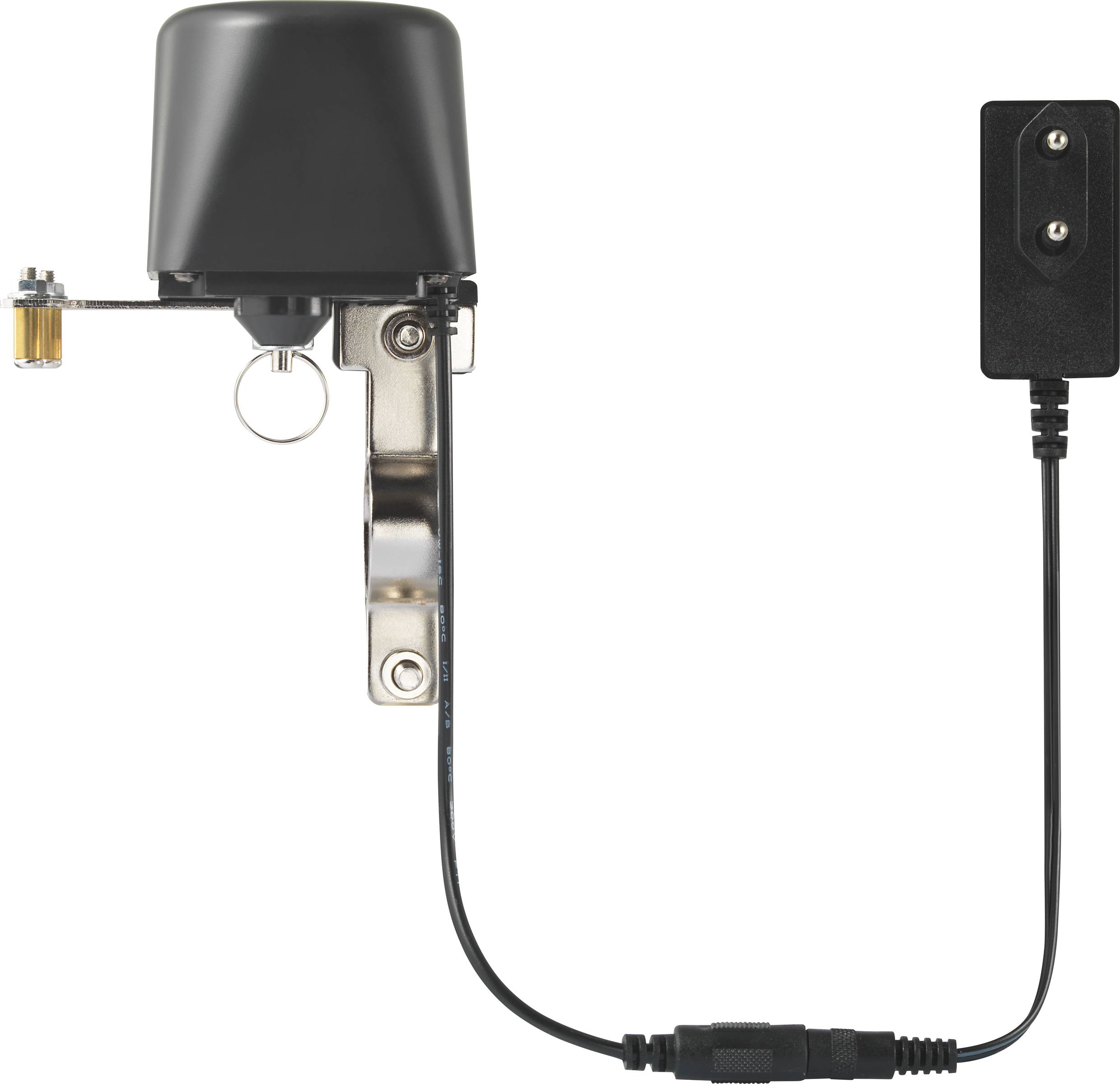

Electric motor mounting with power cable. Main components: motor, mounting bracket and connection adapter. Suitable for window automation.

A hand is holding a smartphone with the app 'Smart Valve Controller'. Next to it is a valve with a switch indicating 'ON' and 'OFF'.

'Electric Water Tap Valve', left: Front view with dimensions 55mm x 100mm x 22mm, right: Valve diagram with mounting details.

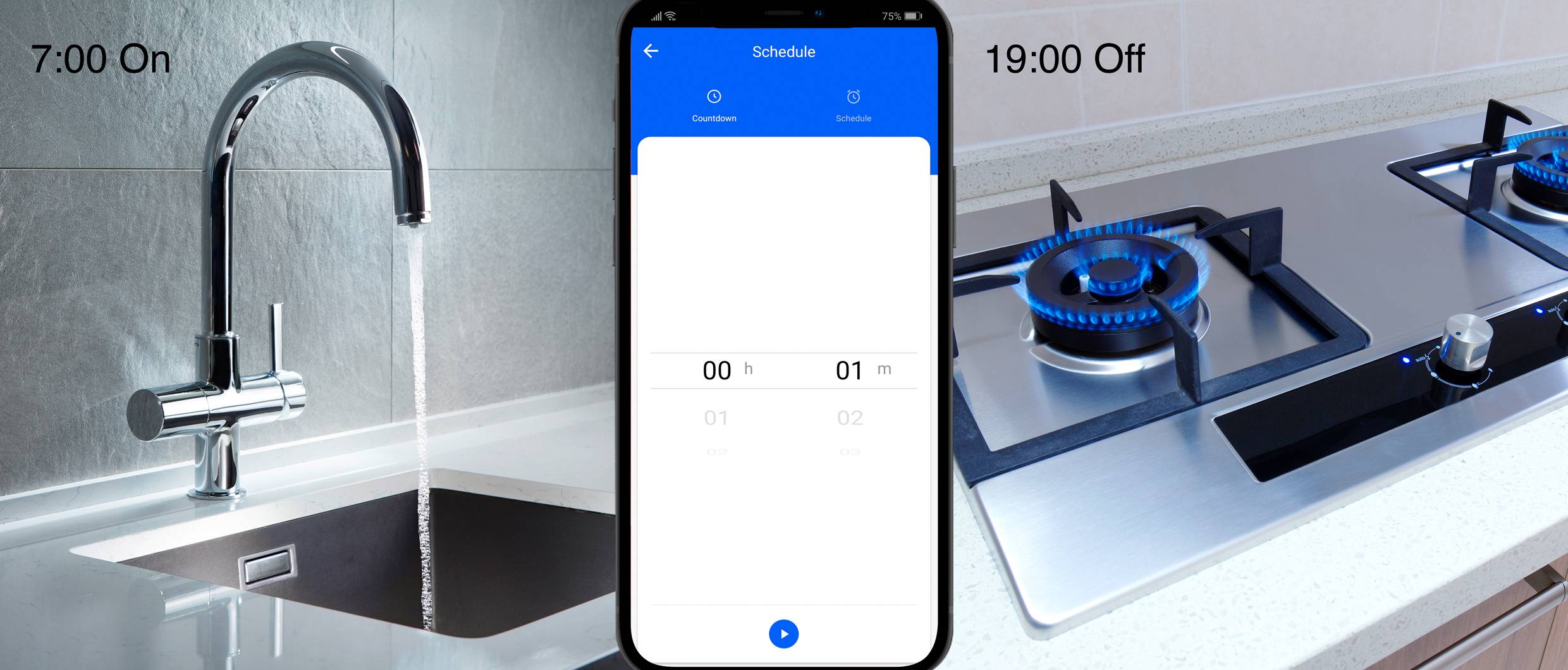

A smartphone displays a schedule for turning water and gas supply on at 7:00 and off at 19:00.

1/8

Our service for you

Fast track dispatch on Tue, 29 Sep

70 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 20.16 / piece)

€ 20.16

plus VAT.

14-day return policy included

Report legal concerns

Pre-contractual information under the EU Data Act

Highlights & Details

Wi-Fi ball valve drive

Control water/gas valve via Wi-Fi
Fits on 1/2'', 3/4'', 1'' and 1 1/4'' pipes
Suitable for ball valves

Technical specifications

Place of use: Indoors

Product type: Ball valve actuator

Manufacturer part #: SY-4892444

Dim: (W x H x D) 70 x 145 x 60 mm

Operating voltage: 12 V DC

: Alexa
Google Home
Tuya

Data transfer (Smart Home): Wireless

Frequency: 2.4 GHz

Transfer Standard (Smart Home): Wi-Fi

Factory colour: Black

Mounting type: Valve

Width: 70 mm

Height: 145 mm

Depth: 60 mm

: 30 m

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2446222 Sygonix Wireless Ball valve actuator

Conformity certificate

Conformity certificate 2446222 Sygonix Wireless Ball valve actuator

Warranty Terms

Warranty Terms 2446222 Sygonix Wireless Ball valve actuator

Description

This product is an actuator with WLAN function for controlling ball valves. Mount the product on or next to a ball valve, you can then control it via the on/off button or in connection with the mobile app via WLAN. In the event of a power failure, the release mechanism allows you to control the ball valve in manual mode.

This text is machine translated.

Features

Countdown and schedule function
Clutch pull ring for manually opening or closing the valve
Supports Google Home and Amazon Alexa

Scope of delivery

Valve controller
Pipe clamp
Power adapter
User manual
