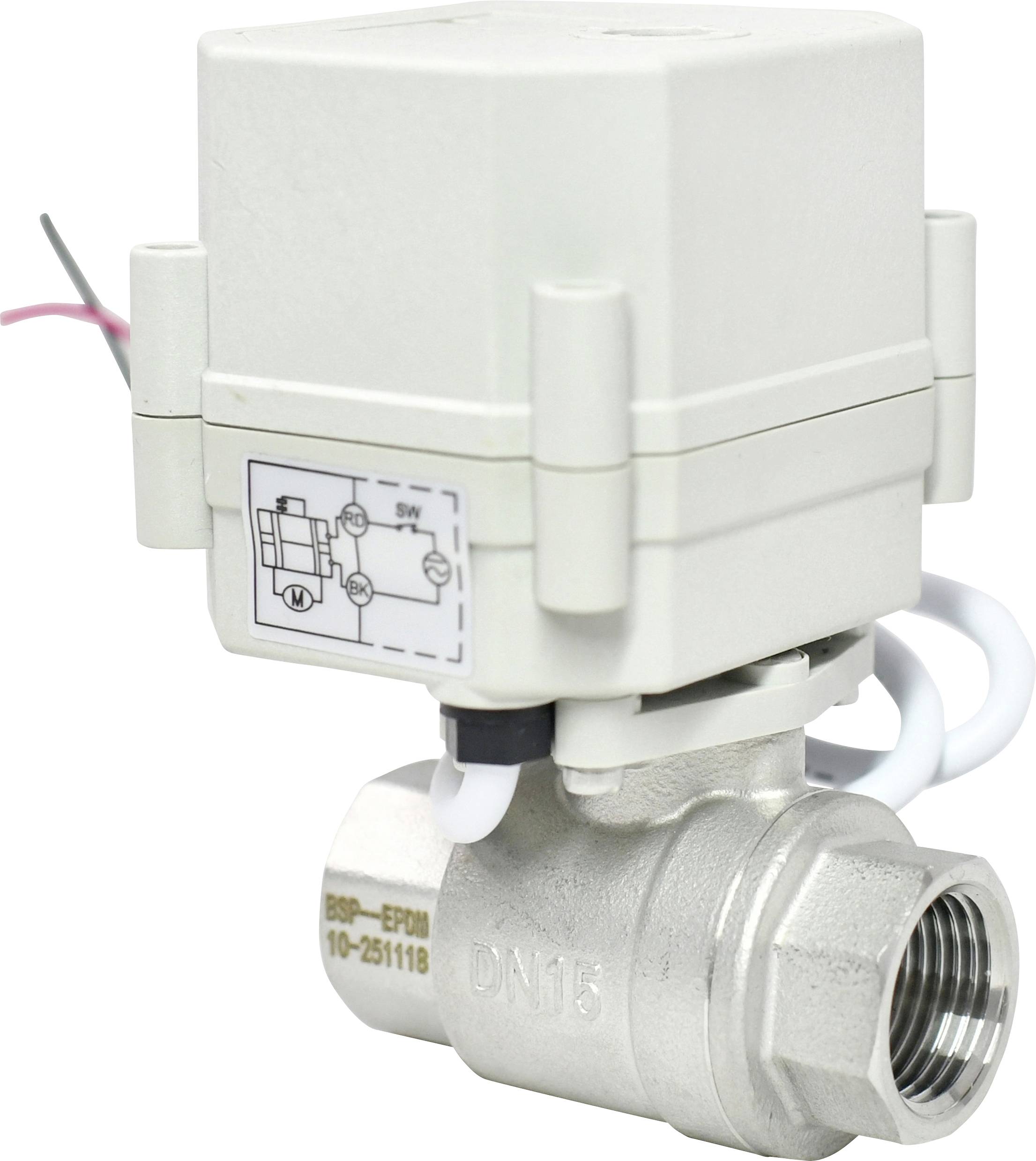

A motorized valve with electrical wiring, featuring a diagram on the side. Used for water flow control in plumbing systems.

A motorized valve with electrical wiring, featuring a diagram on the side. Used for water flow control in plumbing systems.

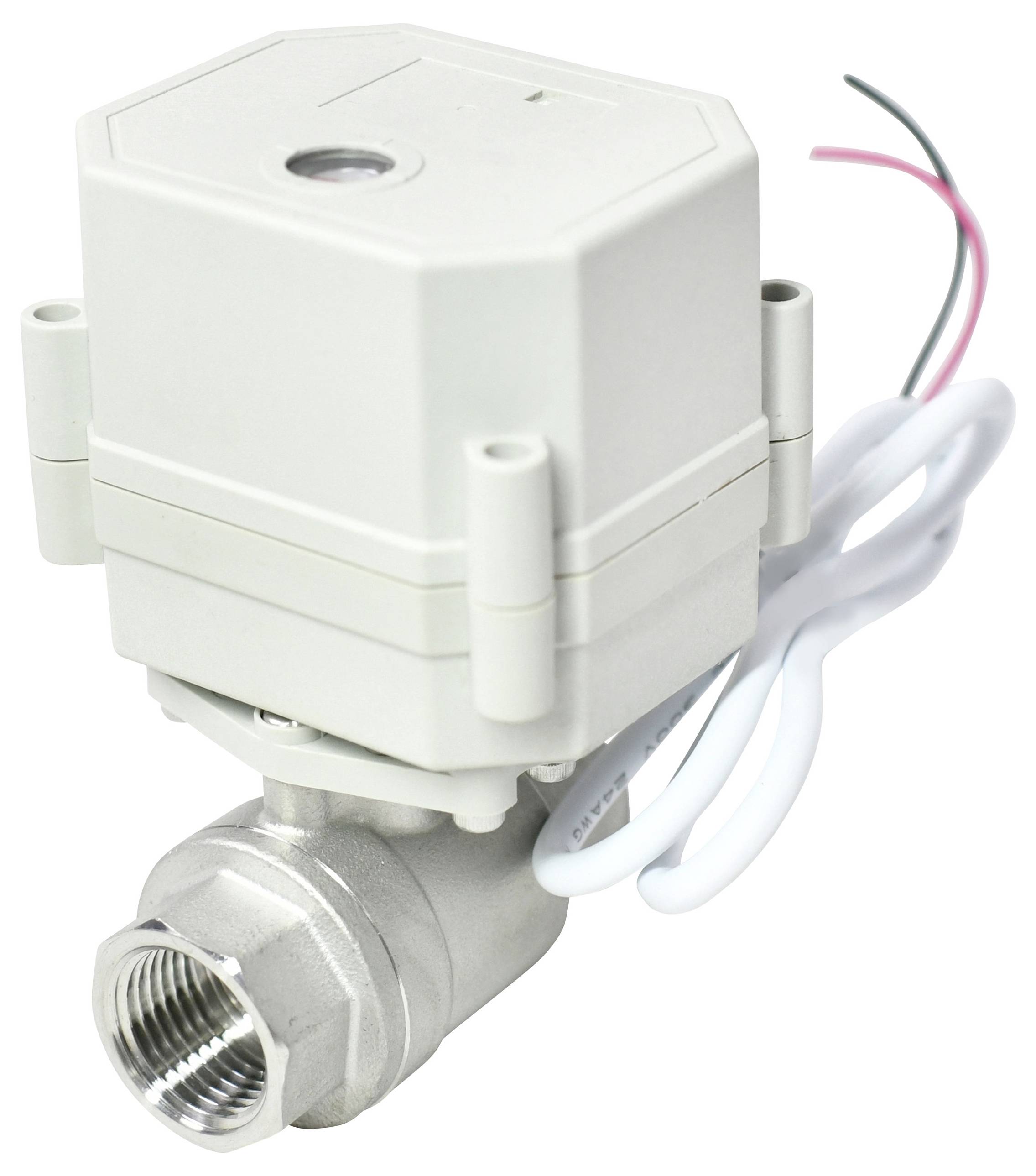

A motorized valve actuator with wires for connection, featuring a hexagonal metal body and a plastic casing, used in fluid control systems.

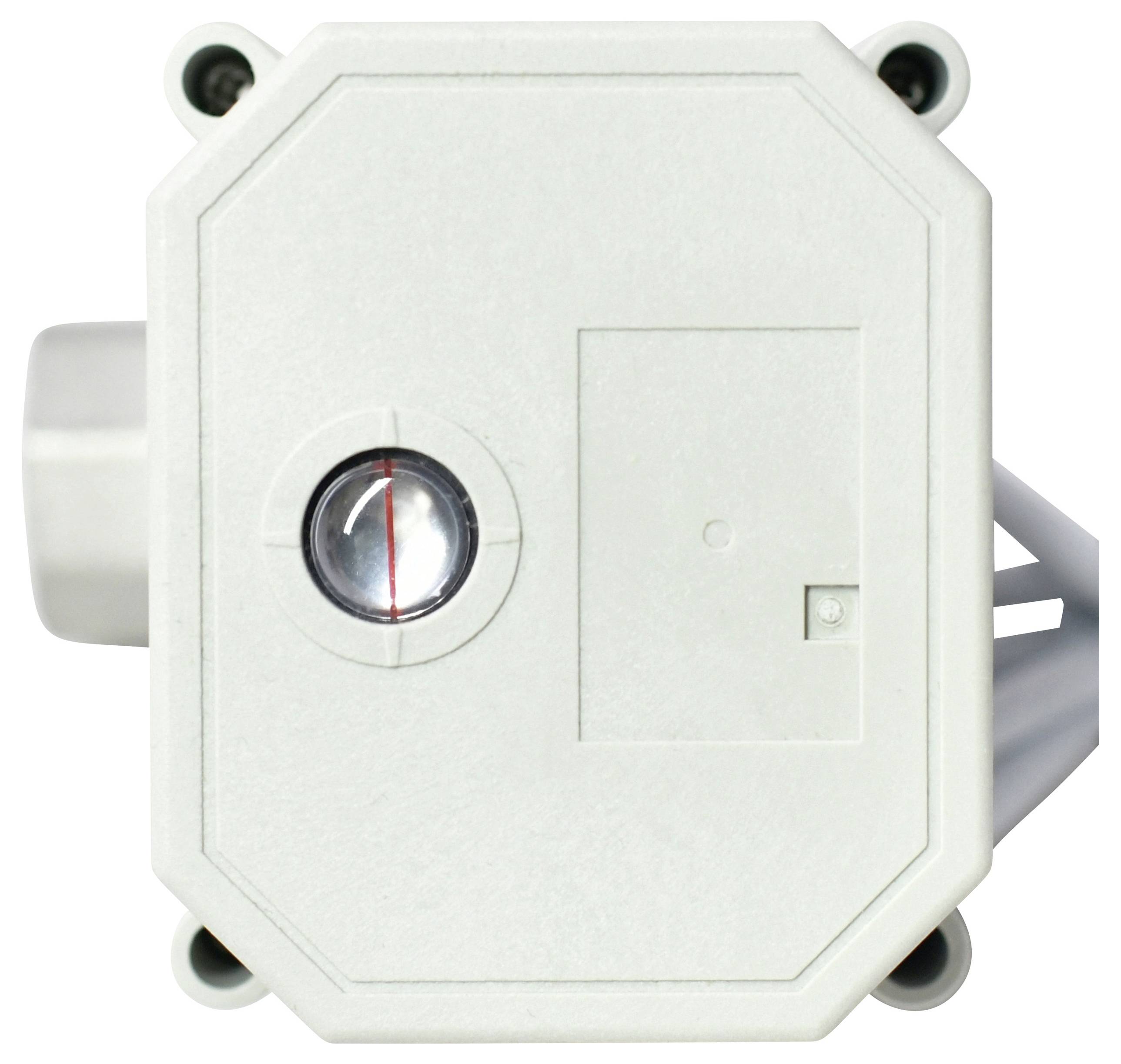

A close-up of a white, octagonal device, possibly an actuator, with a visible red line through a circular window on one side.

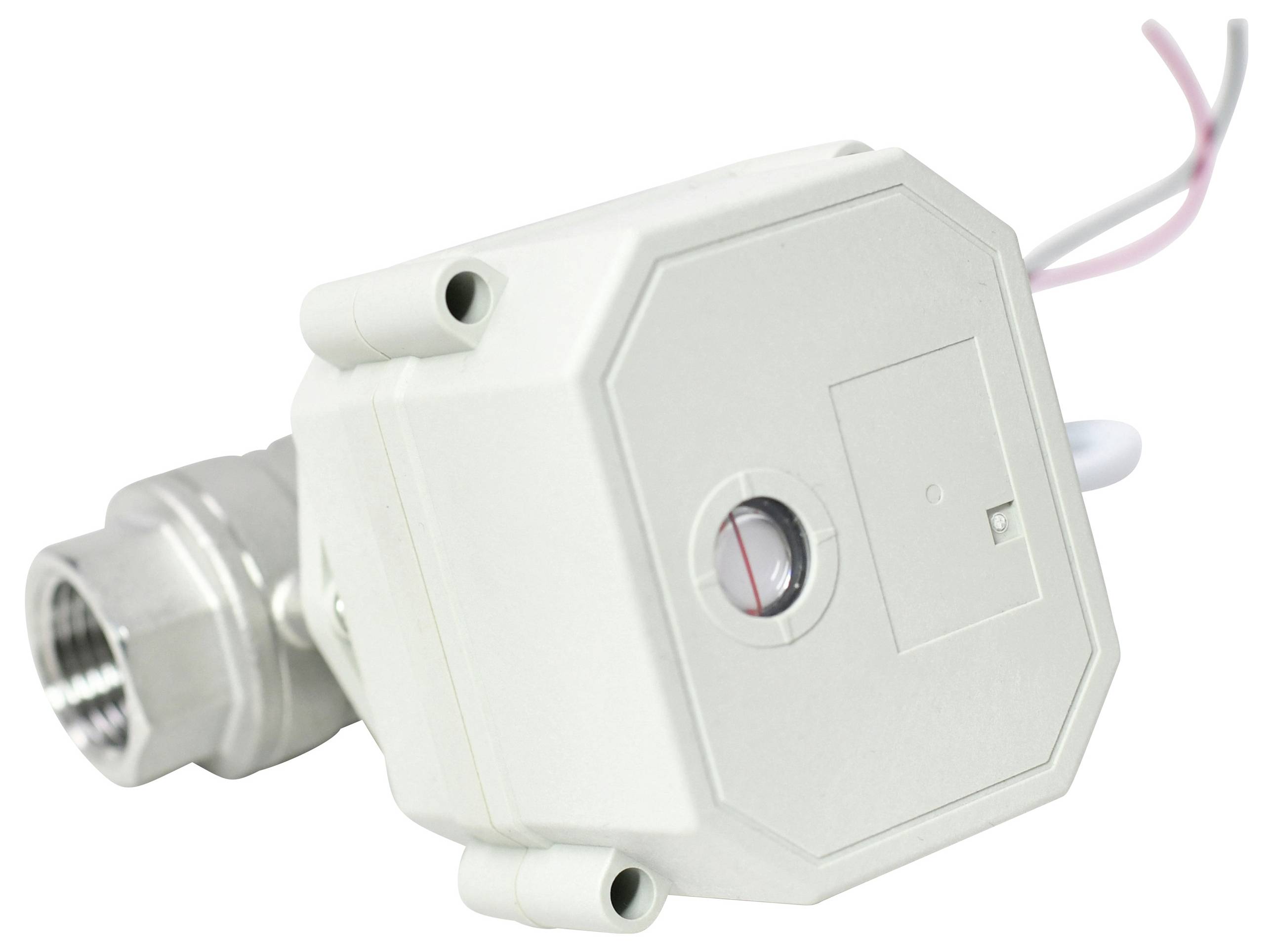

A white plastic motorized valve with wires connected, used for controlling fluid flow in HVAC or plumbing systems.

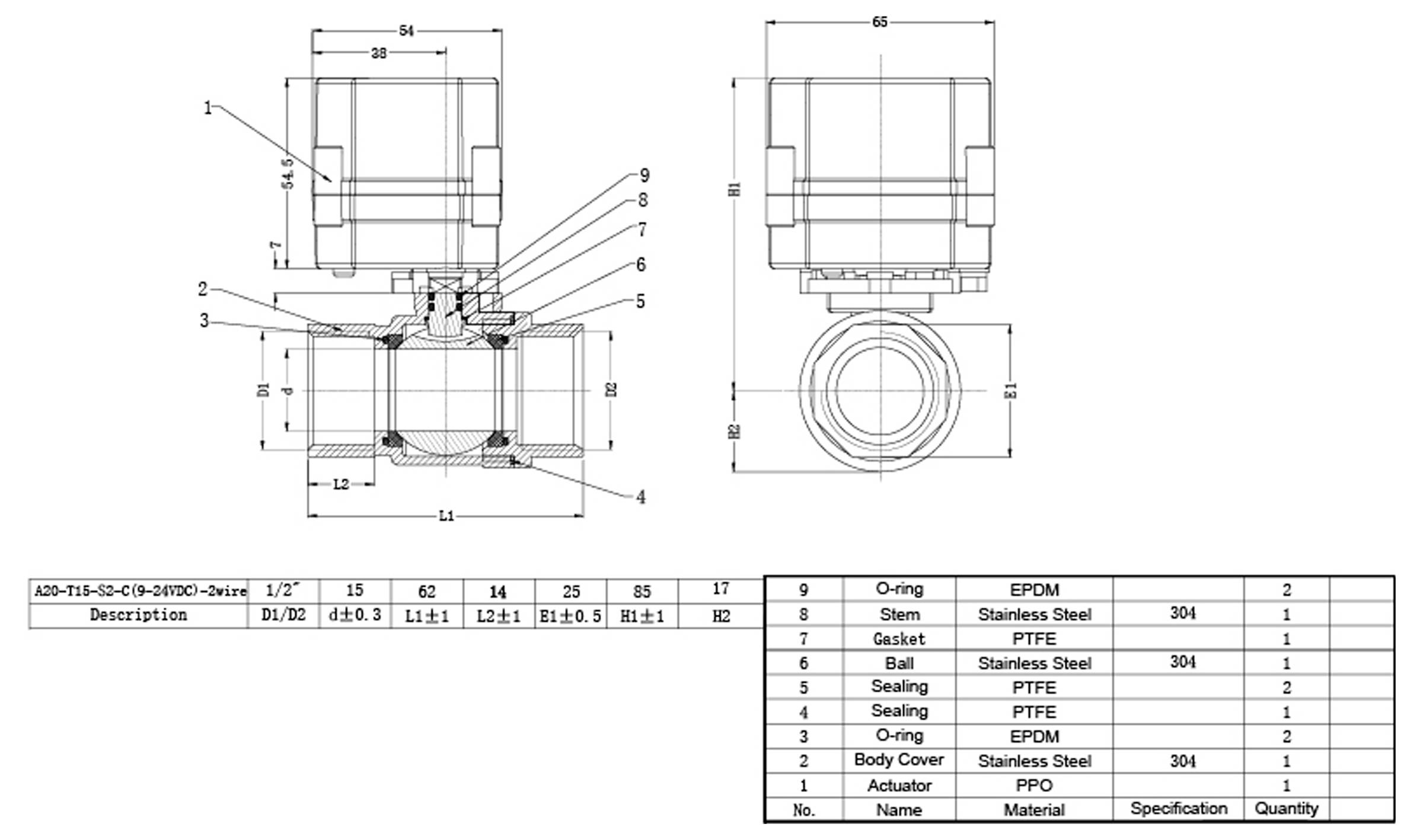

'Technical diagram of a ball valve assembly with labeled parts including stem, gasket, ball, sealing, and body cover; material specifications listed in table.'

1/5

TRU COMPONENTS

Our service for you

Datasheet (PDF)

English

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€ 75.62

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Stainless steel ball valve Failsafe 1/2" 9-24 V/DC 10bar

Valve size: DN15
Port size: 1/2" BSP
Operating voltage: 9 - 24 V DC
IP67

Technical specifications

DN15
Port size: 1/2" BSP
Normally close
Actuator material: PRO
Sealing material: EPDM & PTFE
Cable length: 0.5 m
Protection class: IP67

Operating medium: Air
Fluids

Product type: Ball valve (failsafe)

Type: 1/2" (DN15), 9 - 24 VDC

Operating temperature: -15 up to 50 °C

Min. operating temperature: -15 °C

Max. operating temperature: 50 °C

Manufacturer part #: TC-14212908

Material (details): Stainless steel

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air
Fluids

Operating voltage: 9 V DC
24 V DC

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 3553227 TRU COMPONENTS TC-A20-T15-S2-C Ball valve (failsafe) 0 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3553227 TRU COMPONENTS TC-A20-T15-S2-C Ball valve (failsafe) 0 up to 10 bar
