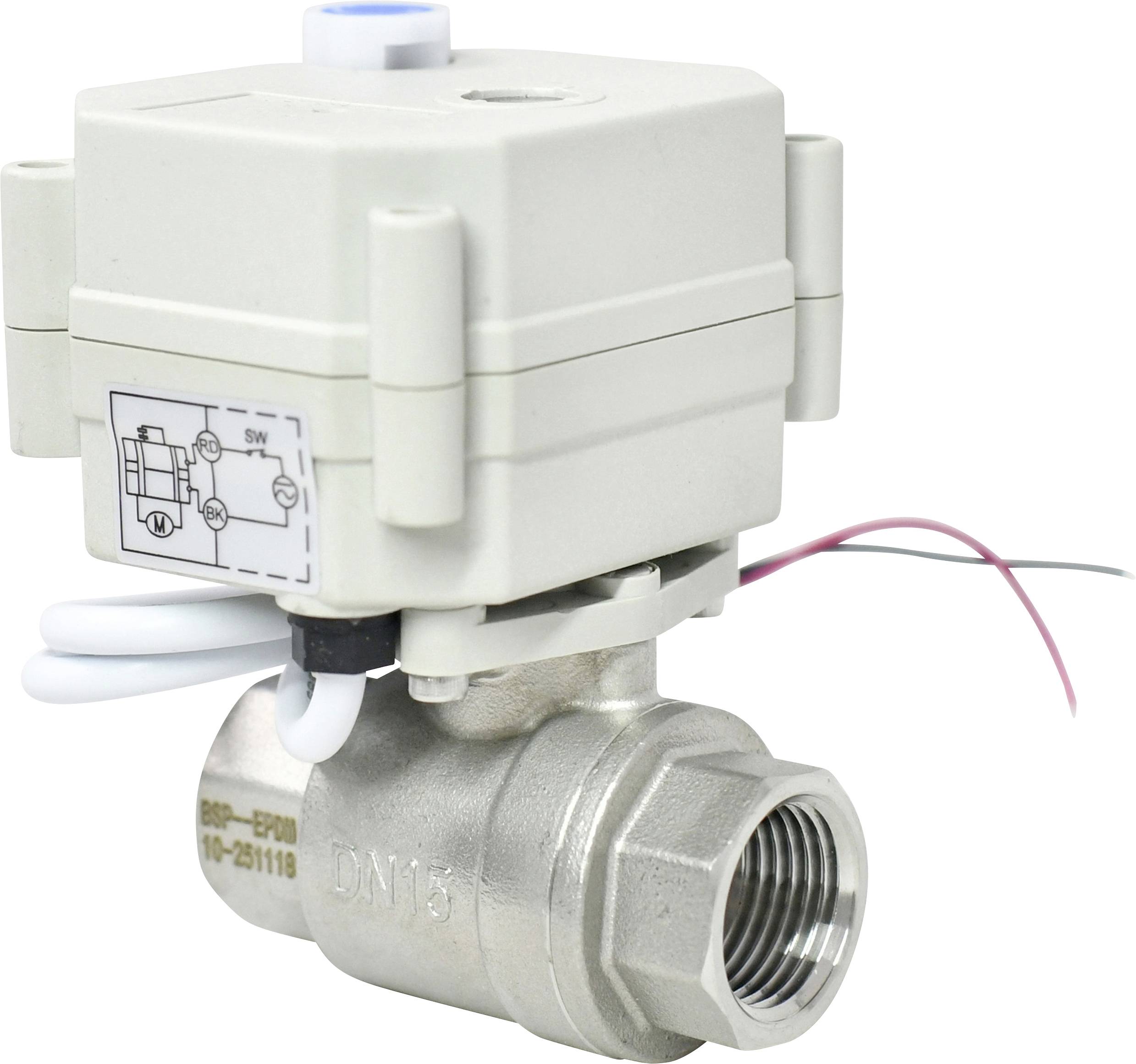

'Motorized ball valve featuring a compact actuator on top of a metal valve body, used for controlling the flow of fluids.'

'Motorized ball valve featuring a compact actuator on top of a metal valve body, used for controlling the flow of fluids.'

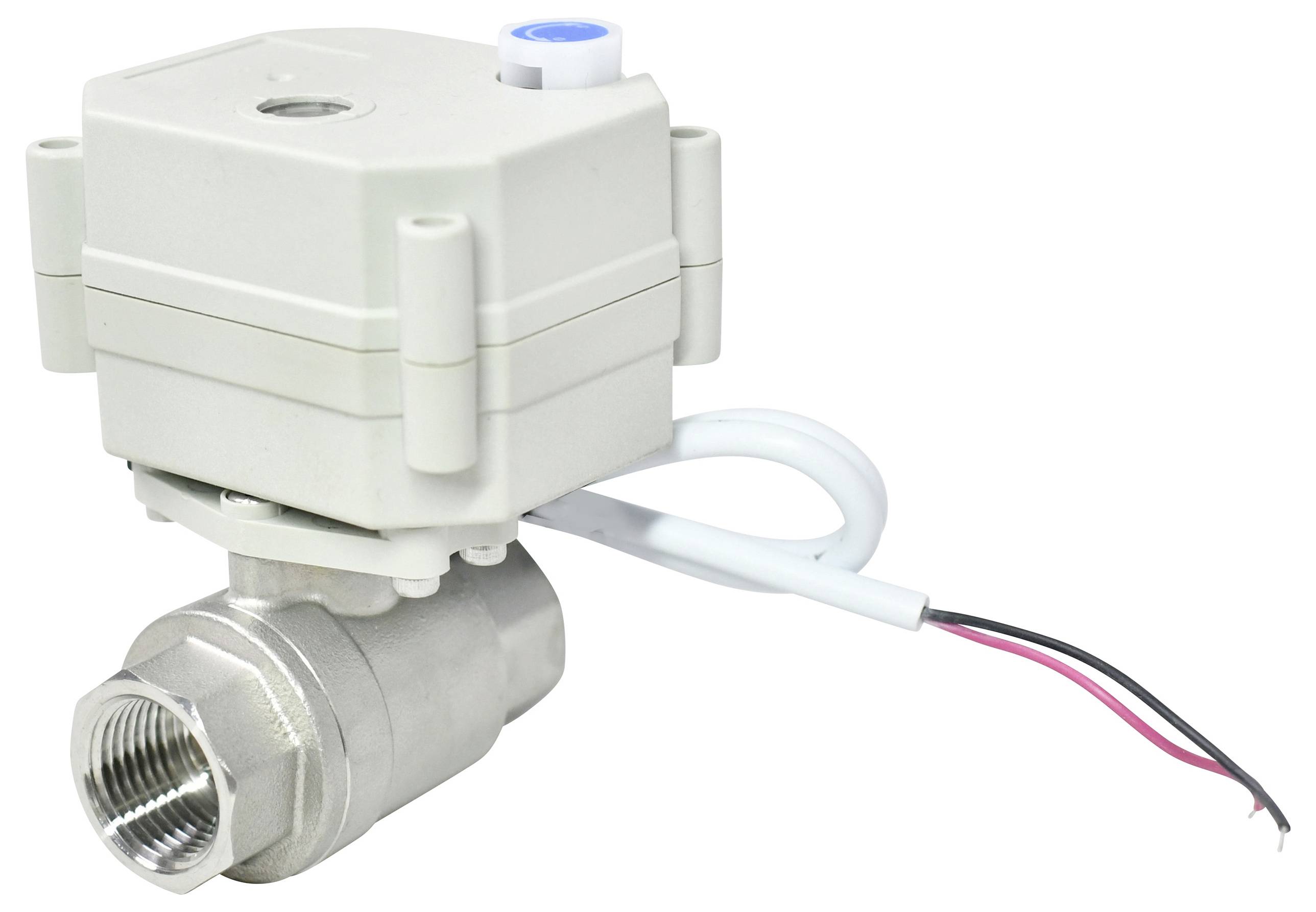

A white electric ball valve with metal fittings and two attached wires, used for controlling fluid flow.

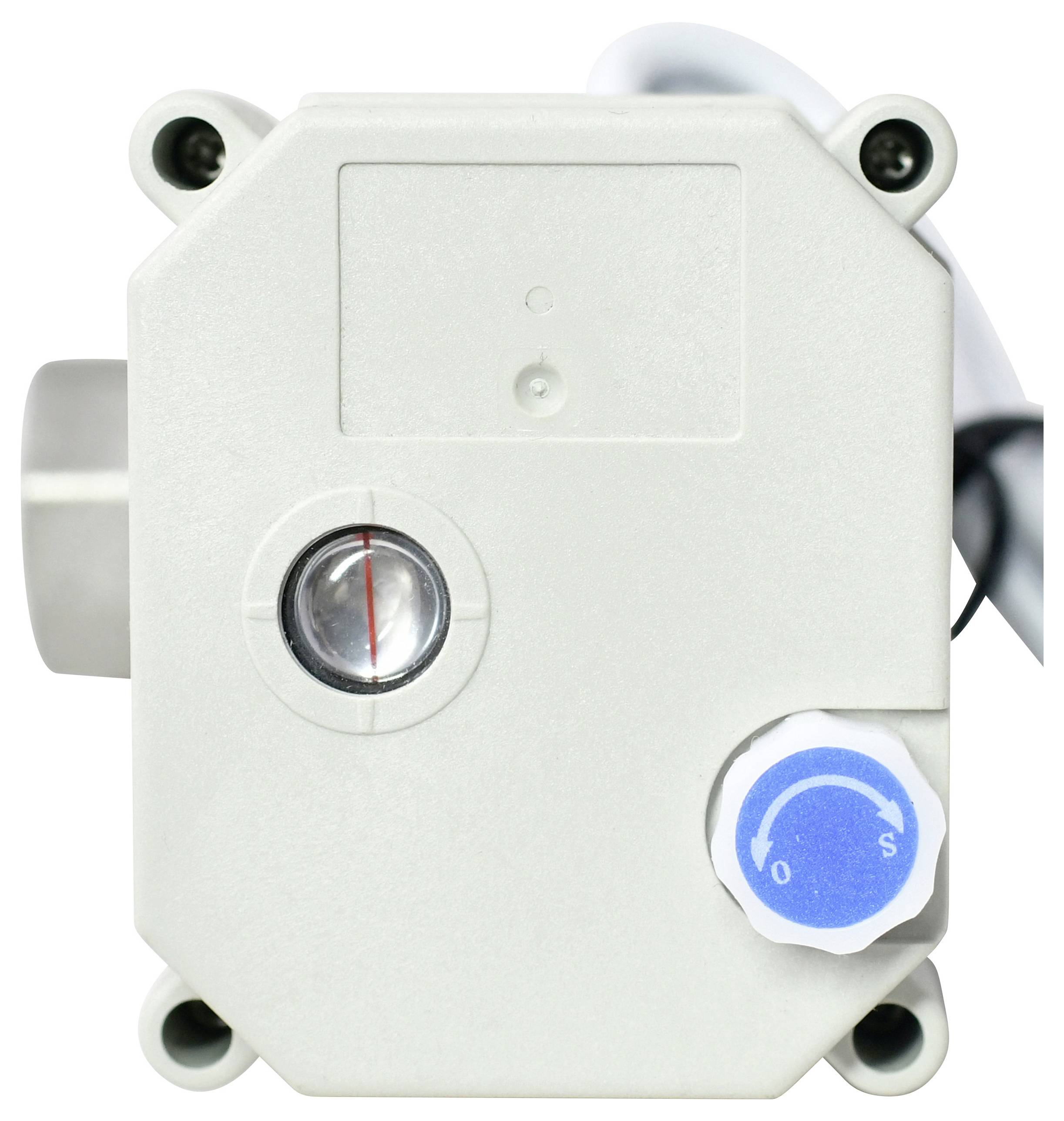

'A white electrical device with a switch indicating on (O) and off (S) positions, featuring a blue circular direction marker.'

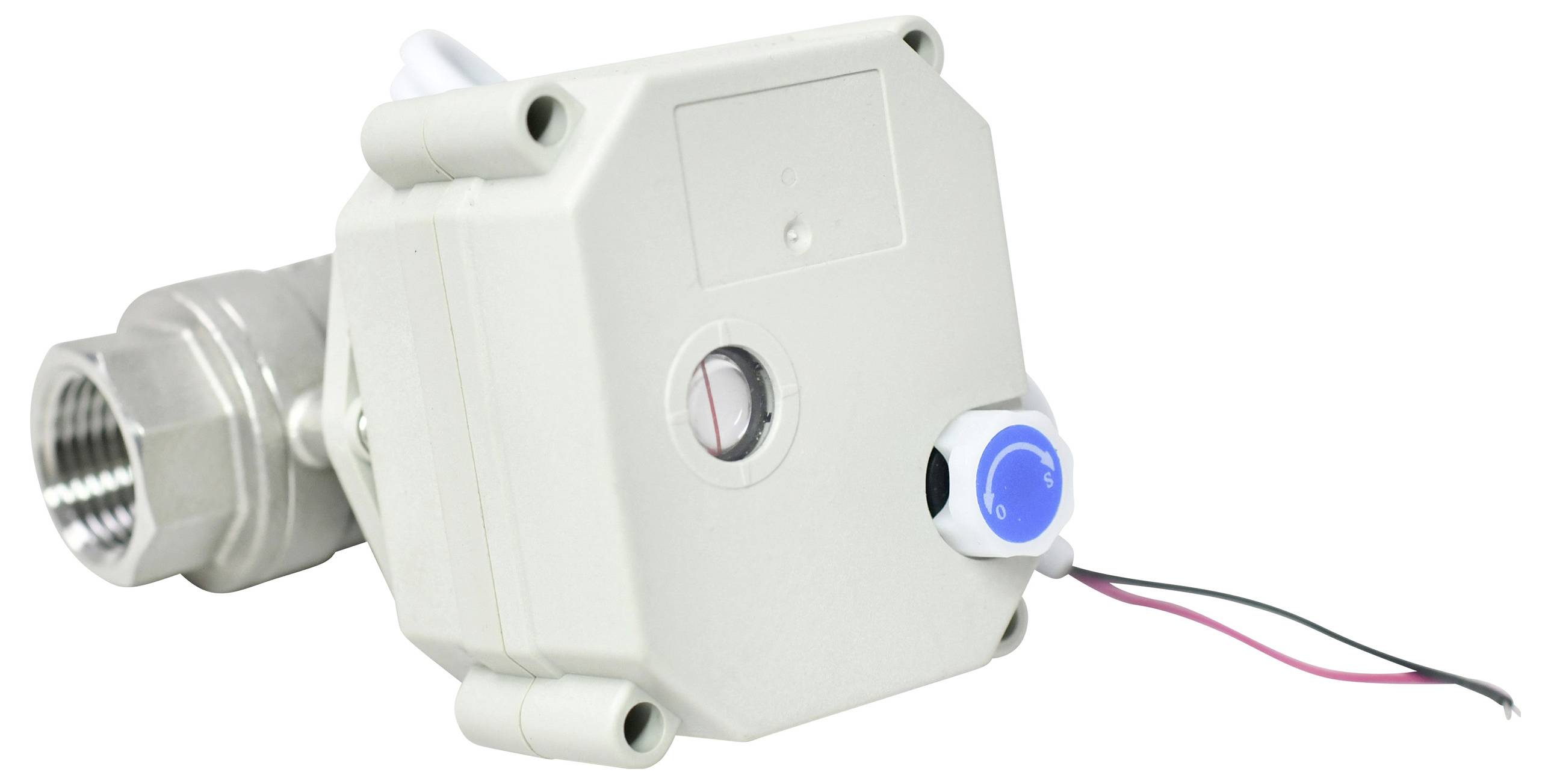

'A valve actuator with a metal casing, wiring, and a blue adjustment knob, used for controlling fluid flow in industrial applications.'

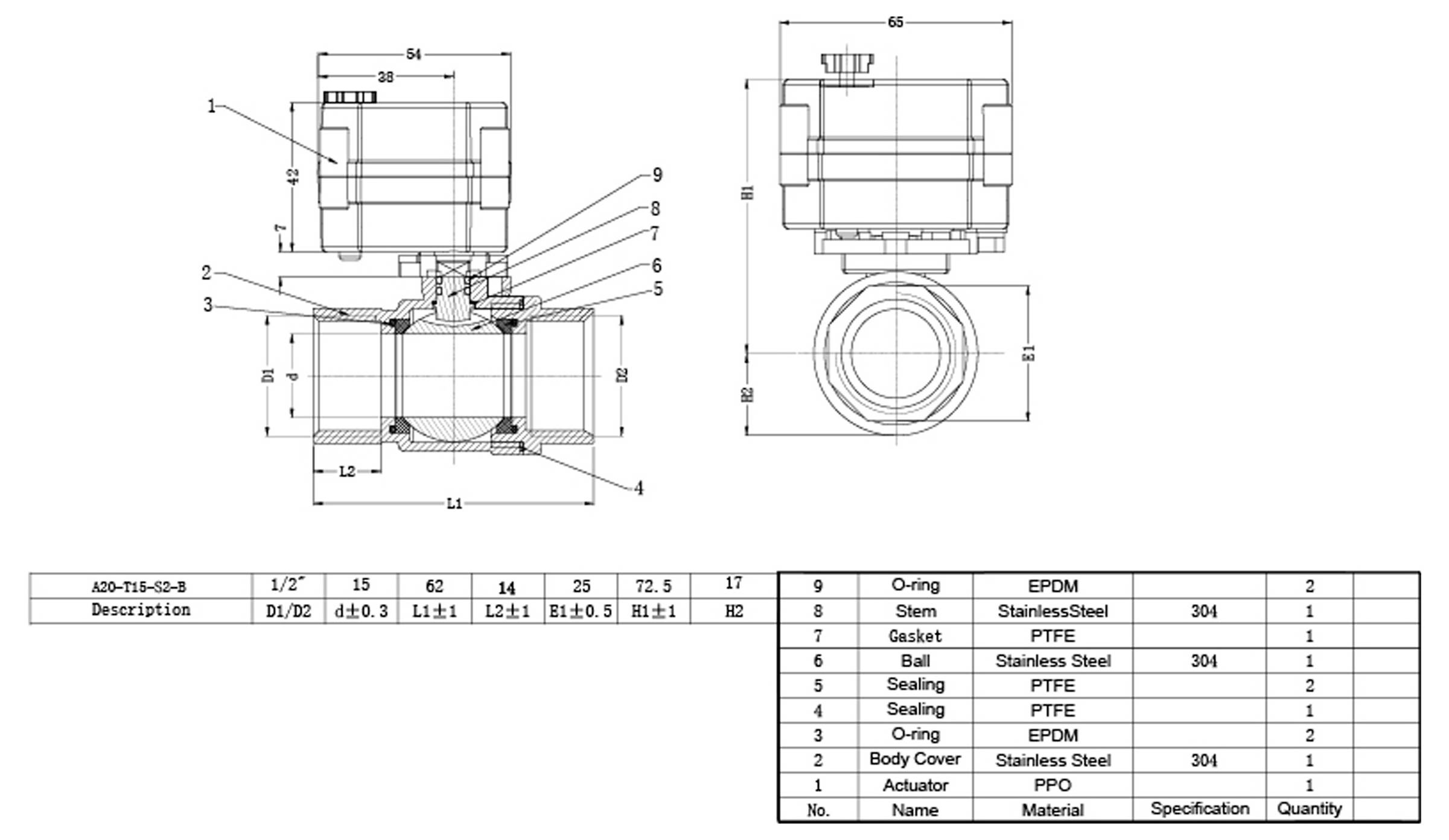

'Valve assembly technical drawing with dimensions, labeled components, and material specifications chart. Main parts: O-ring, stem, ball, sealing, and body cover.'

1/5

TRU COMPONENTS

Our service for you

Datasheet (PDF)

English

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 75.62 / piece)

€ 75.62

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Stainless steel ball valve Failsafe 1/2" 9-24V/DC 10bar MO

Valve size: DN15
Port size: 1/2" BSP
Operating voltage: 9 - 24 V DC
Manual override
IP67

Technical specifications

Valve size: DN15
Port size: 1/2" BSP
Normally close
Actuator material: PRO
Sealing material: EPDM & PTFE
Cable length: 0.5 m
Protection class: IP67
Manual override

Operating medium: Air
Fluids

Product type: Ball valve (failsafe)

Type: DN15, 9 - 24 VDC, Manual override

Operating temperature: -15 up to 50 °C

Min. operating temperature: -15 °C

Max. operating temperature: 50 °C

Manufacturer part #: TC-14212912

Material (details): Stainless steel

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air
Fluids

Operating voltage: 9 V DC
24 V DC

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 3553228 TRU COMPONENTS TC-A20-T15-S2-B Ball valve (failsafe) 0 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3553228 TRU COMPONENTS TC-A20-T15-S2-B Ball valve (failsafe) 0 up to 10 bar
