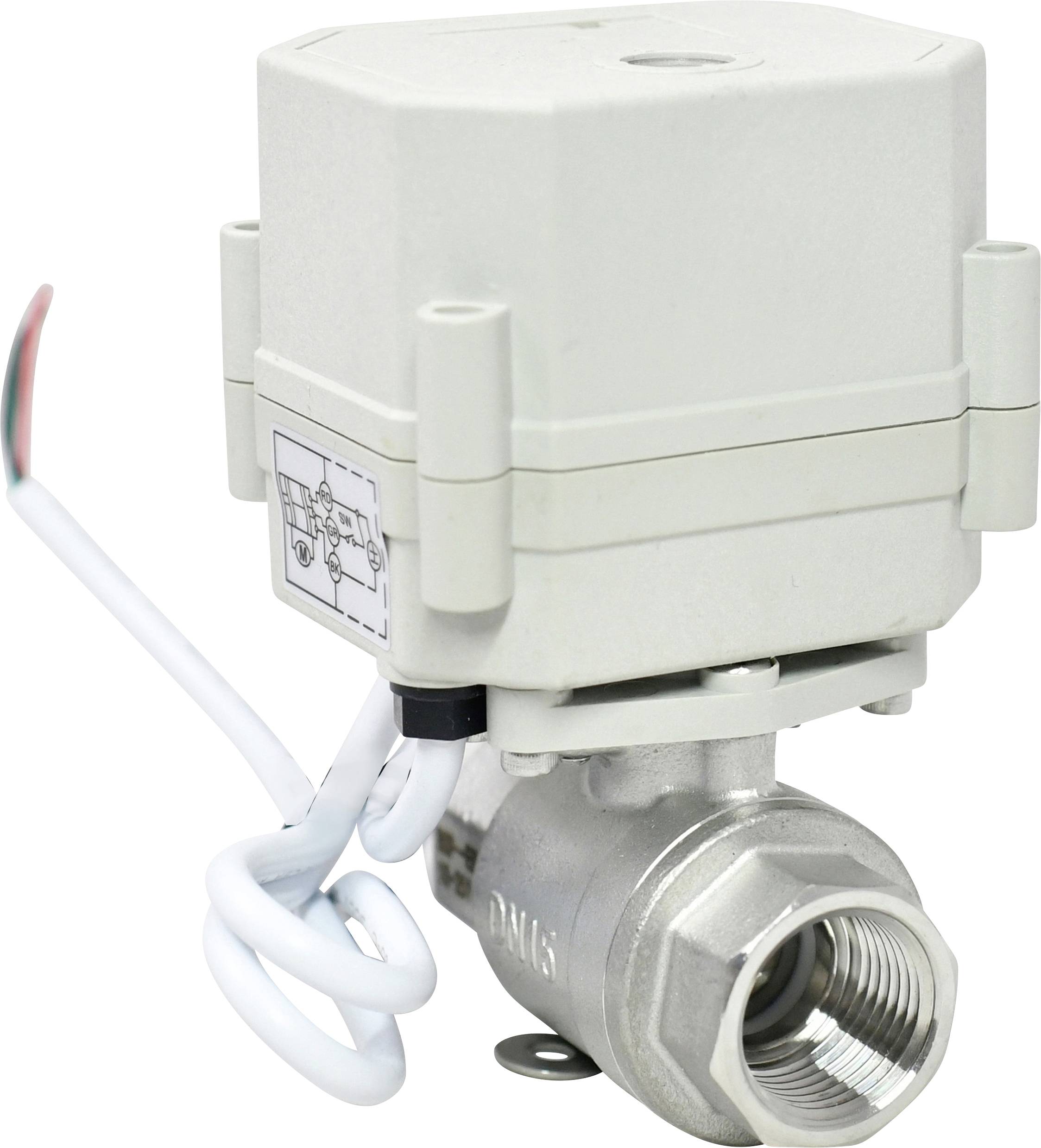

'Motorized ball valve with actuator and wiring, featuring a metal body and detailed circuitry diagram on the side.'

'Motorized ball valve with actuator and wiring, featuring a metal body and detailed circuitry diagram on the side.'

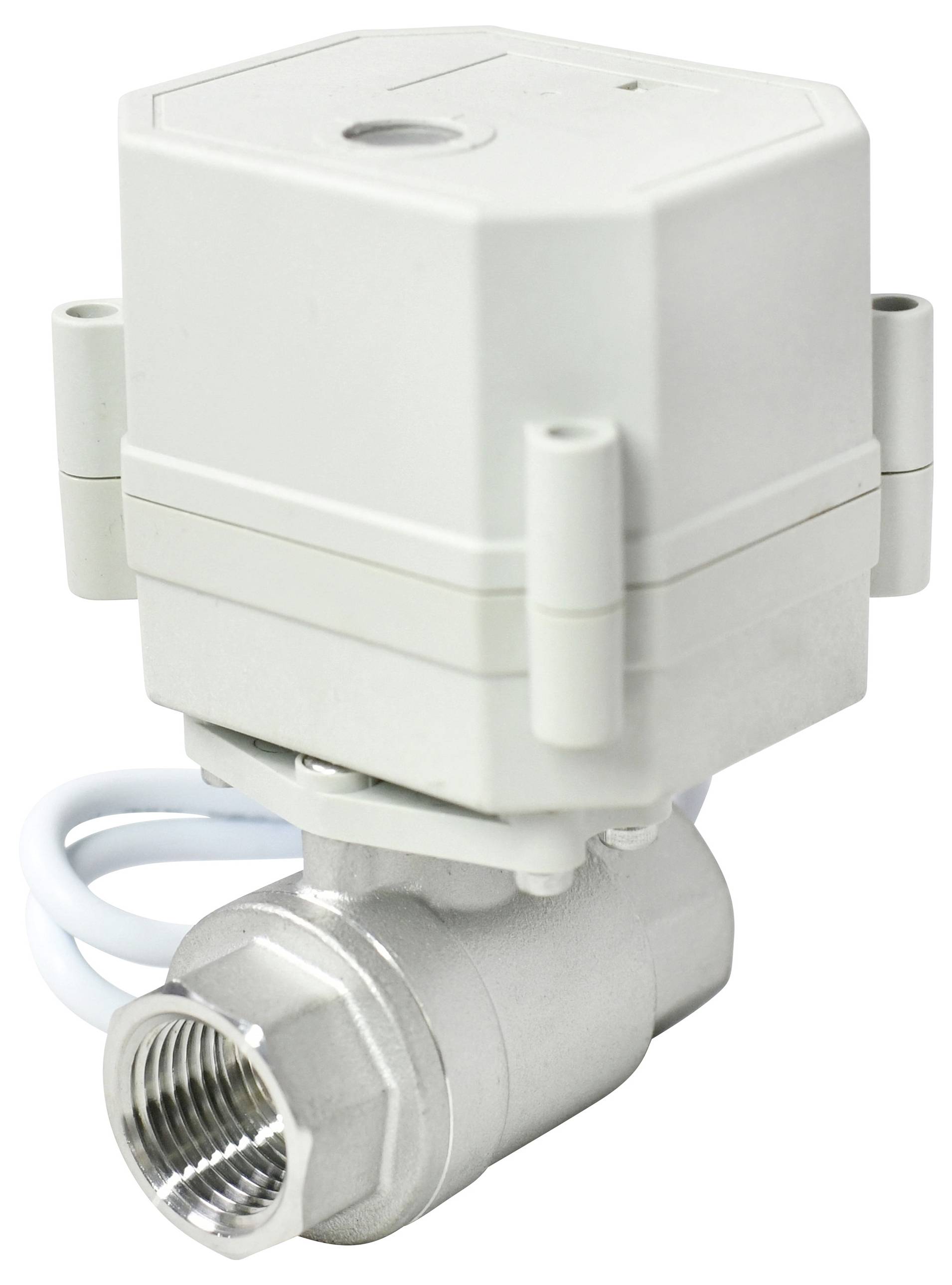

A white automated valve with a metal base and wiring attachment, likely used in plumbing or fluid control systems.

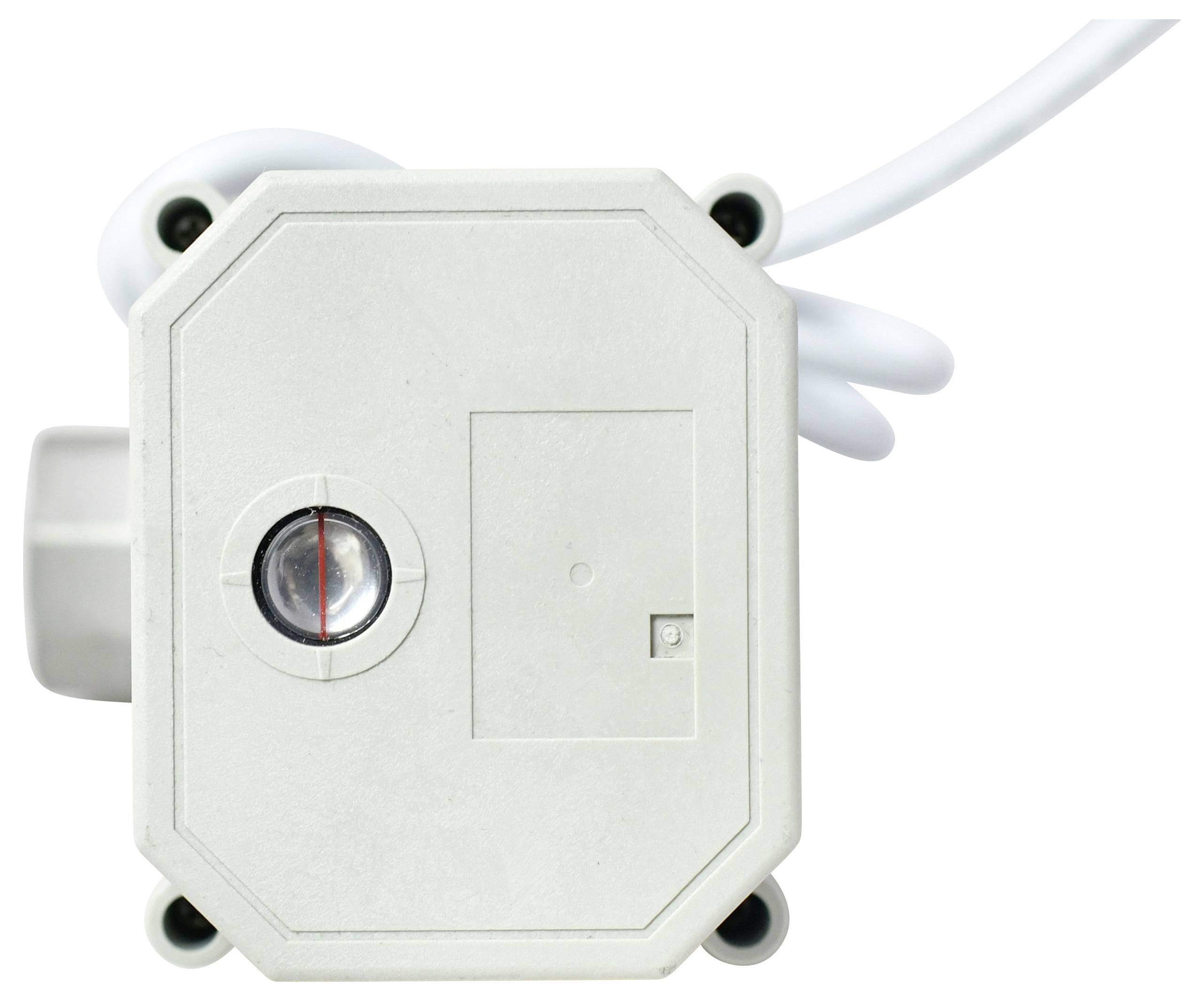

'A light grey electrical device with a round red-tipped indicator on a box-style casing, attached to a white coiled cord.'

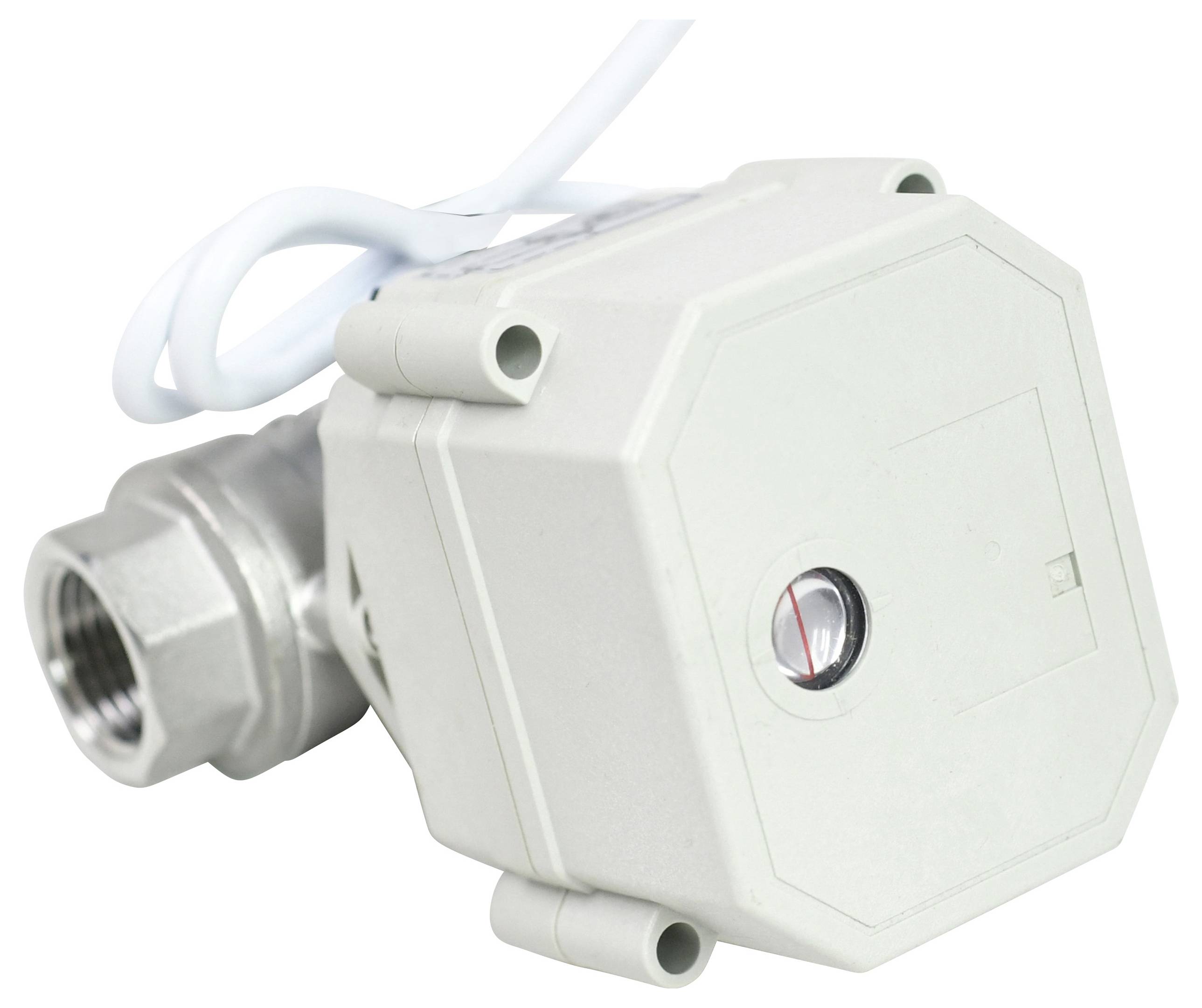

'A white plastic water flow sensor with a threaded metal connection and attached cable, used for monitoring fluid flow in piping systems.'

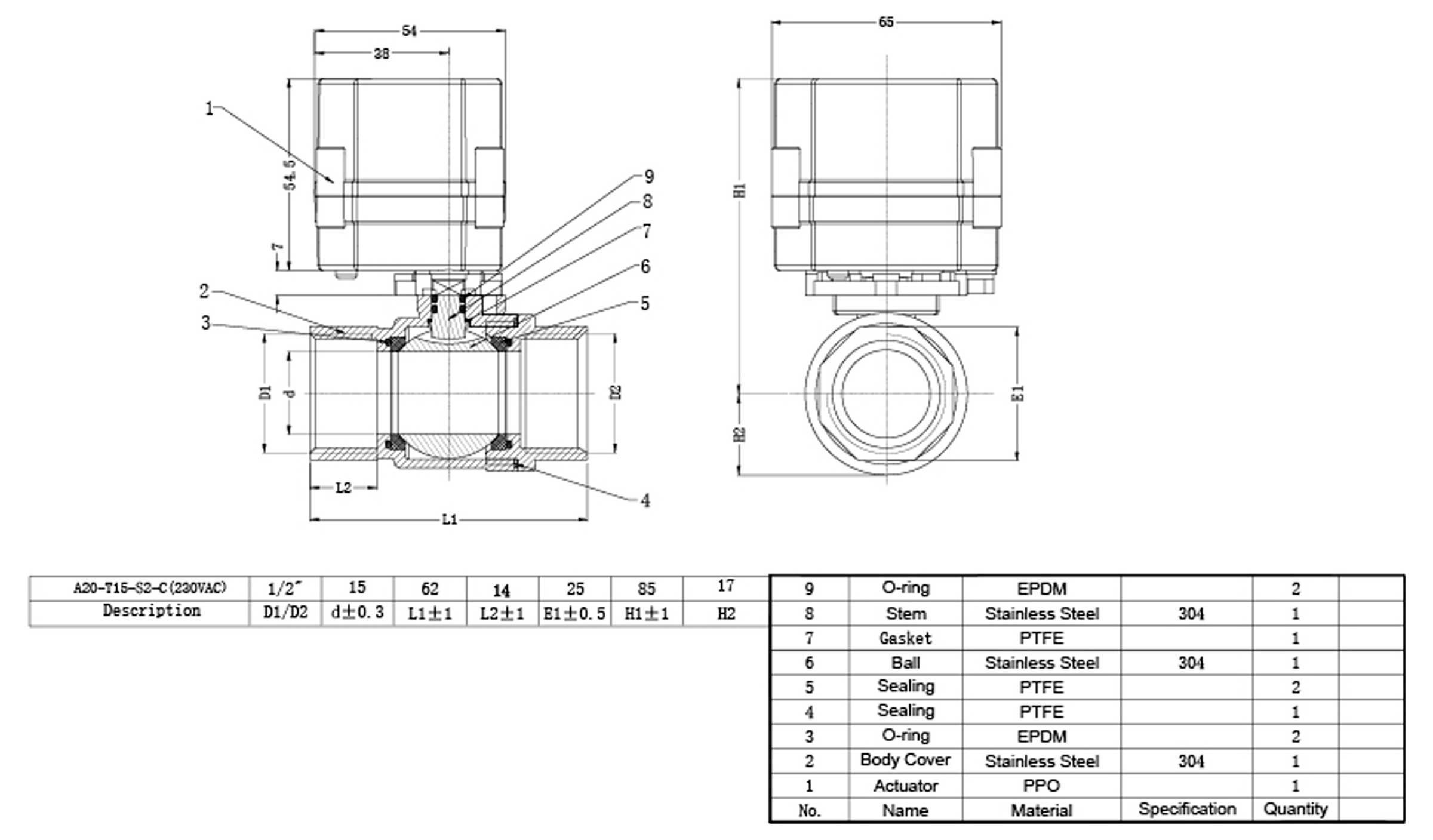

'Technical drawing of ball valve assembly with dimensions and parts list. Exploded view shows components: O-ring, stem, gasket, ball, sealing, body cover, actuator. Parts labeled 1-8.'

1/5

TRU COMPONENTS

Our service for you

Datasheet (PDF)

English

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Stainless steel ball valve bistable 1/2" 230V/AC 10bar

Valve size: DN15
Port size: 1/2" BSP
Operating voltage: 230 V AC
IP67

Technical specifications

DN15
Port size: 1/2" BSP
Normally close
Actuator material: PRO
Sealing material: EPDM & PTFE
Cable length: 0.5 m
Protection class: IP67

Operating medium: Air, Fluids

Product type: Ball valve (bistable)

Type: 1/2" (DN15), 230 V AC

Operating temperature: -15 up to 50 °C

Min. operating temperature: -15 °C

Max. operating temperature: 50 °C

Manufacturer part #: TC-14212936

Material (details): Stainless steel

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air
Fluids

Operating voltage: 230 V AC

Plastic free packaging: Plastic-free packaging
