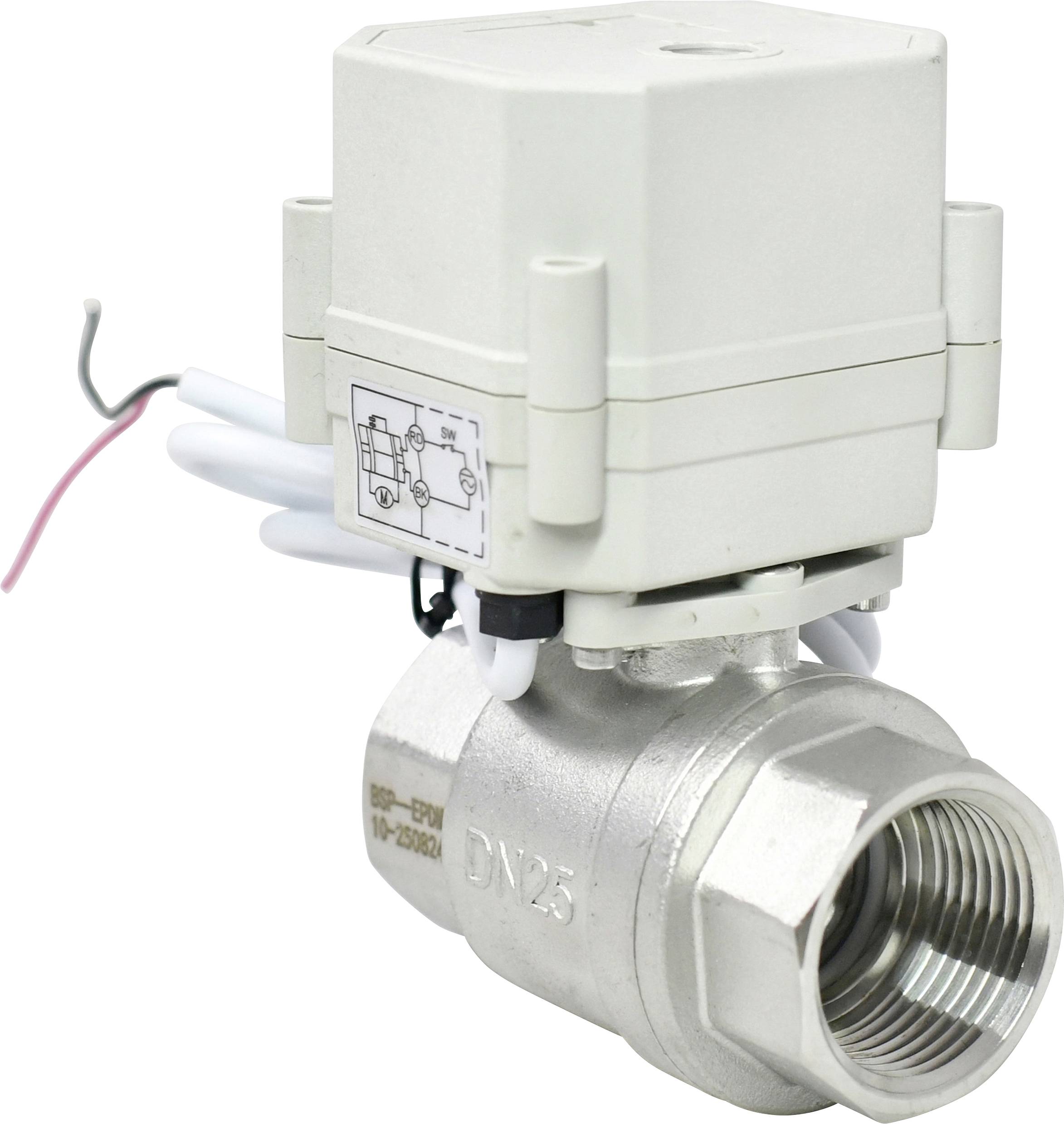

'Motorized ball valve DN25' showing a metal valve with electrical wires and a wiring diagram, used for controlling liquid flow.

'Motorized ball valve DN25' showing a metal valve with electrical wires and a wiring diagram, used for controlling liquid flow.

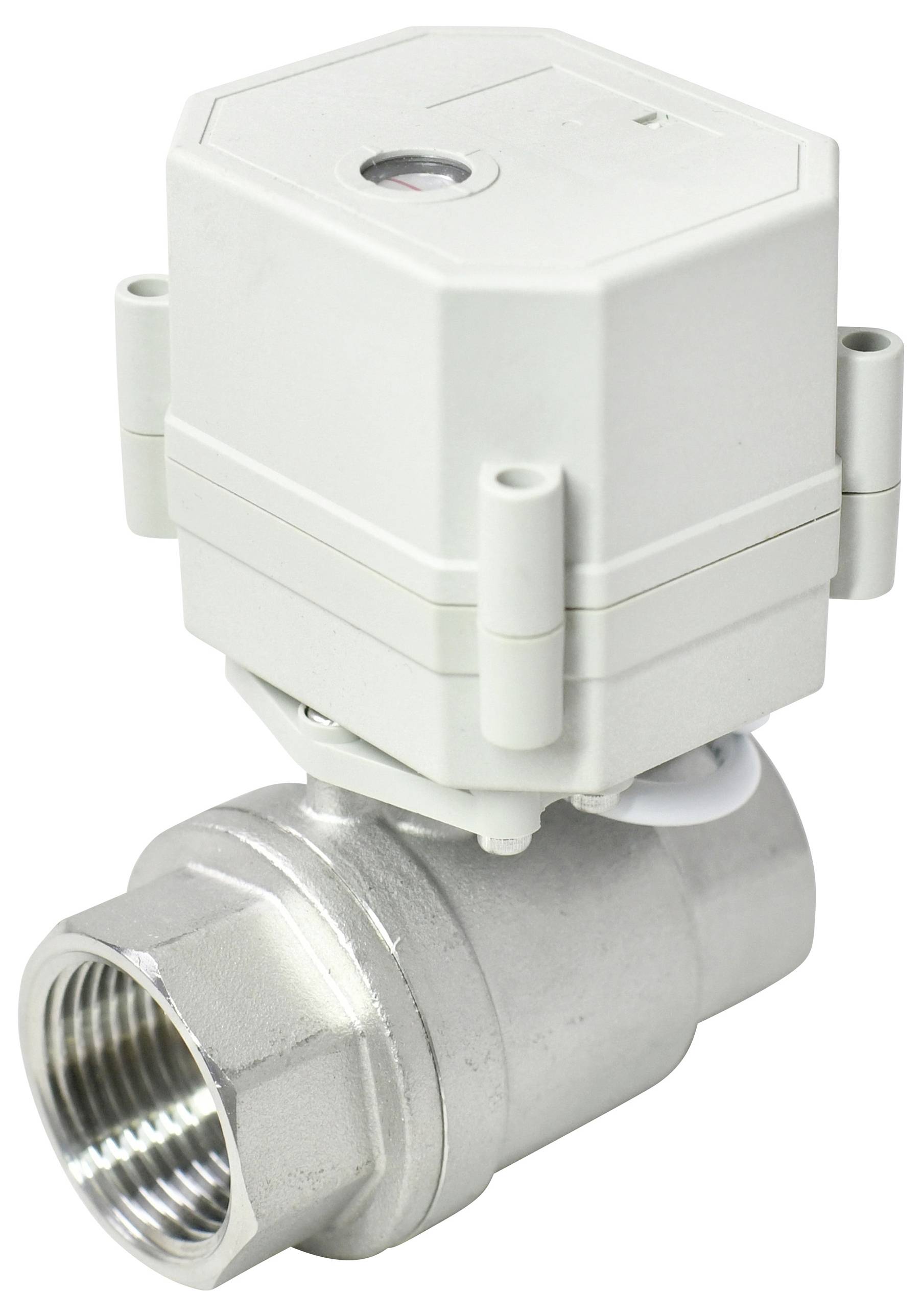

A motorized valve with a white actuator mounted on a silver metal body, used to control the flow of liquids or gases in piping systems.

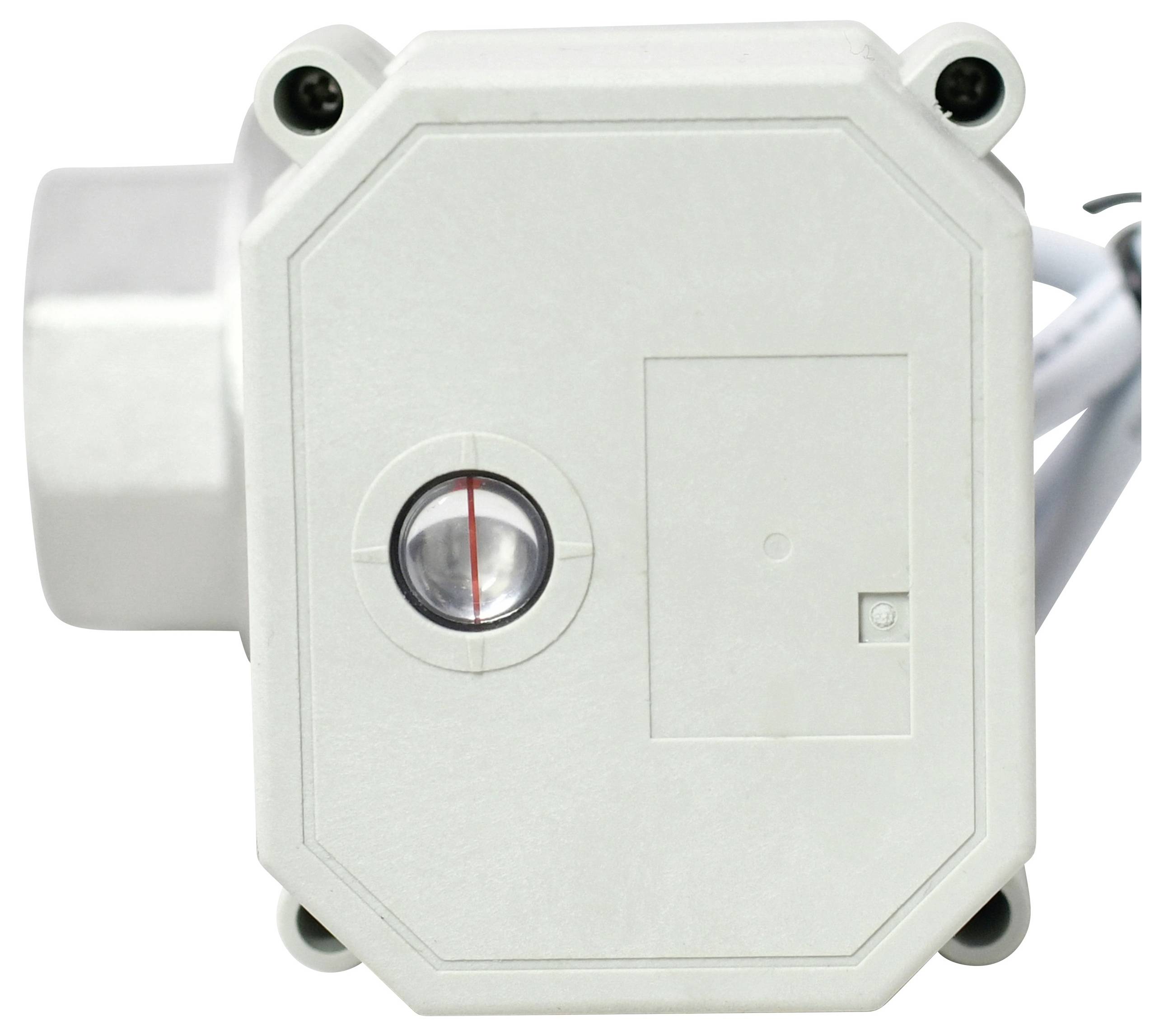

A white electrical enclosure box with a clear circular window displaying an internal component. Four screws secure the corners.

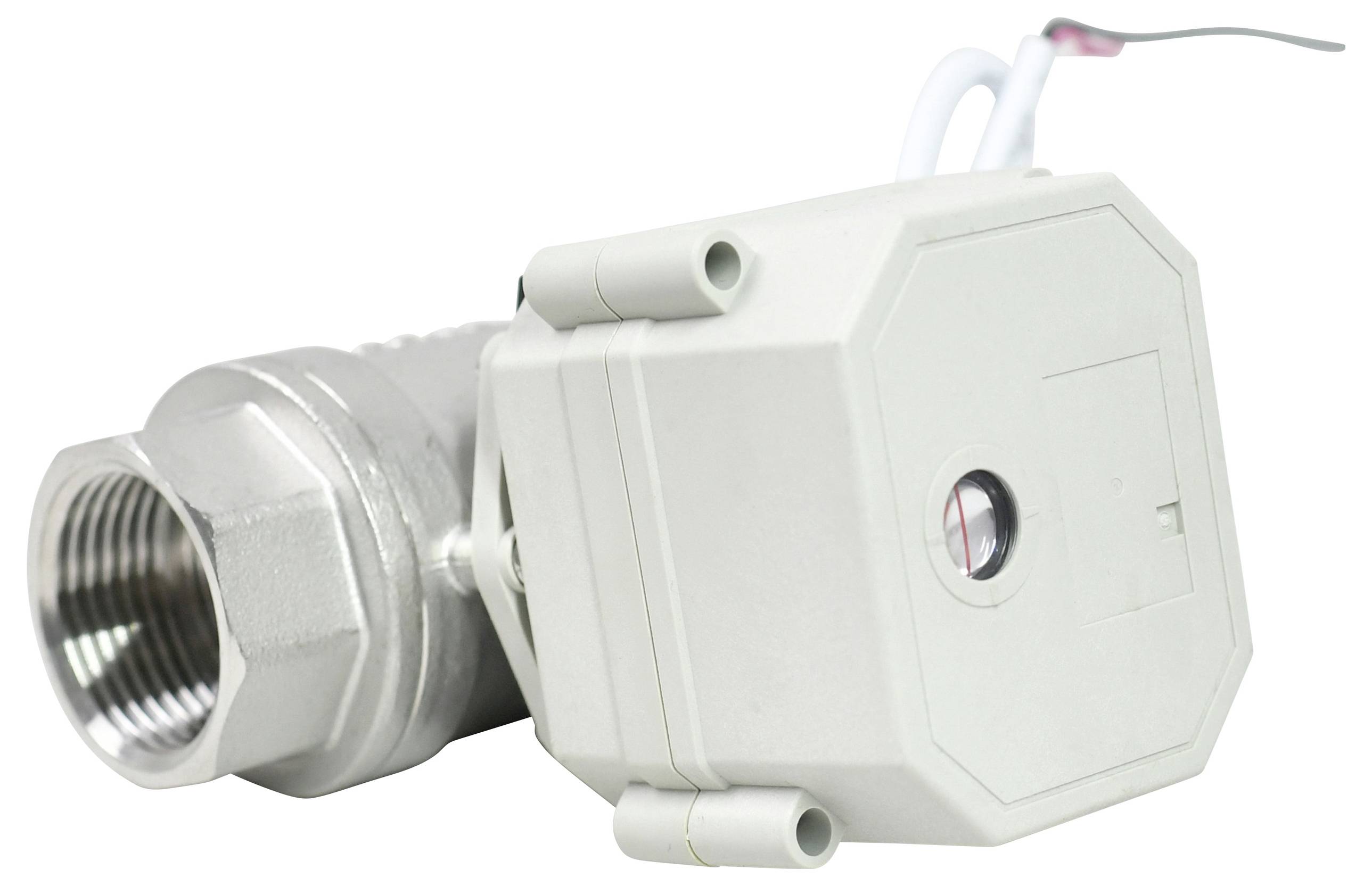

A metal water valve with attached white electrical components, wires extending, likely used for automated control of water flow.

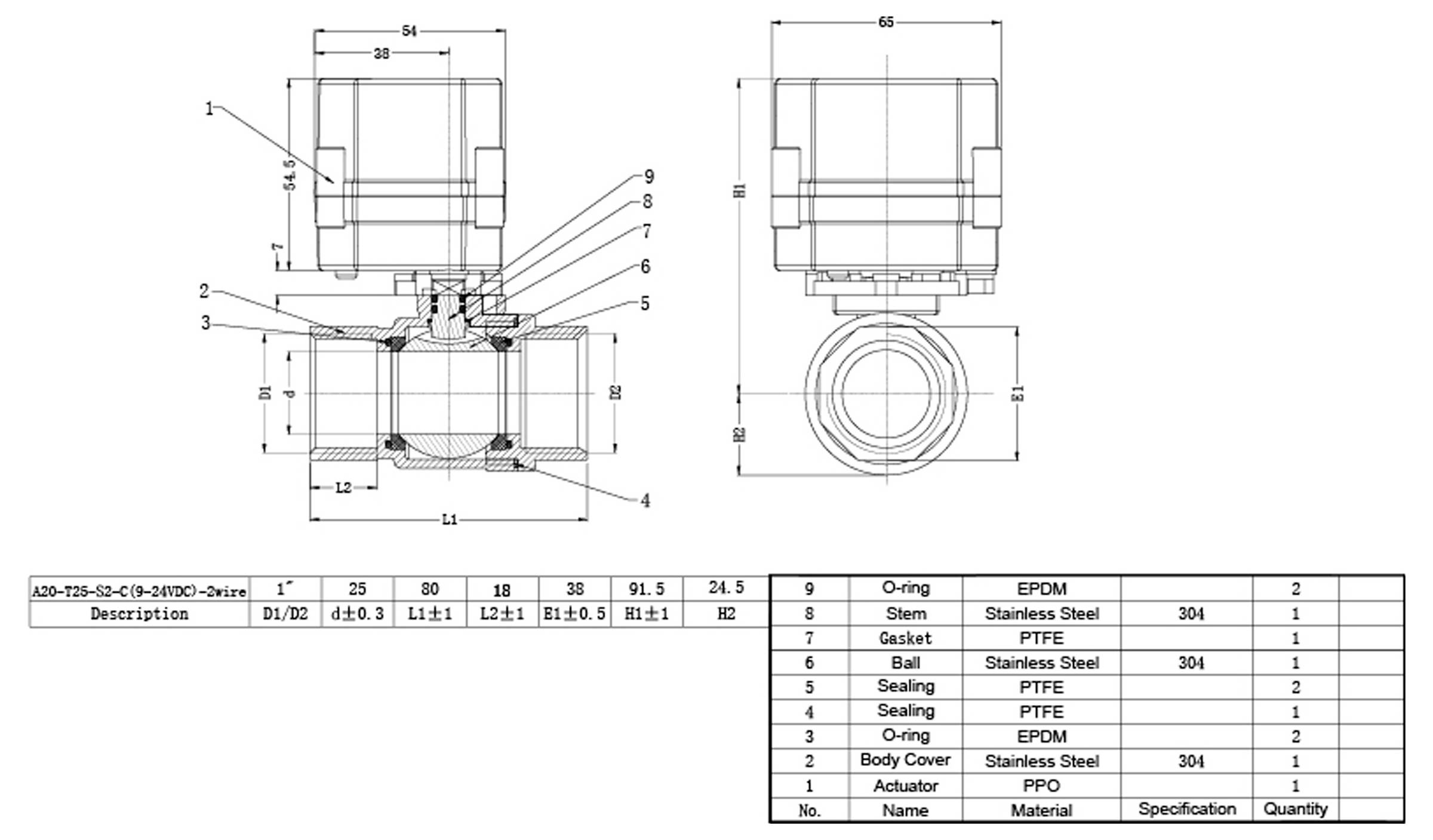

'Technical diagram of a valve with two views and labeled parts. Includes a table detailing component materials: EPDM, PTFE, and steel.'

1/5

TRU COMPONENTS

Our service for you

Datasheet (PDF)

English

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 117.64 / piece)

€ 117.64

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Stainless steel ball valve Failsafe 1" 9-24V/DC 10bar

Valve size: DN25
Port size: 1" BSP
Operating voltage: 9 - 24 V DC
IP67

Technical specifications

DN25
Port size: 1" BSP
Normally close
Actuator material: PRO
Sealing material: EPDM & PTFE
Cable length: 0.5 m
Protection class: IP67

Operating medium: Air, Fluids

Product type: Ball valve (failsafe)

Type: 1" (DN25), 9 - 24 VDC

Operating temperature: -15 up to 50 °C

Min. operating temperature: -15 °C

Max. operating temperature: 50 °C

Manufacturer part #: TC-14212932

Material (details): Stainless steel

Max. operating pressure: 10 bar

Operating pressure (min.): 0 bar

Pressure range: 0 up to 10 bar

Operating medium: Air
Fluids

Operating voltage: 9 V DC
24 V DC

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

English

Datasheet 3553233 TRU COMPONENTS TC-A20-T25-S2-C/9-24VDC Ball valve (failsafe) 0 up to 10 bar

User & Safety Instructions

User & Safety Instructions 3553233 TRU COMPONENTS TC-A20-T25-S2-C/9-24VDC Ball valve (failsafe) 0 up to 10 bar
