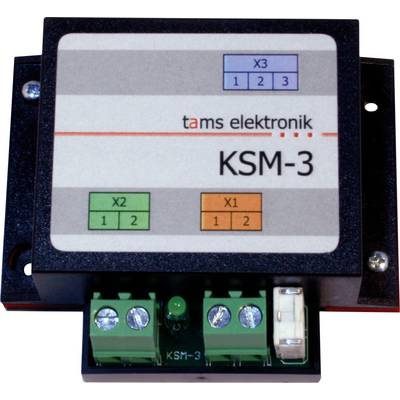

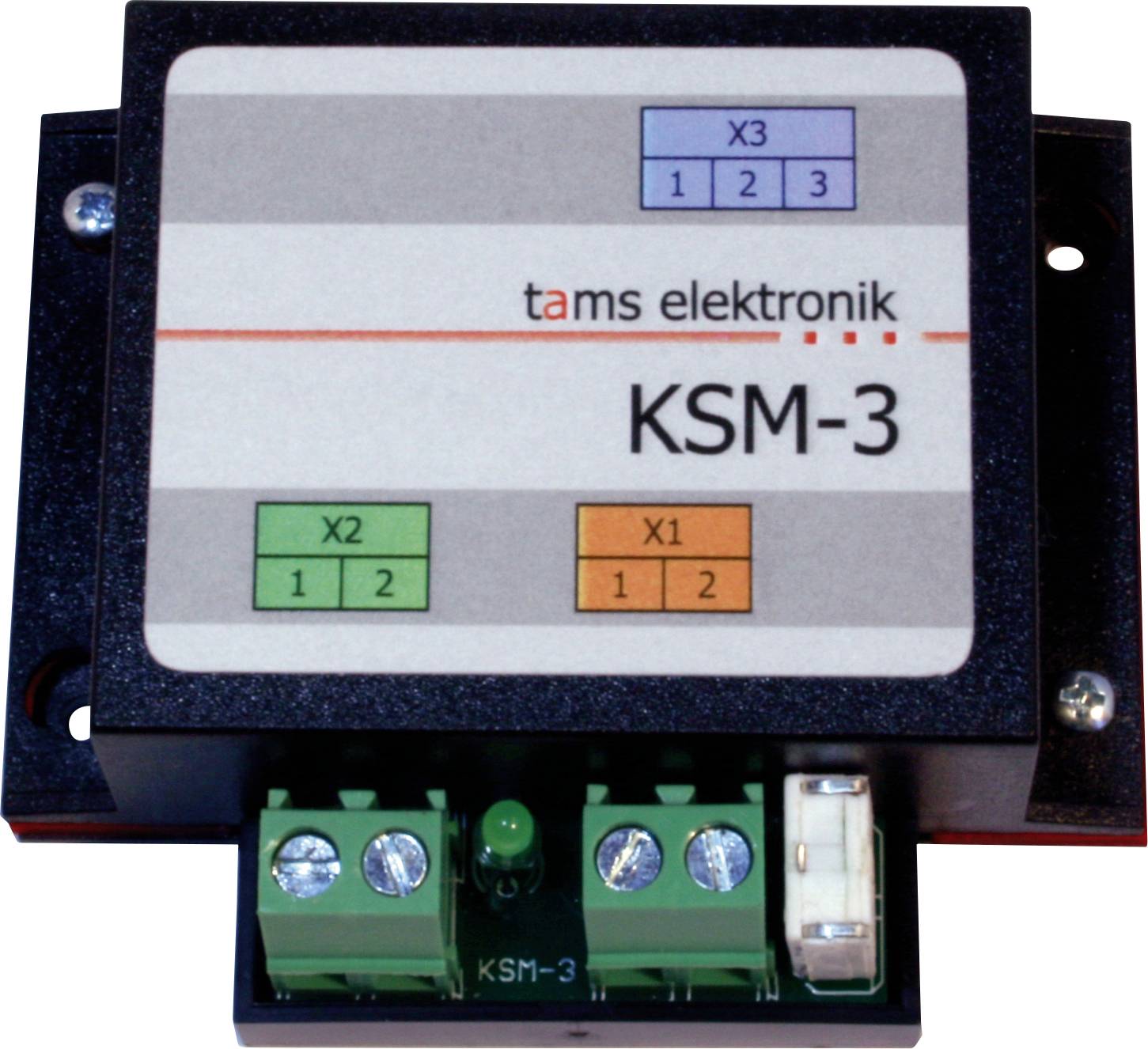

TAMS Elektronik KSM-3 | Reverse loop module for digital systems
- With integrated point control
- Short-circuit arm.
- For vehicles up to 8 A.
Technical specifications
- Digital formats: All
- Track outputs:
- - 2 for connecting the tracks inside the terminal loop
- - 2 for connecting the tracks outside the terminal loop
- Switch output:
- - Connection of a switch optional
- - Number: 1
- - For the direct connection of a switch with double coil drive
- - Maximum current: 1 A.
- Power supply: Via the rails
- Max. Current of all vehicles in the terminal loop: 8 A.
- Board dimensions 48 x 52 mm
- Dimensions including housing: 70 x 60 x 25 mm
- Product type
Reverse loop module
- Digital format
Universal
- Type
Accessories
- Length
70 mm
- Width
60 mm
- Height
25 mm
- Dim
(L x W x H) 70 x 60 x 25 mm
- Age category
15 years and over
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775671 TAMS Elektronik 49-01137-01 KSM-3 Reverse loop module Accessories
Description
Functional principle:
The KSM-3 terminal loop module changes the polarity within a few milliseconds, as soon as it detects the voltage drop at the transition to the short circuit when the entry or exit of a train. The KSM-3 thus reacts before the voltage actually collapses as a result of the short circuit. An LED on the board indicates the optimum setting to ensure the precise setting of the short-circuit sensitivity.
Connection of the switch (optional):
The point can be connected to the KSM-3 and is then automatically switched to the exit of the train from the terminal loop. The point can also be set by hand or with the help of external circuits. In this way, a direction of driving within the terminal loop can be indicated before drive-in.
Suitable point types: Points with double coil drive or motorized switches. An additional adapter AMW plus is required for connecting motor-operated switches.
Other features:
- Suitable for turntables.
- max. Number of locomotives in terminal loop: No limit
- min. Length of terminal loop: 1 times train length
- max. Current of all vehicles within the terminal loop: 8 A.
- Integration in the system control: Connection of external track occupancy detectors or RailCom detectors to the inside of the terminal loop is possible
This text is machine translated.
The KSM-3 terminal loop module changes the polarity within a few milliseconds, as soon as it detects the voltage drop at the transition to the short circuit when the entry or exit of a train. The KSM-3 thus reacts before the voltage actually collapses as a result of the short circuit. An LED on the board indicates the optimum setting to ensure the precise setting of the short-circuit sensitivity.
Connection of the switch (optional):
The point can be connected to the KSM-3 and is then automatically switched to the exit of the train from the terminal loop. The point can also be set by hand or with the help of external circuits. In this way, a direction of driving within the terminal loop can be indicated before drive-in.
Suitable point types: Points with double coil drive or motorized switches. An additional adapter AMW plus is required for connecting motor-operated switches.
Other features:
- Suitable for turntables.
- max. Number of locomotives in terminal loop: No limit
- min. Length of terminal loop: 1 times train length
- max. Current of all vehicles within the terminal loop: 8 A.
- Integration in the system control: Connection of external track occupancy detectors or RailCom detectors to the inside of the terminal loop is possible
This text is machine translated.
Scope of delivery
- 1 Terminal loop module KSM-3, design: Finished device in the housing
