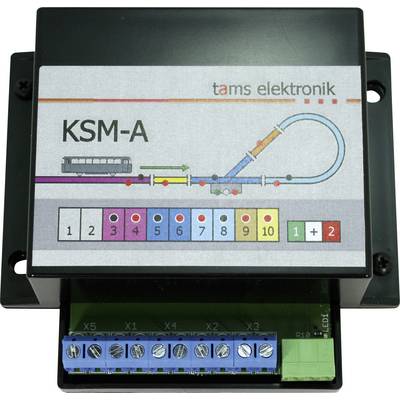

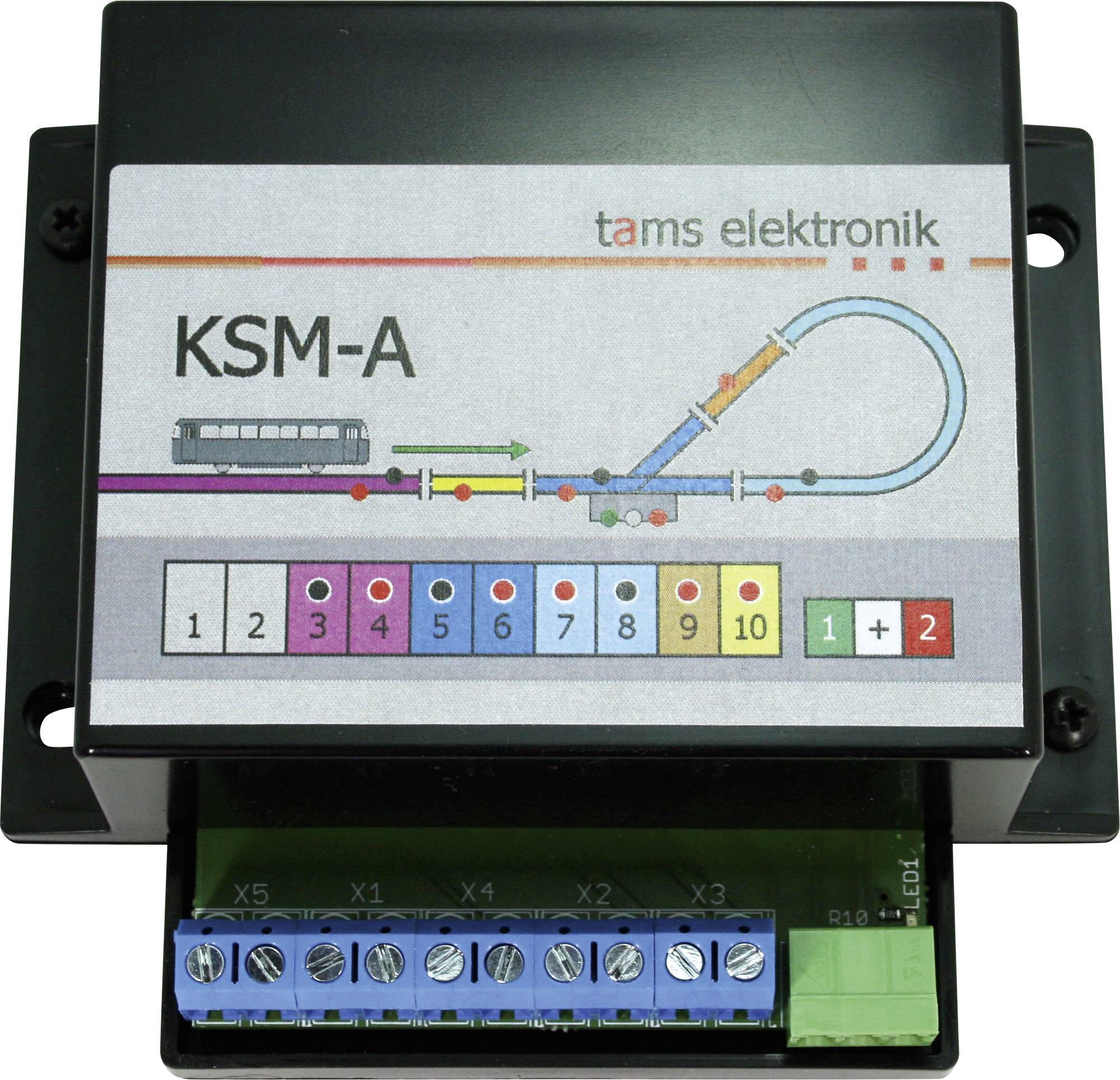

TAMS Elektronik 51-06107-01 KSM-A Reverse loop controller Accessories
EAN:
Part number:
Item no:
Number
Total (€ 73.99 / piece)
€ 73.99
incl. VAT
Only 8 Piece(s) available
Technical specifications
- Output: 1 for the connection of signals and/or switches
- Electrical properties
- - Supply voltage: AC-voltage transformer or DC-voltage power supply. The fixed voltage part of the drive transformer can be used to supply the system.
- - Current consumption: Max. 80 mA (without connected consumers)
- - Maximum current at the rail connections: Within the terminal loop: 2 A Duration | 3 A Peak (maximum 5 seconds)
- Dimensions of the board: Approx. 74 x 82 mm
- Dimensions incl. Housing: 100 x 90 x 35 mm approx.
- Product type
Reverse loop controller
- Type
Accessories
- Length
100 mm
- Width
90 mm
- Height
35 mm
- Dim
(L x W x H) 100 x 90 x 35 mm
- Age category
15 years and over
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3775679 TAMS Elektronik 51-06107-01 KSM-A Reverse loop controller Accessories
Description
function
- Control of the short-circuit-free operation of the terminal loop in an analog DC system.
- Automatic switching of the switch for the entry and exit and the polarity of the rails. Suitable for the use of points with double-coil drive or motorized switches.
- Safety section between the terminal loop and the rest of the system.
- LED display of the current position (ready to enter the terminal loop / exit from the terminal loop).
This text is machine translated.
Scope of delivery
- 1x Terminal loop module KSM-A, , Design: Finished device in the housing
- 1x jumper for setting the switching time of the connected switch
- 1x 3-pin terminal for connecting the crossover
