Name: TDK-Lambda D1SE120-24-A3 Rail mounted PSU (DIN) 120 W Content 1 pc(s)
Brand: TDK-Lambda
SKU: 3540436
Availability: InStock

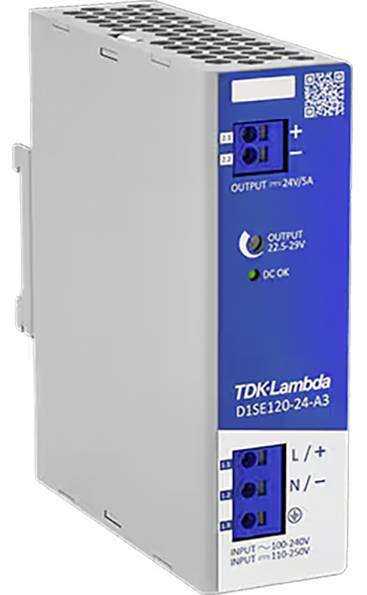

TDK-Lambda D1SE120-24-A3 power supply module, features input and output voltage ports, labeled controls, with a compact design.

Datasheet (PDF)

Fast track dispatch on Wed 21 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Rail mounted PSU (DIN)

Min. input voltage: 90 V AC
93 V DC

Input voltage (max.): 264 V AC
300 V DC

: 120 W

Connection: Push-in connector

Output voltage (max.): 22.5 V

Manufacturer part #: D1SE120-24-A3

Content: 1 pc(s)

PSU features: protective coating

Max. temperature: 70 °C

Min. temperature: -25 °C

Type: D1SE120-24-A3

Efficiency: 92 %

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3540436 TDK-Lambda D1SE120-24-A3 Rail mounted PSU (DIN) 120 W Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3540436 TDK-Lambda D1SE120-24-A3 Rail mounted PSU (DIN) 120 W Content 1 pc(s)

Description

The D1SE series is a cost-effective solution for users who need a reliable power supply. With power ratings of 120 W, 240 W and 480 W, a variety of industrial applications can be flexibly scaled. Thanks to the latest semiconductors, these single-phase power supplies not only reduce energy consumption, but also optimize the ratio of performance and economy – without compromising on quality and reliability. The D1SE series continuously meets the changing system requirements. In addition to the conventional operation with AC voltage, the devices can alternatively also be operated safely with DC voltage. Equipped with push-in terminals, they can be mounted quickly and reliably, WAS installation times shortened or even automation allows. Separate models with coated circuit boards are available for applications in demanding environments. The compact design and simple mounting make the D1SE series the optimum choice for a variety of control cabinets, machines and production systems.

This text is machine translated.

Features

AC or DC operation enables use in a variety of applications.
The 130% increase in performance increases design flexibility and allows for system retrofits.
Efficiency of up to 92% contributes to a minimum energy consumption and an environment-friendly energy balance.
A maximum inrush current of less than 0.6 A²s prevents tripping of circuit breakers.
Push-in connections for tool-free installation and high vibration-strength.
Special models with coated circuit boards for use under harsh environmental conditions.
A sophisticated heat design for minimal installation distances.
