1/2

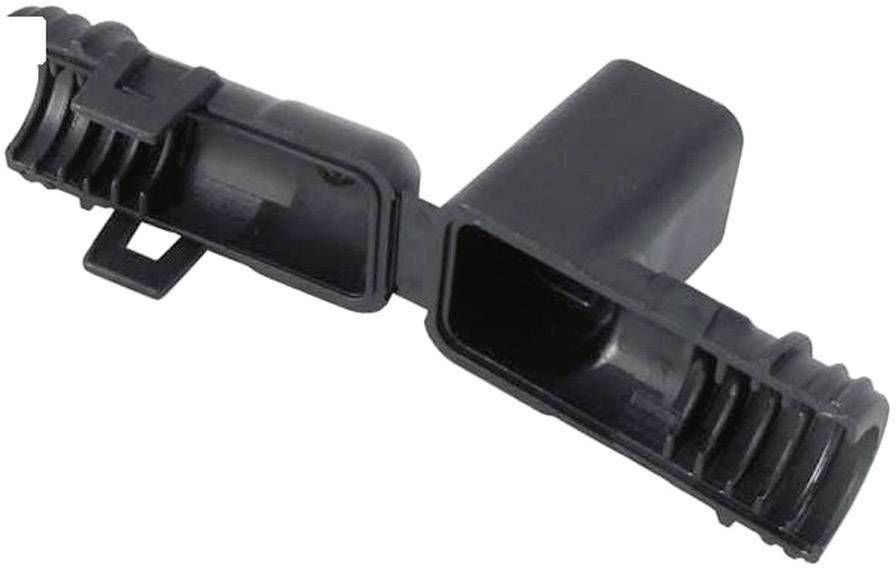

Image similar
TE Connectivity 1011-258-0205
Product type
Bullet connector
Connector type
Strain relief
Total no. of pins
2
Content
1 pc(s)
Nominal current - rounded value
5 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 2.49 / piece)
€ 2.49
incl. VAT
14-day return policy included
Highlights & Details
TE Connectivity 1011-258-0205
Our service for you
Technical specifications
- Type
1011-258-0205
- Product type
Bullet connector
- Connector type
Strain relief
- Total no. of pins
2
- Factory colour
Black
- Content
1 pc(s)
- Max. temperature
+70 °C
- Nominal current
5 A
- Min. temperature
-20 °C
- Nominal current - rounded value
5 A
- Nominal voltage
150 V
- Cable Ø (max.)
3.68 mm
- Cable Ø up to
1.35 mm
- Case material
Thermoplastic material
20 - 14
- Connection angle
180°
- Manufacturer part #
1011-258-0205
- Cable Ø range
1.35 - 3.68 mm
- Number of pins
2
- max. cross section
2 mm²
- Cross-section range
2 mm² (max)
- RoHS-compliant
Yes
- Series
DT
Documents & Downloads
Datasheet
Datasheet 737248 TE Connectivity 1011-258-0205
User & Safety Instructions
User & Safety Instructions 737248 TE Connectivity 1011-258-0205
Description

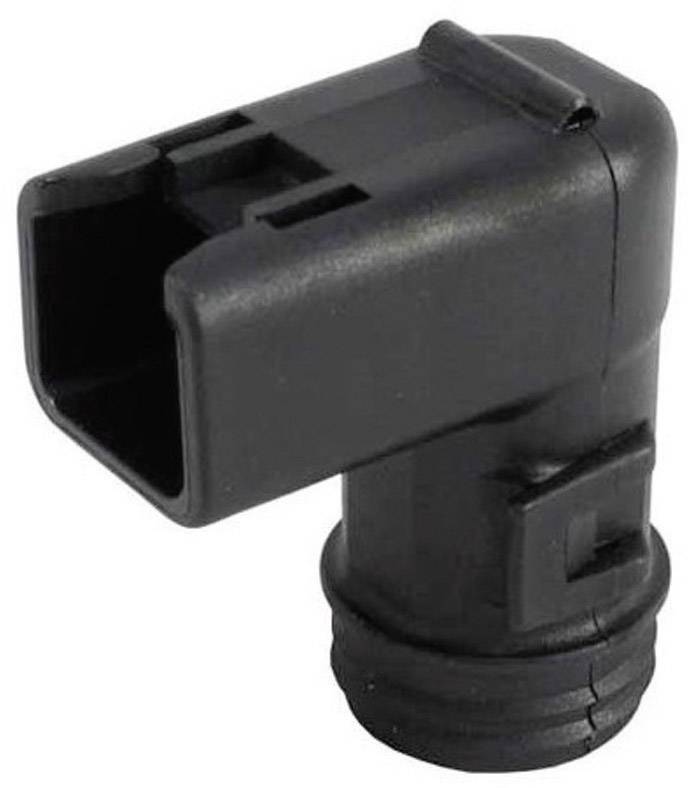

Form-fitting sleeves for the DT series from 2 to 6-pin. The variants 180° or 90° in any combination are available. Via a internal ribbing, it is both possible double-insulated cable clamps and so the contacts to relieve the burden as well as, for example, a corrugated pipe run wiring harness securely with the plug/socket to connect. These covers are in a position at 2, 3 and 4-pin housing-Ø of 6, 7.5, 8 and 10 mm. The range when 6-pin housing ranges from 8.5, 10 to 13 mm.
This text is machine translated.
This text is machine translated.
