TE Connectivity PT570012 Mini relay 12 V DC 6 A 4 change-overs 1 pc(s)

An electrical relay with a transparent casing reveals its internal mechanisms. Printed markings indicate technical specifications and manufacturer details.
A transparent electrical relay cube with multiple metal pins at the bottom. Orange mechanical components are visible inside.

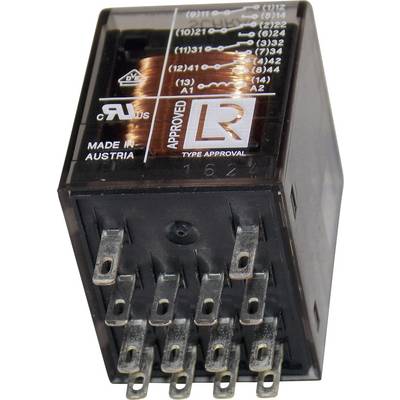

Electromechanical relay with multiple pins, showing winding and circuit diagrams on the top surface. Labels: 'MADE IN AUSTRIA', 'TYPE APPROVAL'.
'A transparent electrical relay cube with multiple metal pins, used in electronic circuits to control electrical currents.'
'4-layer PCB layout, top view of pins. Dimensions: 6.35x4.40mm. Pin assignment: 1-4 top, 5-8 middle, 9-12 bottom.'
Diagram shows the dimensions of a rectangular component with soldering and plug connections: 29 mm high, 28 mm wide, connection pins at the bottom.
1/6
Product type
Mini relay
Coil nominal voltage
12 V DC
Control mode
monostable, 1 coil
Contact type
4 change-overs
Switching voltage (max.)
240 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
76 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 11.99 / piece)
€ 11.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

PT-Miniature relay

Our service for you

  • VDE Test Mark: Triangle logo with the letters 'VDE', which stands for tested safety and quality for electrical products.
  • 'CRAUS' logo in stylised lettering, predominantly in capital letters, on a white background.

Technical specifications

  • Contact material AgNi 90/10
  • Coil voltage 6 - 220 V/DC/6 - 230 V/AC
Product type

Mini relay

Type

PT570012

Coil nominal voltage

12 V DC

Min. pick-up voltage

9 V DC

Control mode

monostable, 1 coil

Resistance (coil)

192 Ω

Contact type

4 change-overs

Contact material

AgNi 90/10

Switching voltage (max.)

240 V AC

Switching current (max.)

6 A

Max. switching capacity

1500 VA

Connection

Type C CEE 7/16 plug 2.8 mm

Min. temperature

-40 °C

Max. temperature

+70 °C

Length

28 mm

Width

22.5 mm

Height

29 mm

Dim

(L x W x H) 28 x 22.5 x 29 mm

Content

1 pc(s)

RoHS-compliant

Yes

Nominal voltage (details)

12 V DC

Nominal current (details)

6 A

Switching capacity

1500 VA

Switching voltage

250V/AC 440 V AC

Switching current

6 A

Ambient temperature

-40 - +70 °C

Documents & Downloads

Datasheet

Datasheet 504038 TE Connectivity PT570012 Mini relay 12 V DC 6 A 4 change-overs 1 pc(s)

User & Safety Instructions

User & Safety Instructions 504038 TE Connectivity PT570012 Mini relay 12 V DC 6 A 4 change-overs 1 pc(s)

Description

Applications: Universal use in control and mechanical engineering.

Hints

Approvals: VDE, cULus.
