Name: TE Connectivity Socket housing cable Econoseal J Series Mark II (+) Total number of pins 6 2822346-1 1 pc(s)
Brand: TE Connectivity
SKU: 1517494
Availability: InStock

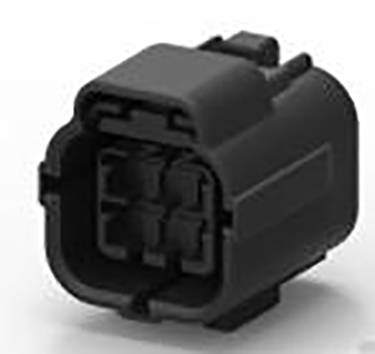

A black, square plug with four connection sockets, used for electronic connections in vehicles or devices.

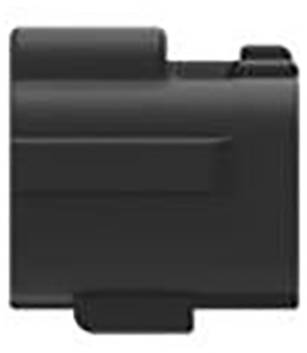

A black, square adapter with straight edges and a rounded top.

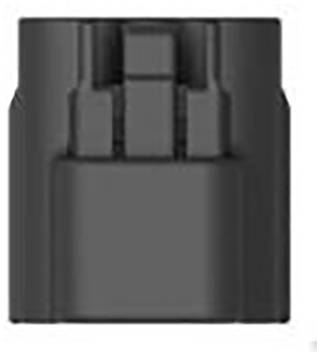

Black and grey plastic connector, rectangular in shape, with multiple plug pins.

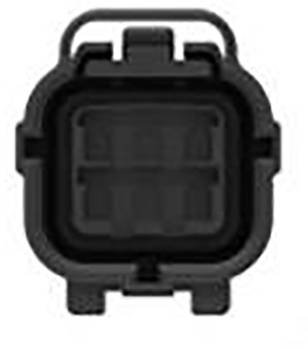

Black and grey, square-shaped object with rounded corners and a handle on top. Possibly a gadget or device component.

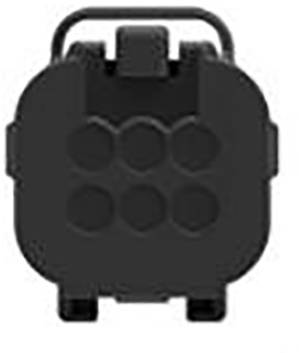

Black, cube-shaped object with six raised points on top, possibly a type of electronic device or connector.

1/5

Product type

Socket housing cable

Connector type

Socket, straight

No. of rows

Series

Econoseal J Series Mark II (+)

Total number of pins

Datasheet (PDF)

Dispatches on Tue 20 Oct

1785 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.29 / piece)

€ 2.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Socket housing Econoseal J Series Mark II (+)

Content: 1 pc(s)
No. of rows: 2
Total number of pins: 6

Our service for you

Technical specifications

Product type: Socket housing cable

Connector type: Socket, straight

No. of rows: 2

Connector system: wire-to-wire

Series: Econoseal J Series Mark II (+)

Pins per row: 3

Total number of pins: 6

Pin shape: Rectangular

Content: 1 pc(s)

Case material: Thermoplastic material

Manufacturer part #: 2822346-1

Factory colour: Black

Insulation material: Thermoplastic material

Connector contact surface: Tin plated

Nominal voltage: 12 V DC

max. cross section: 1.25 mm²

Min. cross section: 0.20 mm²

RoHS-compliant: Yes

Max. temperature: +105 °C

Min. temperature: -30 °C

Type: 2822346-1
