Name: Technaxx 5214 TX-302 Radiator fan Radiator fan
Brand: Technaxx
SKU: 3375663
Availability: BackOrder

A white, elongated heatsink with three integrated fans, designed to cool electronic devices.

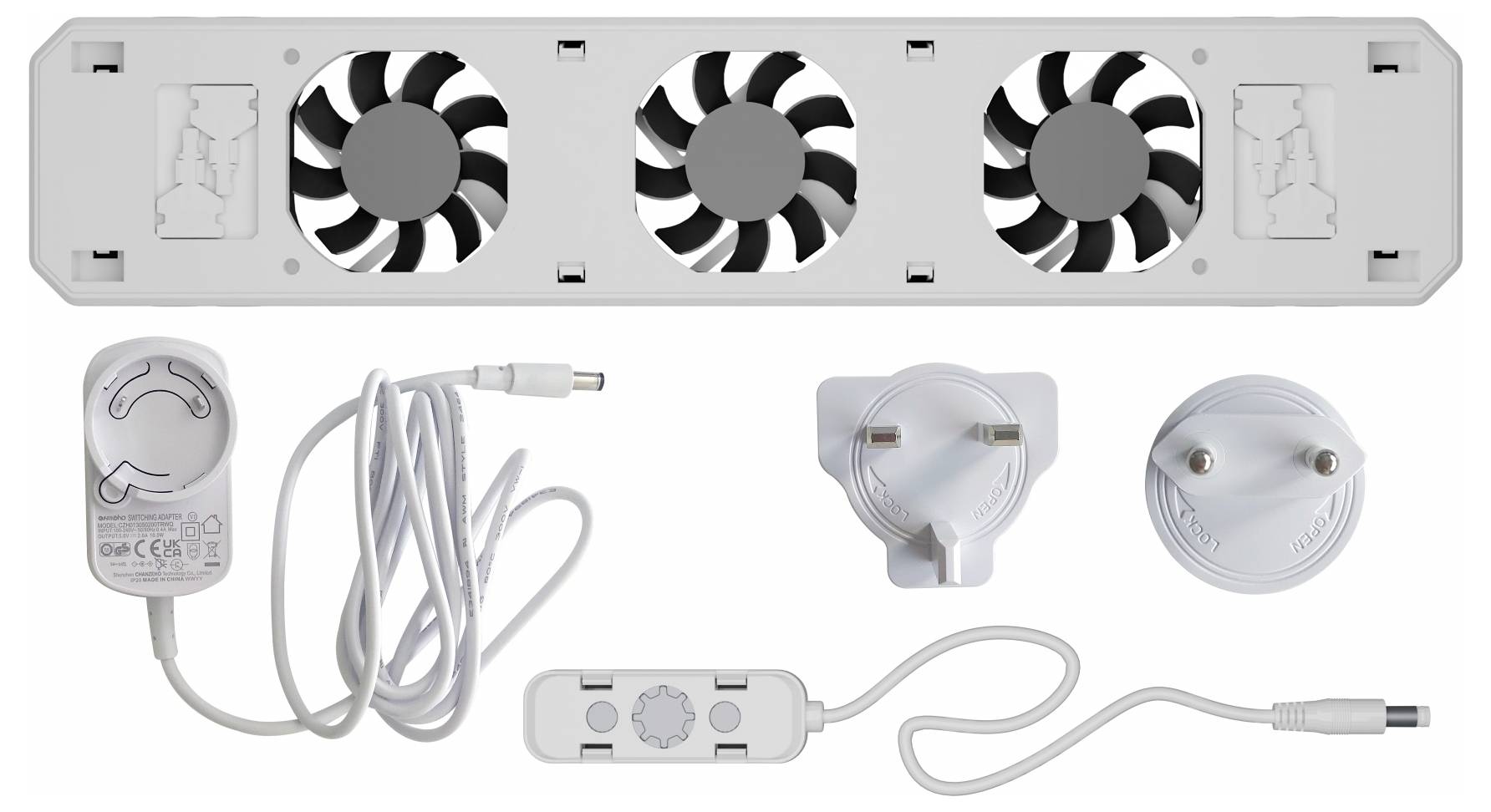

Ventilation unit with three fans and various socket adapters. Includes control cables for temperature regulation.

A grey multi-socket extension lead with several socket outlets and an attached cable.

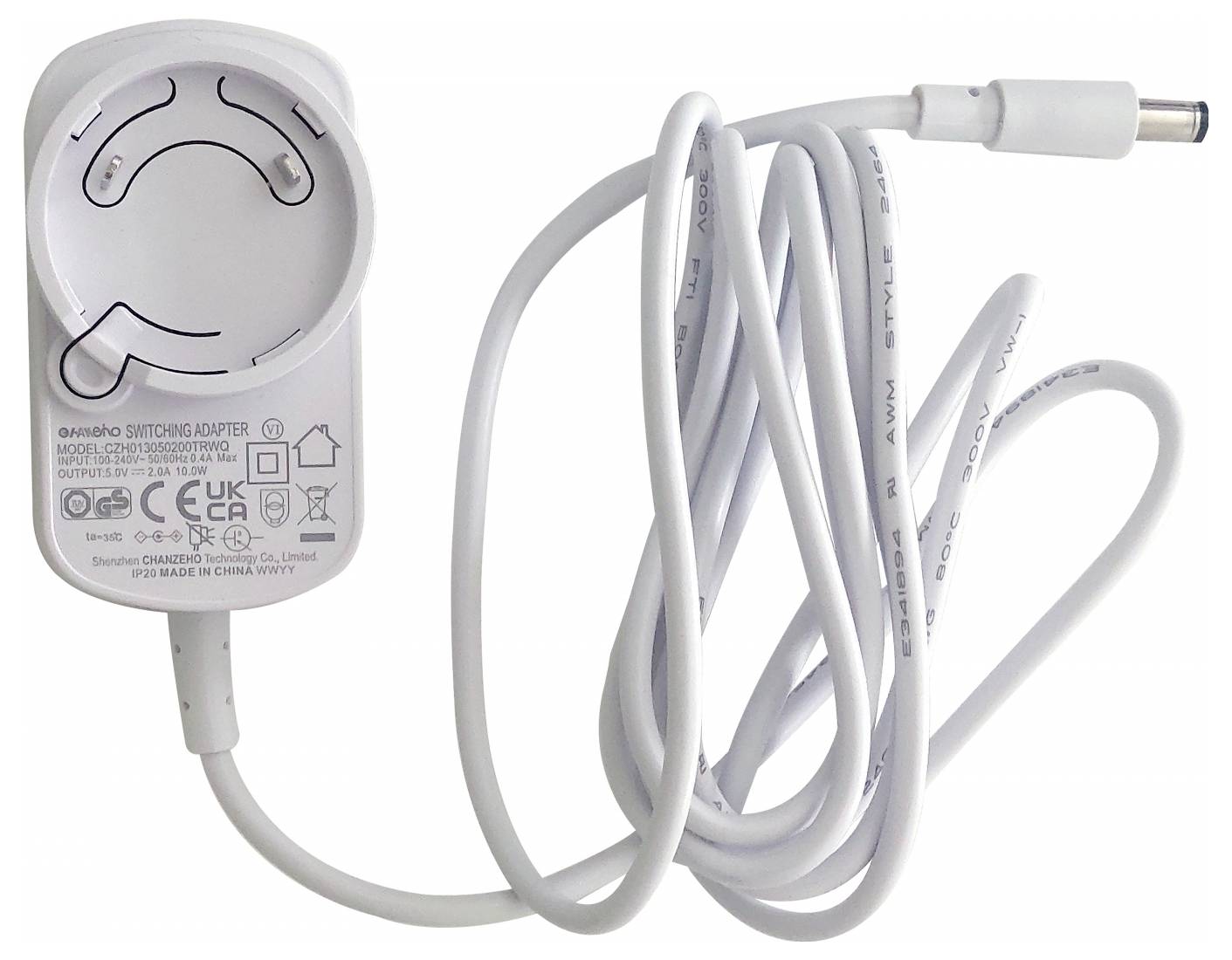

White power supply with EU plug, cable and DC connector. Housing with technical specifications such as voltage and current.

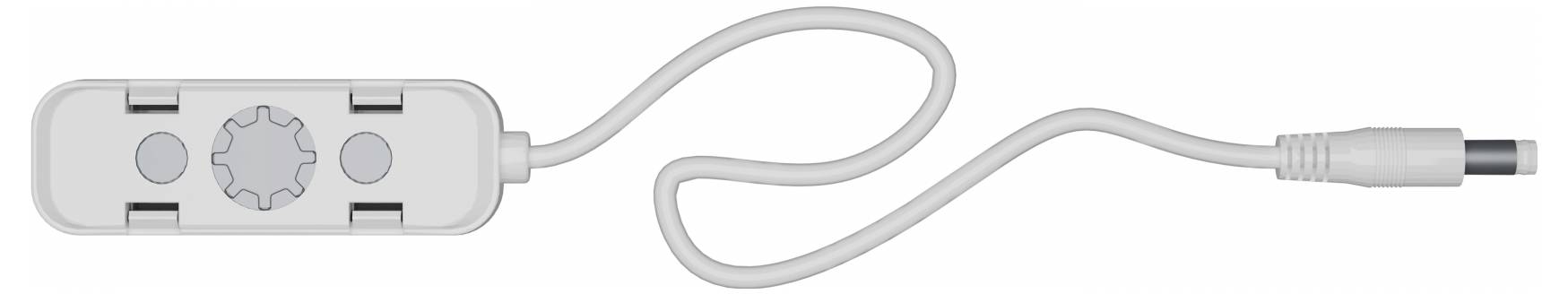

A light grey remote control with a rotary switch and two buttons, connected by a thin cable and a plug connector.

Packaging of a heating fan with the inscription 'Heating Fan - Mono Set TX-302'. Image shows application of the product on a radiator.

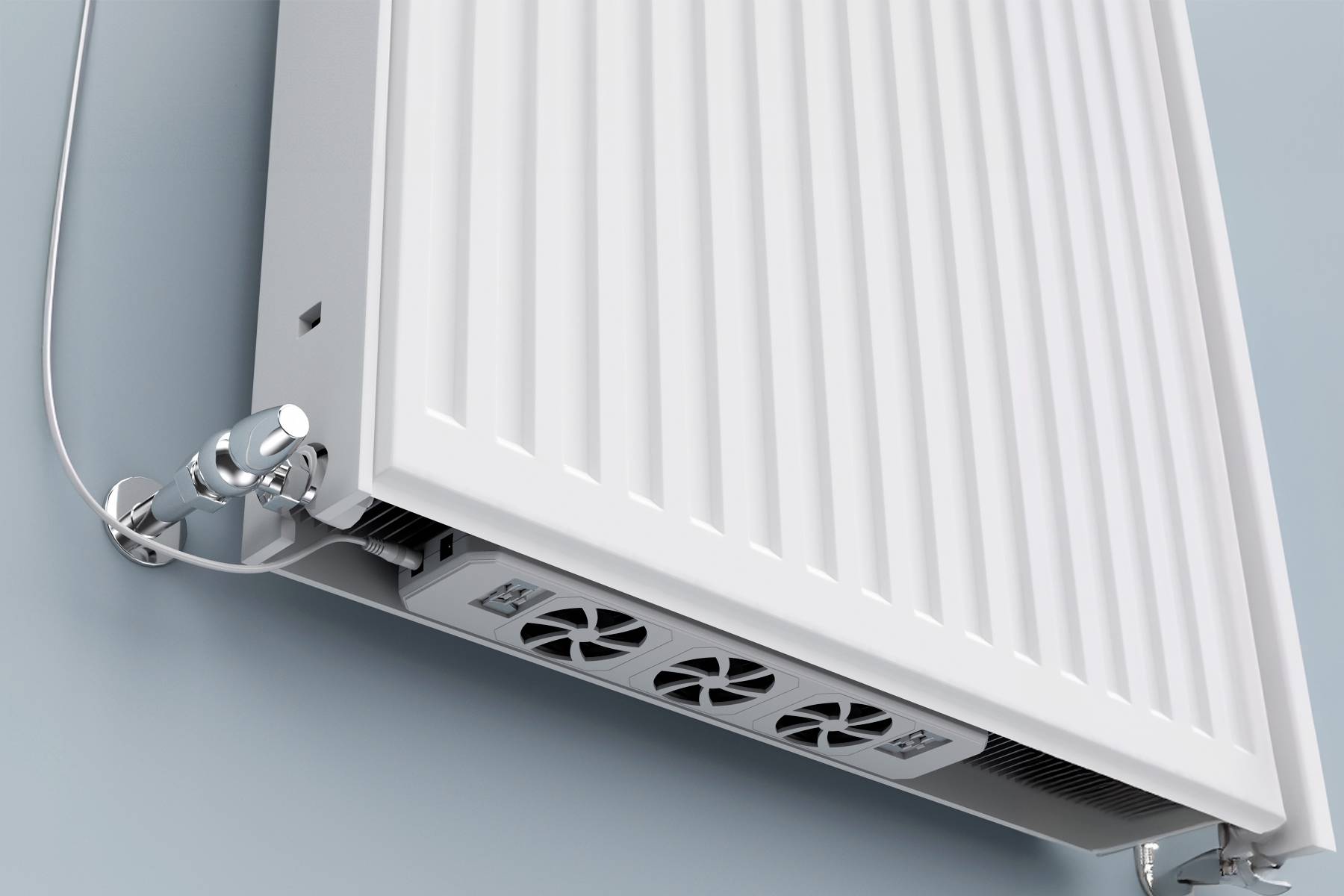

A white radiator mounted on a blue wall, viewed from the side. Several small fans are located at the bottom to improve heat distribution.

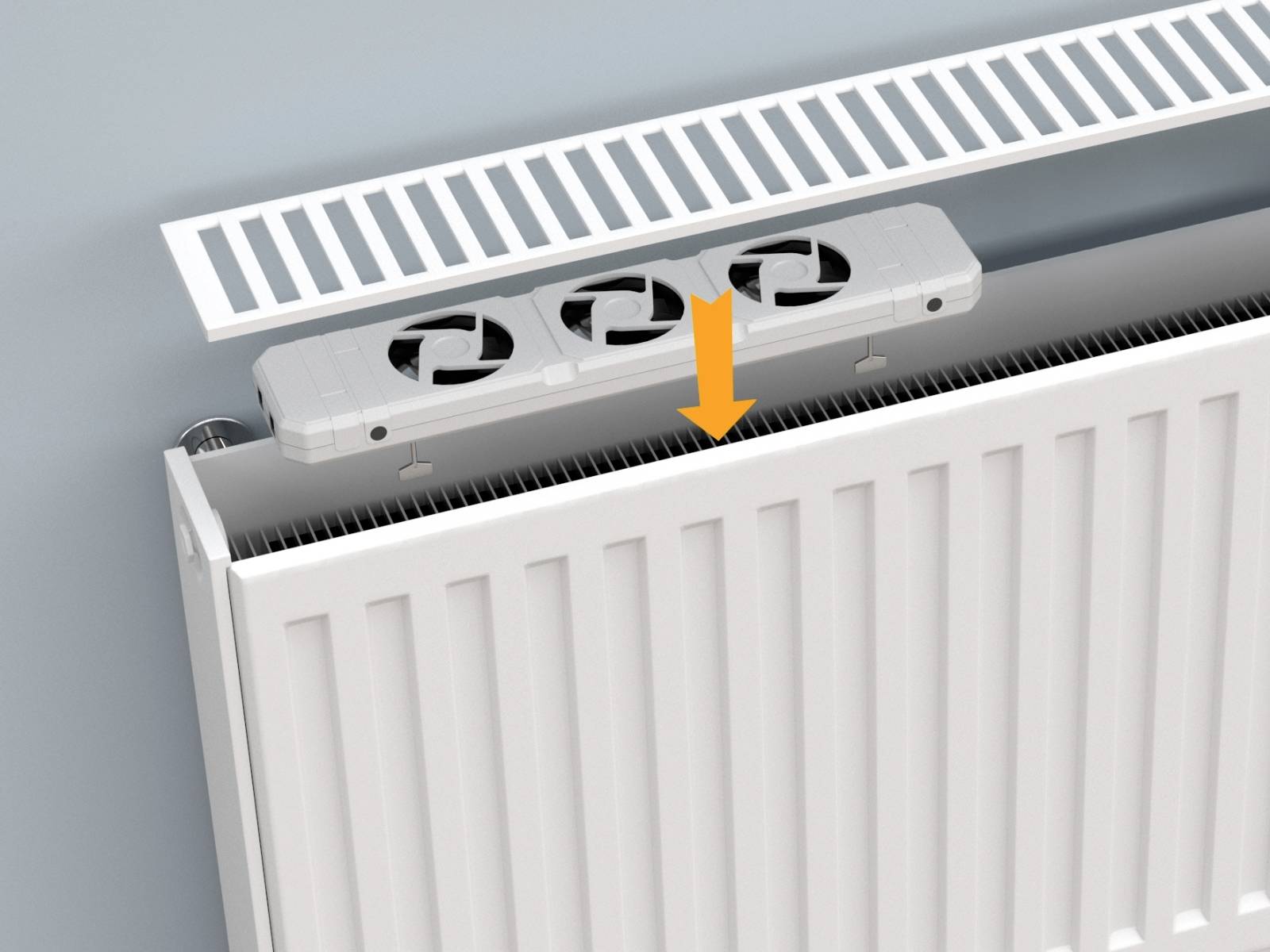

A radiator fan attachment placed on a radiator to improve air circulation. An arrow points to the radiator.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 46.99 / piece)

€ 46.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Technaxx Heating fan - mono set TX-302

Enables you to save energy and money;
Heats up your rooms in no time at all;
Very low power consumption;
Super-quiet with optimized air flow

Technical specifications

Power consumption: Approx. 1 W
Input AC100–240 V~50/60 Hz; 0.4 A max.
Output DC5V/2A
Air flow: 24-25cfm / 34-35m³/h.
Fan speed 1800 rpm
Noise level: Approx. 20 dB
Temperature sensor: On: 35° C; Off: 25°C.
Working temperature: -20 - 85 °C; RH less than 80 % (no condensation)
Storage temperature -40° C - +85° C.

Product type: Radiator fan

Content: 1 pc(s)

Width: 70 mm

Height: 25 mm

Length: 345 mm

Factory colour: Grey

Material: ABS plastic
PC

Dim: (L x W x H) 345 x 70 x 25 mm

Weight: 1000 g

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3375663 Technaxx 5214 TX-302 Radiator fan Radiator fan

User & Safety Instructions

User & Safety Instructions 3375663 Technaxx 5214 TX-302 Radiator fan Radiator fan

Description

Easy to install and fits most of the hot-water heaters and convection heaters made of steel. Automatic on/off thanks to integrated temperature sensor.

This text is machine translated.

Scope of delivery

Heating fan
Temperature sensor (cable length 60 cm)
Power supply (cable length 180 cm) (EU&UK)
User manual

Description

Easy to install and fits most of the hot-water heaters and convection heaters made of steel. Automatic on/off thanks to integrated temperature sensor.
