Technaxx TX-257 5089 Night vision + digital camera 4 x 25 mm
EAN:
Part number:
Item no:
Number
Total (€ 70.58 / piece)
€ 70.58
plus VAT.
Only 4 Piece(s) available

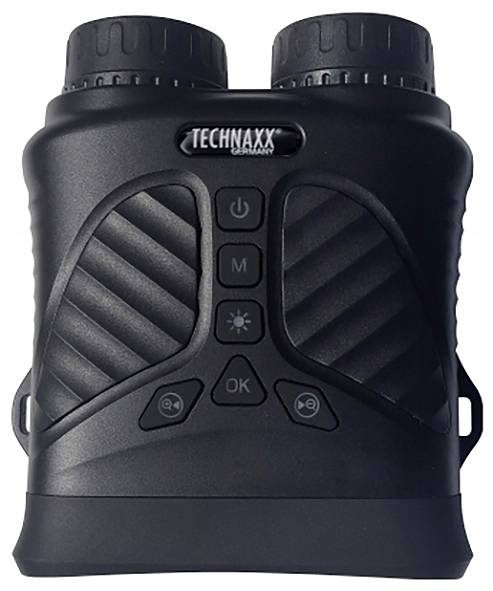

Night vision device TX-257
Highlights & Details
- Full HD video resolution
- 40 MP photo resolution max.
- IPS screen 7.62 cm
- Battery-powered
- This text is machine translated.
Technical specifications
- Magnification
4 x
- Lens Ø
25 mm
- Dim
(L x W x H) 14 x 12 x 6 cm
- Height
6 cm
- Length
14 cm
- Width
12 cm
- Type
Binoculars
- Max. observation distance
500 m
- Resolution
40 MP
- Viewing angle
horizontal 11°/vertical 7.6°
- Additional IR light
Yes
- Power supply
USB-C®
- Weight, information
incl. rechargeable battery
- Weight
334 g
- Product type
Night vision + digital camera
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3341568 Technaxx TX-257 5089 Night vision + digital camera 4 x 25 mm
Information
Information 3341568 Technaxx TX-257 5089 Night vision + digital camera 4 x 25 mm
Warranty Terms
Warranty Terms 3341568 Technaxx TX-257 5089 Night vision + digital camera 4 x 25 mm
Description
Features
- Image sensor 1.3 MP 1/3" CMOS
- Lens: F = 25 mm, F/NO 1.2, FOV = 10°
- Optical magnification: 4x
- Digital zoom 8x
- Camera viewing angle: Horizontal: 11°/vertical: 7.6°
- Display size: IPS screen 3" (7.62 cm)
- Max. Visibility (Day): Up to 500 m (Color)
- Max. Visibility (Night): Up to 150 m (Black & White)
- Day and night: IR-cut double filter, automatic switching
- Minimum illumination: Colour mode: 1 Lux; night mode: 0.1 Lux with 1x IR LED
- IR distance: Up to 150 m (3 W, 850 nm)
- Video resolution: 2.5K UHD (2560x1440), 1080p FHD (1920x1080), 1080p (1920x1080), 720p (1280x720)
- Video frame rate 30 fps
- Video file format: .AVI
- Video compression: H.264
- 40 MP, 30 MP, 25 MP, 20 MP, 10 MP, 8 MP, PHOTO RESOLUTION 5 MP, 3 MP
- Photo file format: .JPG
- Memory: Supports MicroSD(HC/XC) cards up to 32 GB (FAT32) (Class 10)
- File size: Night; B/W: 60–70 MB/min (32 GB = 5.5 hr continuous recording); day; color: 180–190 MB/min (32 GB = 2 hr continuous recording)
- Power consumption: Normal mode ≤ 2 W / sleep mode ≤ 0.1 W.

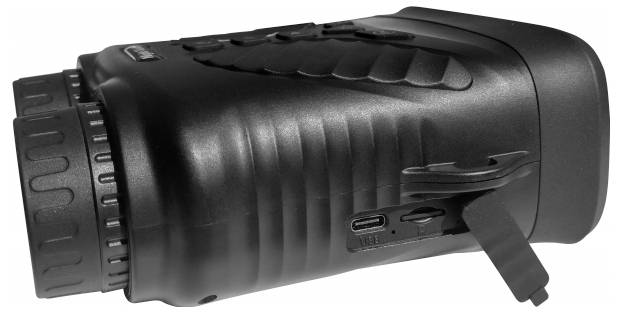

- External battery charger USB-C port 5 V / 1 A (not included)

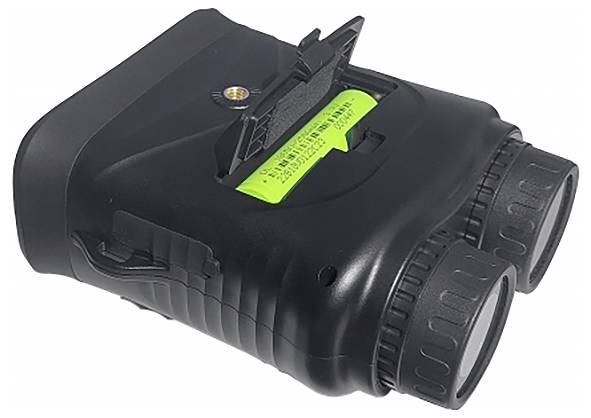

- Battery: Replaceable lithium-ion battery 3.7 V, 2500 mAh
- Operating time: Up to 3 hours (continuous video recording at IR level 3 - night mode) depending on use
- Standby time: Up to 3 months
- Charging time: Up to 3 h (when using a USB-power supply with 5 V DC/1 A)
- Operating temperature 30 to +55 °C
- Device language: English, French, German, Italian, Spanish, Czech, Polish, Dutch, Swedish, Finnish, Danish
