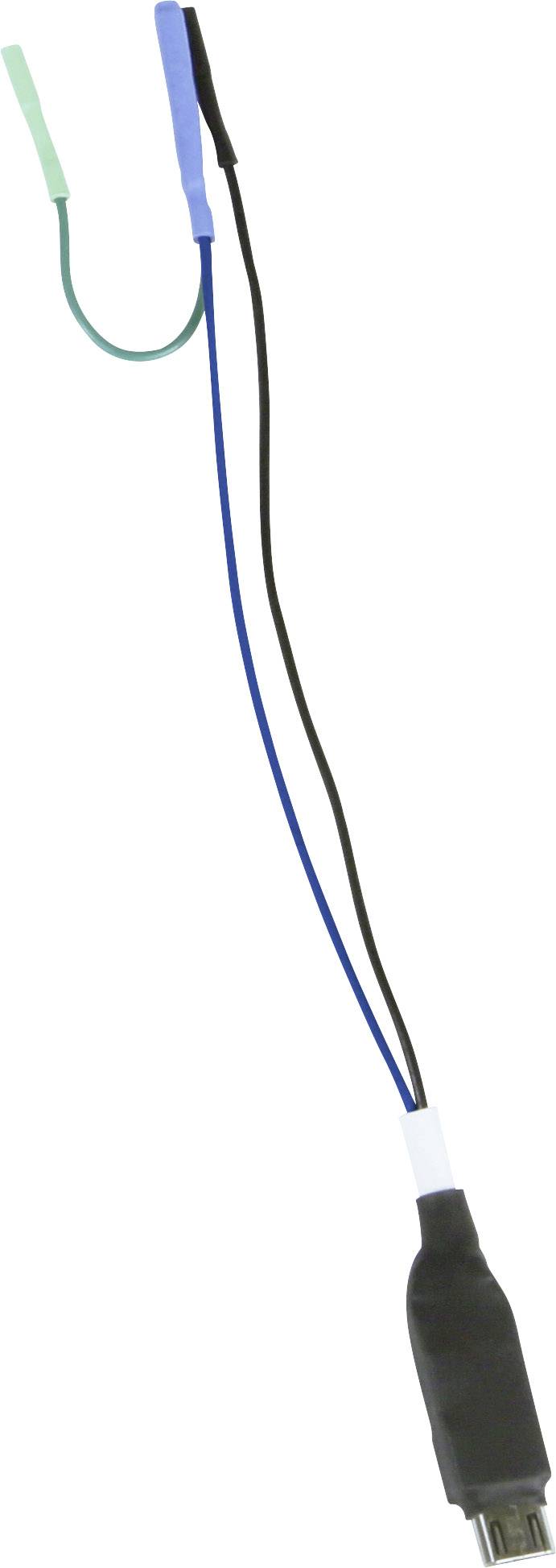

Teledyne LeCroy HVFO100-5X-TIP-U Probe 60 MHz
EAN:
Part number:
Item no:
Number
Total (€ 1,055.00 / piece)
€ 1,055.00
incl. VAT
14-day return policy included
Highlights & Details
Shock peaks HVFO100-5X-TIP-U
- Bandwidth 60 MHz
Technical specifications
- Noise: 35 mVrms
- Product type
Probe
- Bandwidth
60 MHz
- Slew rate
7.5 ns
- Input capacity
26 pF
- Input resistance
5 M Ω
Manufacturer's standards (no certificate)
- Compatible with (details)
HFVO103
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2267559 Teledyne LeCroy HVFO100-5X-TIP-U Probe 60 MHz
Description
The HVFO is a low-cost, optimally designed probe for measuring small signals floating on a HV bus in power electronics designs or for monitoring sensors for EMC, EFT, ESD and HF interference immunity testing. It far exceeds the measurement capabilities and signal fidelity of both conventional HV differential probes and detection systems based on high-voltage galvanic isolation. It also reduces the need to rely on hazardous test setups that require a floating oscilloscope and probe.
This text is machine translated.
This text is machine translated.
Features
- Gate control signal measurements on the top
- Floating control signal or sensor voltage measurements
- EMC, EFT, ESD and RF immunity tests and system optimization
- Measurements of any small signals with high common-mode voltage
Hints
Only in conjunction with HVF0103
