Teledyne LeCroy Probe Differential probe set 100 MHz 7000 V
EAN:
Part number:
Item no:
Number
Total (€ 4,359.00 / piece)
€ 4,359.00
incl. VAT
14-day return policy included
Highlights & Details
Teledyne LeCroy 7kV, 100 MHz, 2.5 pF, 40 M, Rise Time 3.5 ns, High Voltage Differential Probe
- Bandwidth 100 MHz
Technical specifications
- Product type
Differential probe set
- Bandwidth
100 MHz
- Slew rate
3.5 ns
- Nominal voltage
7000 V
- Input capacity
2.5 pF
- Input resistance
40 M Ω
- Type
differential
Manufacturer's standards (no certificate)
- Weight
216 g
- Cable length
1.50 m
- Reading category
CAT III 1000 V
CAT I 2300 V
- Width
28 mm
- Height
65 mm
- Length
195 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2585983 Teledyne LeCroy Probe Differential probe set 100 MHz 7000 V
Description
The new Teledyne Test Tools T3HVD high voltage differential probes are active differential voltage probes up to 100 MHz bandwidth, voltages up to ± 7000 V (DC + Peak AC), fast and accurate waveform capture, measuring accuracy of ± 2% and low load on the test circuit. These probes can be used with any oscilloscope with a 1 MΩ BNC input.
This text is machine translated.
This text is machine translated.
Features
- Essential featuresAccurate and simple voltage measurementsBandwidth of 100 MHzDifferential signal input of up to ± 7000 V (DC + peak AC)High differential input impedance of up to 40 MΩ / < 2.5 pF depending on the modelCombined single ended and differential measuring capabilityUse with any oscilloscope with a 1 MΩ input and BNC connectionOvervoltage alarm with two displaysSwitchable bandwidth limitation for noise reductionApplicationsPower electronicsMulti-phase motor drives (electric vehicles, etc.)Inverter and power conversionDomestic and industrial photovoltaic (PV) systems designGeneral vehicle electronicsDesign of power suppliesMeasurement of suspended voltagesHousehold appliances (washing machines, induction hobs, etc.)Research and developmentUniversities, general electronics and education

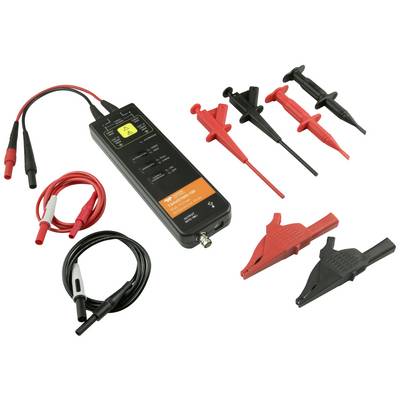

Scope of delivery
- Single differential probe
- 2x alligator clips2x pliers clamps2x Hook clamps2x extension cable1x BNC output cable• 1x USB power cable1x wall socket USB-power supply1x Instructions for Use1x Calibration Report
