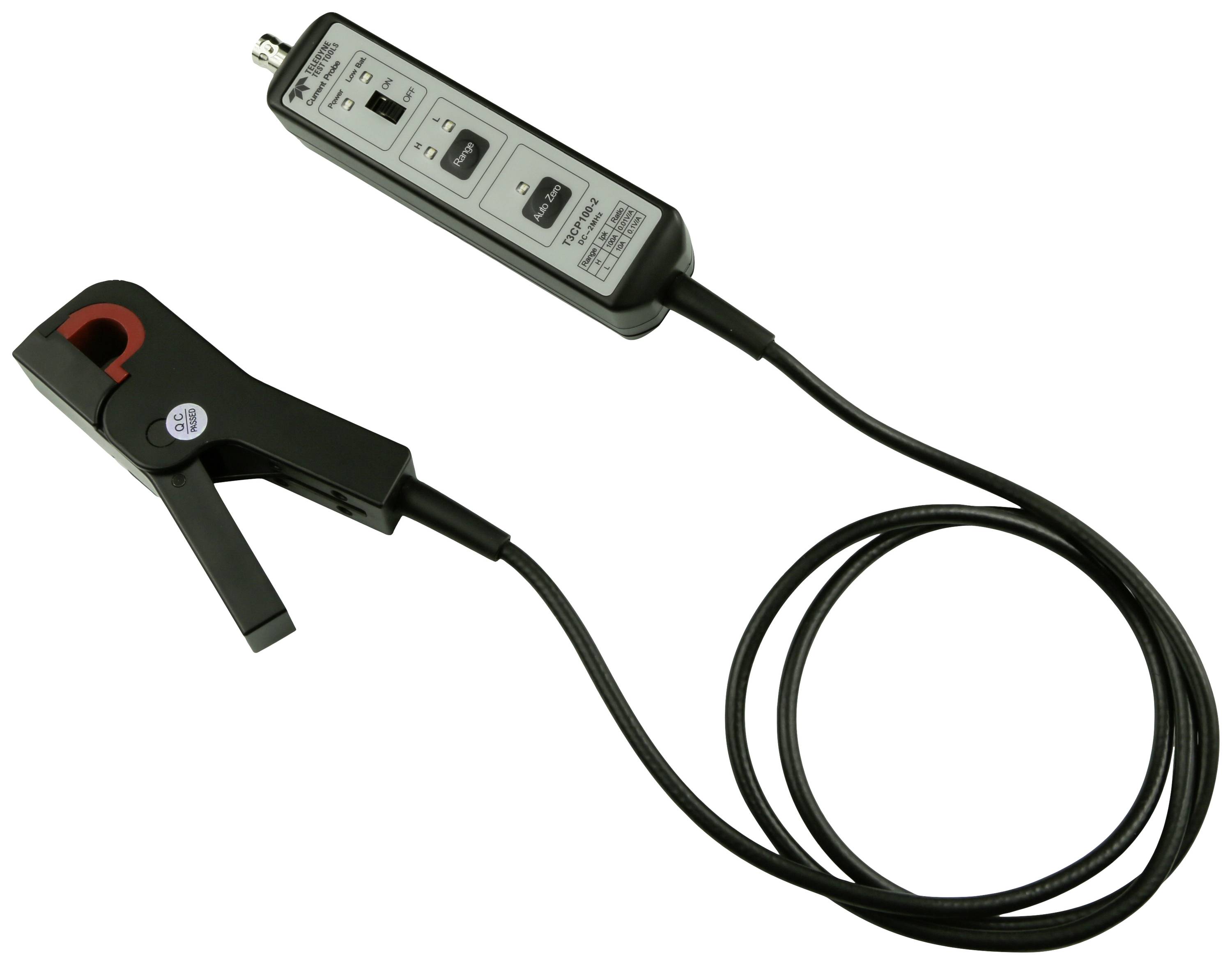

Teledyne LeCroy Probe Probe 2 MHz
EAN:
Part number:
Item no:
Number
Total (€ 1,499.00 / piece)
€ 1,499.00
incl. VAT
14-day return policy included
Highlights & Details
Teledyne LeCroy 100A, 2 MHz, DC/AC Current Probe, BNC, 100A Peak, 70A rms
- Bandwidth 2 MHz
Technical specifications
- Clip-on ammeter dimension: 100x20x60 mmClamp-on ammeter control unit dimensions: 137x33x35 mm
- Product type
Probe
- Bandwidth
2 MHz
- Slew rate
175 ns
Manufacturer's standards (no certificate)
- Weight
223 g
- Cable length
1 m
- Width
60 mm
- Height
20 mm
- Length
100 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2585979 Teledyne LeCroy Probe Probe 2 MHz
Description
The new T3CP100-2 from Teledyne Test Tools is a DC to 2 MHz bandwidth active AC/DC coupled probe, with 2 ranges of 100 A peak, 70 A rms / 10 A peak, 7 A rms. Fast and accurate waveform detection, rise time of ≤ 175 ns and low load of the test circuit. This probe can be used with any oscilloscope with a 1 MΩ BNC input.
This text is machine translated.
This text is machine translated.
Features
- Essential featuresAccurate and easy current measurementsMaximum AC peak current of 200 A.Dual range 10 A peak, 7 A rms / 100 A peak, 70 A rmsMaximum conductor voltage of ± 600 V.Measuring jaw size 12 mmAuto zero button and displayUse with any oscilloscope with a 1 MΩ input and BNC connectionPowered by a 9 V battery or power adapter (included).ApplicationsPerformance design and measurement of performance componentsConsumer electronics and household appliancesDomestic and industrial photovoltaic (PV) systems and maintenanceAutomotive and vehicle electronicsIndustrial and military electronicsService technicianResearch and developmentUniversities, general electronics and education
Scope of delivery
- Single Current Clamp Probe
