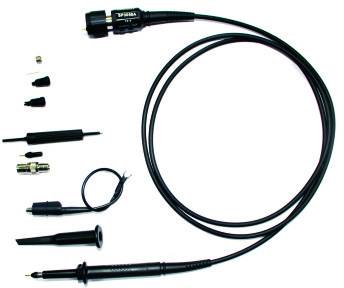

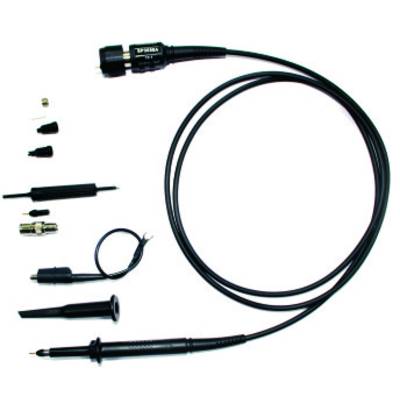

Teledyne LeCroy T3PP350 Probe 350 MHz 10:1 300 V, 600 V
EAN:
Part number:
Item no:
Number
Total (€ 244.99 / piece)
€ 244.99
incl. VAT
14-day return policy included
Highlights & Details
Passive probe T3PP350
- 10:1
- Bandwidth 350 MHz
Technical specifications
- Product type
Probe
- Bandwidth
350 MHz
- Divider voltage ratio
10:1
- Nominal voltage
300 V
600 V
- Input resistance
1 MΩ / 10 M Ω
Manufacturer's standards (no certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2267567 Teledyne LeCroy T3PP350 Probe 350 MHz 10:1 300 V, 600 V
Description
Passive probes are the standard probes supplied with most oscilloscopes. Typical passive probes offer 10:1 attenuation and a high 10 MΩ input resistance. This high input resistance means that passive probes are the ideal tool for low-frequency signals, as the load on the circuit is minimized at these frequencies. Teledyne LeCroy passive probes have a damping probe that instructs the oscilloscope to automatically scale waveforms without user input.
