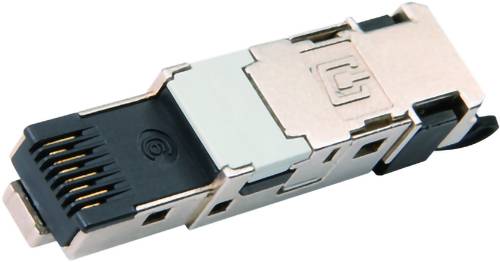

The field-installable RJ45 connector from the MPP8 series of Telegärtner can be mounted directly on the installation cable to connect terminals with RJ45 connection to the network; connection socket and patch cable are not required. The MFP8 series is the ideal solution for shielded Modular Plug Terminated Link (MPTL), End-to-End Links (E2E Links) and Direct Attach Cabling (DAC).
With the field-installable RJ45-plug by Telegärtner, terminals with RJ45-connection can be connected easily, quickly and safely to the installation cable. If the terminal is mounted over the cable outlet or if the cable is led into the protective housing of the device, the connection is invisible and inaccessible to unauthorized persons, WAS not only looks good, but also offers the user the decisive plus in protection against manipulation.

Specifications:
Connectors according to IEC 60603-7 RJ45 8P8C,
Suitable for 10 Gigabit Ethernet 10GBASE-T according to IEEE 802.3,
Suitable for Power over Ethernet plus according to IEEE 802.3at,
Color coding PROFINET,
For shielded cables,
multi-port enabled,
Assembled in 60 seconds without special tools,
Optimised for on-site assembly,
IDC insulation displacement contacts suitable for solid and stranded conductors,
Protection class IP20.
Suitable for cable external diameter 5.5 to 8.5 mm
Cable strain relief clip,
SAP product name CU-CN STXRJ45Plg field 22-26 CEA PNO

Notes: AWG22-26, with printed wire pre-sorting according to PROFINET, field ready for assembly
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Short term: STX IP20 RJ45 connector CAT.6 class EA (ISO/IEC)
