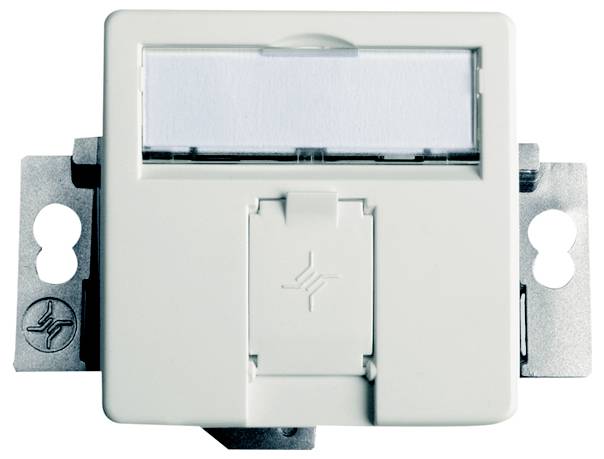

Telegärtner Network outlet Screw fastening Insert CAT 6A

Equipped for all situations: Telegärtner's wide variety of module photographs provide the right product for every need. Whether in the dado trunking, on or under the plaster. Either as an unpopulated version for individual placement or already pre-equipped with our high-performance modules. For the equipped versions, transmission characteristics according to CAT.6A, according to German EN 60603-7-51. The distance between the sockets of the tried and tested AMJ45 connection socket and the UAE connection socket is guaranteed. The user thus experiences unimagined design possibilities in coping with his daily wiring tasks.

Specifications:
With suitable module mounting I combinable with covers Diverser switch program manufacturer,
Central plate with clip-on and captive, transparent label field,
Design with low installation depth,
Simple installation in dado trunking, ground box or below ground floor,
Separate potential connection option,
To accommodate up to 3 AMJ modules,

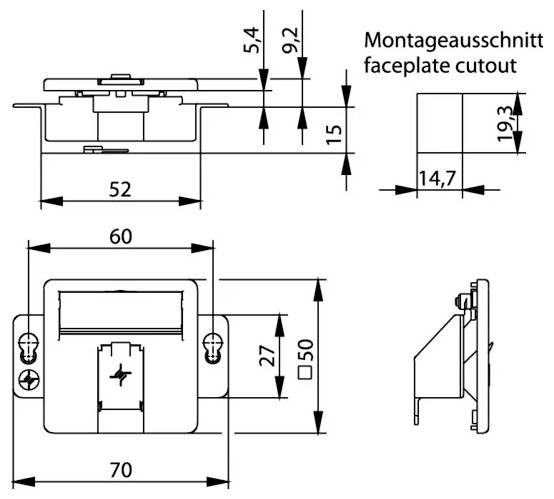

Universal, world wide available installation for mounting cutouts of 19.3 x 14.7 mm

Notes: Appropriate electronic boxes must be provided for cable ducts and under floor; 45° outlet for flush mounting
Fire protection class: Not relevant
Burning drip: Not relevant
Smoke emission: Not relevant
Acid development: Not relevant
Design: 1-way UP/50 incl. module carrier, labeling window and protective flap, unfitted
Colour: Alpine white
Series: AMJ-SL; AMJ-S; AMJ CAT.8.1 module; AMJ module K; AMJ coupling K; UMJ module K; UMJ coupling K
Short name: Module mount 50x50

This text is machine translated.
