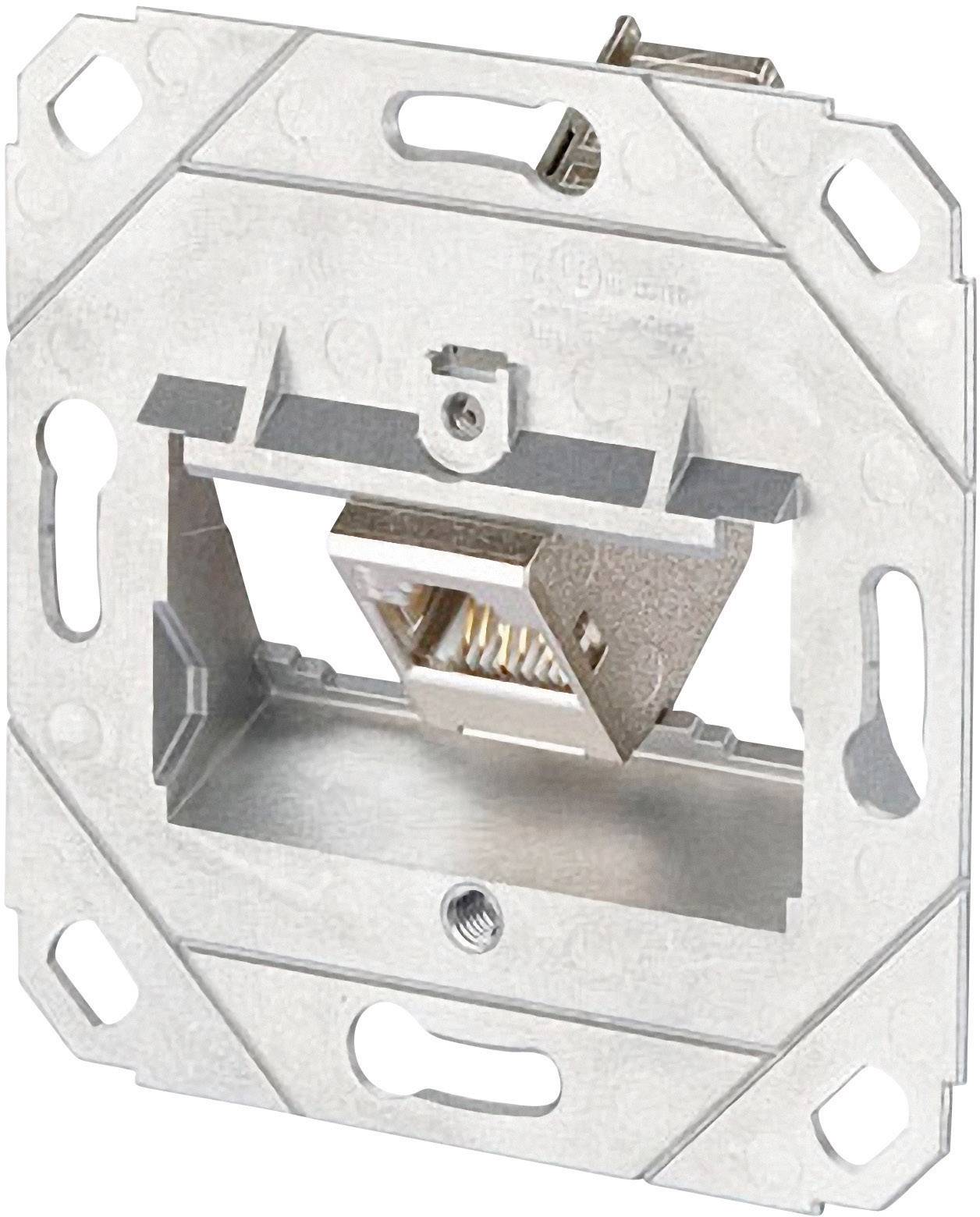

Metz Connect Network outlet Flush mount Insert CAT 6A 1 port
EAN:
Part number:
Item no:
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
E-DAT module 1 port UP0 Cat. 6A
Highlights & Details
- Channel connection unit with E-DAT module
- Cat 6 de-embedded GHMT PVP certified.
- Compliance with the class EA according to ISO/IEC 11801
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert
CAT 6A
- No. of LAN ports
1 x
- Features
Modular
- Factory colour
Multicolour
- Switch type function
Network junction box
- Switch type component
Insert
- Port
1 port
- Weight
0.10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 995182 Metz Connect Network outlet Flush mount Insert CAT 6A 1 port
Description
Modular junction box for building a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The only two-part, very robust, nickel-plated die-cast zinc module allows the installer to connect easily and in the shortest possible time without special tools. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality of the individual modules. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2, 3
This text is machine translated.
This text is machine translated.
Features
- Tested: Link up to 500 MHz
- For 10 GBit Ethernet (IEEE 802.3an)
- Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
- Easy to mount connection of 2 to 4-pair data cable AWG 24/1 - 22/1 and stranded conductors with a 7-wire copper wire AWG 26/7 to BTR 8-way IDC terminals
- Insert direction of the module inclined 45° downward
- Cord grip with cable binder at the module
- Compatible with central design pieces of switch programs (Note 3 Port center pieces currently only available from the company JUNG)
- Not suitable for mounting in standard flush-mounting and hollow wall cup!
Hints
The thickness of the center pieces from different manufacturers can vary. Therefore, short screws M2.5 x 6 mm and M2.5 x 10.5 mm for fixing the different center pieces here by default in delivery.
