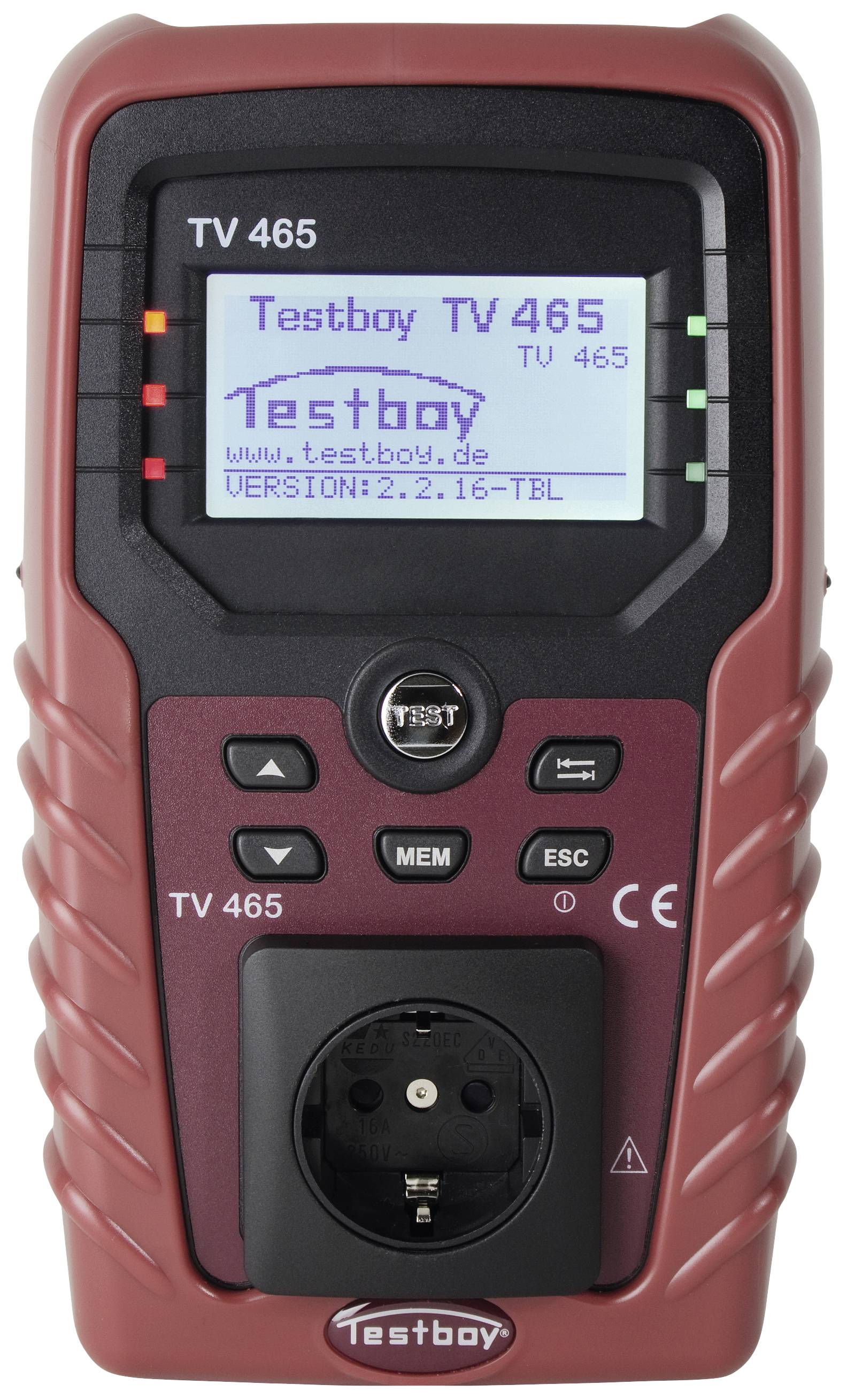

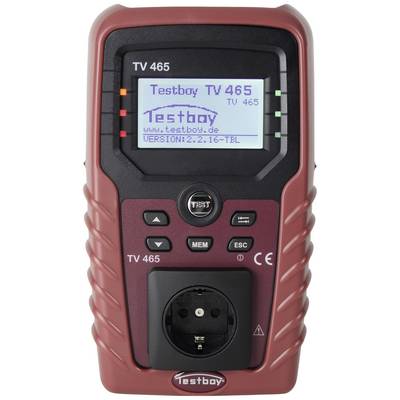

Testboy TV 465 PRO Equipment tester VDE standard 0701-0702
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 920.17 / piece)
€ 920.17
plus VAT.
Technical specifications
- Ground wire resistance 0 Ω to 1999 Ω
- Insulation resistance 0 MΩ to 199.9 Ω
- Leakage current 0 mA to 20.0 mA
- Measurement voltage 0 V to 300 V.
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
RS232
- Dim
(L x W x H) 70 x 130 x 230 mm
- Weight
1032 g
Protection class I
Protection class II
Protection class III
- Reading range (VDE)
Earth leakage resistance
Insulation resistance
Leakage current
Voltage
- Display type
Digital (LCD)
- Width
130 mm
- Height
230 mm
- Length
70 mm
- Voltage supply
Battery
- Type
TV 465 PRO
- VDE standard
0701-0702
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2885787 Testboy TV 465 PRO Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 2885787 Testboy TV 465 PRO Equipment tester VDE standard 0701-0702
Description
The Testboy TV 465 PRO is a power-independent device tester for the testing of mobile devices according to DIN VDE 0701-0702. It can be used to test electrical devices such as tools with on/off switches, heating devices, motor devices, lights, multiple distributors and household appliances quickly and easily. Thanks to the pre-programmed test sequences, the menu-driven help function and the positive/negative statements, it is particularly easy to use.
This text is machine translated.
This text is machine translated.
Features
- Tested according to VDE0701-0702, DGUV regulation 3 (former BGV A3), BetrSichV, ÖVE/Norm E 8701/E 8702
- Preset limiting values according to VDE standard
- VDE preprogrammed or self-defined test sequences of device classes I, II, III.
- Built-in compensation module
- Automatic selection of measuring range
- Menu-driven help function
- Large LCD display with integrated backlight
- Battery capacity sufficient for approx. 2600 samples (depending on the number of measurements)
- Integrated charger
- A quick test is possible
- Memory expansion and software
Scope of delivery
- Power supply adapter + 6 x 1.2V batteries NiMH
- Interface cables
- Test lead
- Test probe
- Alligator clamps
- Bag
