Buy Testec TT-SI 7005 Differential probe 60 MHz 1:1, 5:1, 10:1

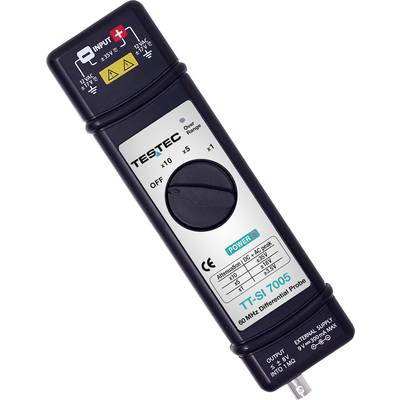

Electronic measuring probe 'Testec TT-SI 7005' with adjustable damping controller, suitable for voltage measurements up to 60 MHz.

Black power adapter with cable and plug, suitable for electronic devices.

'Plug system with two connection plugs: red on top, black on bottom, both with grey casings and electrical safety symbols.'

A black audio cable with two plugs at the ends, suitable for various audio devices and applications.

1/4

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 340.34 / piece)

€ 340.34

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

Active differential probe TT-SI 7005

1:1, 5:1, 10:1
Bandwidth 60 MHz

Technical specifications

DC accuracy ±2

Slew rate: 5.8 ns
7 ns
23 ns

Input capacity: 2.5 pF

Input resistance: 1 M Ω

Height: 30 mm

Length: 195 mm

Width: 55 mm

Divider voltage ratio: 1:1
5:1
10:1

: Manufacturer's standards (no certificate)

Reading category: CAT III 35V

Bandwidth: 60 MHz

Weight: 250 g

Product type: Differential probe

Documents & Downloads

Datasheet

Datasheet 2255390 Testec TT-SI 7005 Differential probe 60 MHz 1:1, 5:1, 10:1

User & Safety Instructions

User & Safety Instructions 2255390 Testec TT-SI 7005 Differential probe 60 MHz 1:1, 5:1, 10:1

Information

Information 2255390 Testec TT-SI 7005 Differential probe 60 MHz 1:1, 5:1, 10:1

Description

The active differential probe TT-SI 7005 enables safe and accurate high-voltage measurements between two voltage points, whereby none is related to mass. This probe is designed for a variety of measurements with up to 60MHz / ± 35V and compatible with grounded oscilloscopes from all major manufacturers. The power is supplied via the supplied mains adapter.
