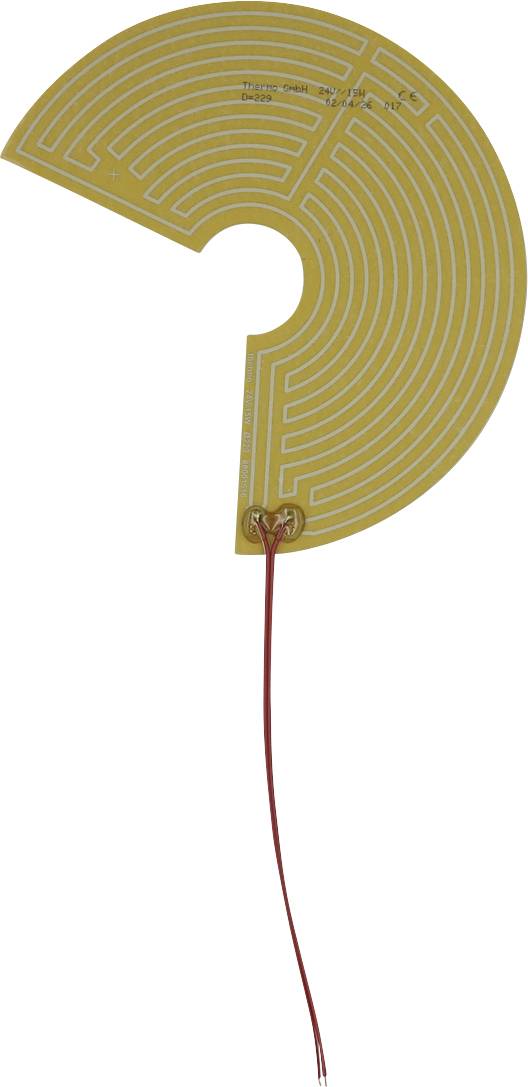

Thermo TECH Polyester Heating foil 24 V AC, 24 V DC 15 W IP rating IPX4 (Ø) 229 mm
Product type
Heating foil
Operating voltage
24 V AC
24 V DC
Power
15 W
IP rating
IPX4
(Ø)
229 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 22.99 / piece)
€ 22.99
incl. VAT
Only 5 Piece(s) available
Technical specifications
- Heat density 0.036 W/cm²
- Product type
Heating foil
- Operating voltage
24 V AC
24 V DC
15 W
- Material
Polyester
- Material thickness
0.3 mm
IPX4
- Min. surface temperature
-40 °C
- Max. surface temperature
+90 °C
- (Ø)
229 mm
- Dim
(Ø) 229 mm
Documents & Downloads
Datasheet
Datasheet 3742749 Thermo TECH Polyester Heating foil 24 V AC, 24 V DC 15 W IP rating IPX4 (Ø) 229 mm
User & Safety Instructions
User & Safety Instructions 3742749 Thermo TECH Polyester Heating foil 24 V AC, 24 V DC 15 W IP rating IPX4 (Ø) 229 mm
Description
Self-adhesive on one side, connection cable FL 2x 0.38 mm² x 250 mm
This text is machine translated.
This text is machine translated.
Hints
Due to a high heating power which may be referred to the surface, the heating foil can overheat depending on the installation situation and be destroyed without sufficient cooling or temperature control! Please pay attention to the installation instructions and notes!
