Thicon Models 56002 Hydraulics set 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Hydraulics set
- Compatible with (details)
3-axle rear tipper
- Dim
(Ø x H) 34 mm x 52 mm
- Content
1 pc(s)
- Length
63.4 mm
- Width
85 mm
- Height
52 mm
- (Ø)
34 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2390626 Thicon Models 56002 Hydraulics set 1 pc(s)
Description

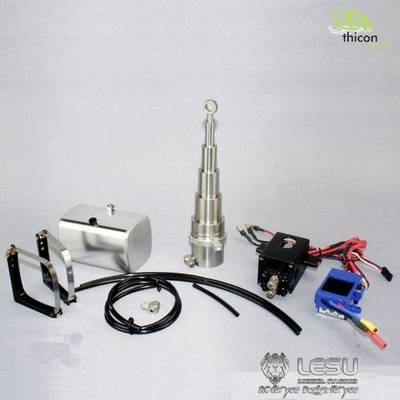

Hydraulic set for rear tipper 3-axle consisting of:
Telescopic cylinder, hydraulic pump with brushless motor, brushless regulator, hydraulic tank in scale-look with tank bracket, hose.
This text is machine translated.
Telescopic cylinder, hydraulic pump with brushless motor, brushless regulator, hydraulic tank in scale-look with tank bracket, hose.
This text is machine translated.
Features
- Telescopic cylinders:
- Lifting capacity approx. 30 kg
- Stroke: 74 mm, length extended: 143 mm, length retracted: 69 mm
- Diameter: Basic cylinder: 34 mm. Stufe1:21 mm, Stufe2:15 mm, Stufe3:9 mm, Eye:8.1 mm
- Hydraulic connection M5 to 4 mm hose. Wide cylinder mounting 57.8 mm M3
- Pump:
- Length without connections: 63.4 mm, width 35 mm, height: 35 mm, width with mounting bracket: 59 mm, 4xM3
- Hydraulic connection M5 to 4 mm hose.
- 7.4 - 11.1 V, approx. 20 bar
- Tank:
- Width 85 mm, Height 52 mm, Depth 52 mm
- Tank holder 54 x 54 x 9 mm.
