TinkerForge 2104 Expansion board Suitable for (single board PCs) TinkerForge 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 29.99 / piece)
€ 29.99
incl. VAT
Only 6 Piece(s) available
Highlights & Details

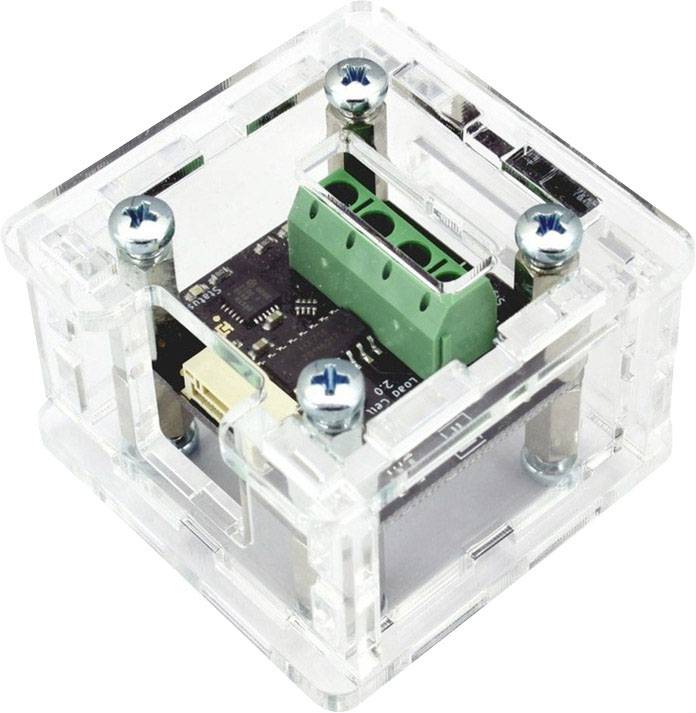

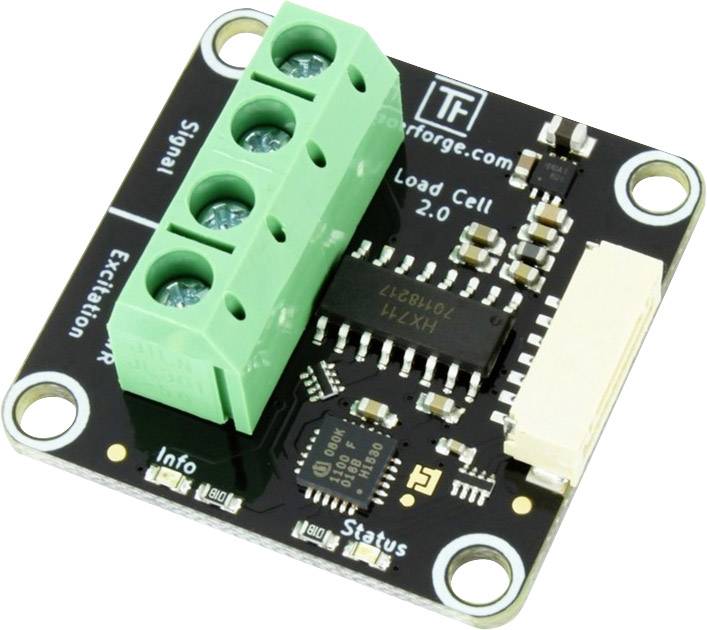

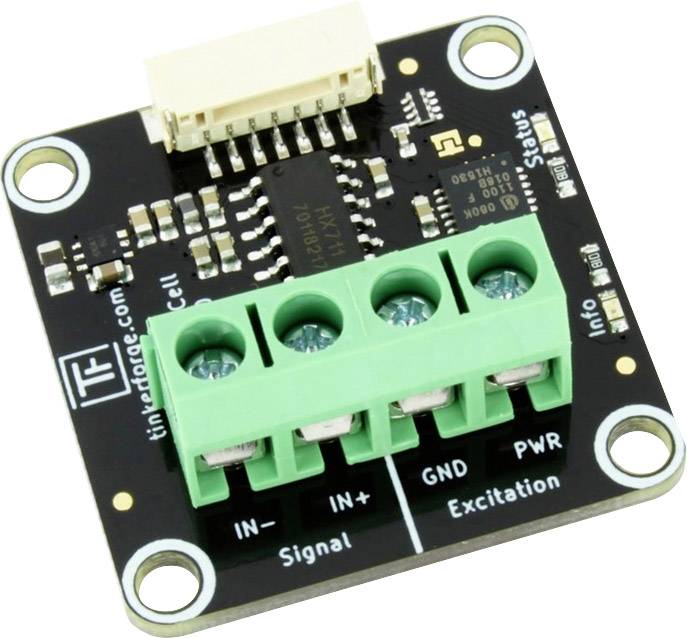

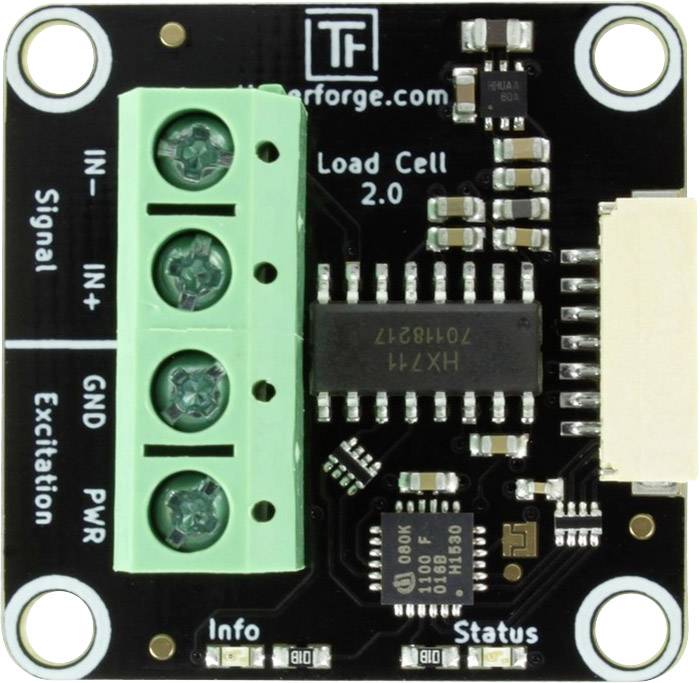

TinkerForge Load Cell Bricklet 2.0
- Measures the output of load cell
- 24Bit A/D converter for high resolution
- Up to 80 weight measurements per second
Technical specifications
- Dimensions (W x D x H): 30x30x14 mm
- Weight 7.3 g
- Product type
Expansion board
- Suitable for
TinkerForge
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2255007 TinkerForge 2104 Expansion board Suitable for (single board PCs) TinkerForge 1 pc(s)
Description
With the Load Cell Bricklet 2.0, Bricks can read load cells. Only one known weight is required for calibration of the load cell. It is possible to determine weight differences of a few grams between objects that weigh many kilograms themselves.
On the Bricklet there is an LED which can be switched on and off by means of API, for example to indicate that the measured weight lies in a certain range.
The Bricklet has no galvanic separation to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. If this leads to unwanted connections, ground loops or short-circuits in the respective application, the use together with an insulator Bricklet is advisable.
The Load Cell Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
On the Bricklet there is an LED which can be switched on and off by means of API, for example to indicate that the measured weight lies in a certain range.
The Bricklet has no galvanic separation to the Tinkerforge system. This means that there is a direct electrical connection between the terminals of the Bricklet and the rest of the system. If this leads to unwanted connections, ground loops or short-circuits in the respective application, the use together with an insulator Bricklet is advisable.
The Load Cell Bricklet 2.0 has a 7-pin Bricklet plug and is connected with a 7p-10p Bricklet cable with a brick.
This text is machine translated.
Features
- Sensor: HX711
- Power consumption: 54mW (10.8mA at 5V)
- Resolution: 24Bit
