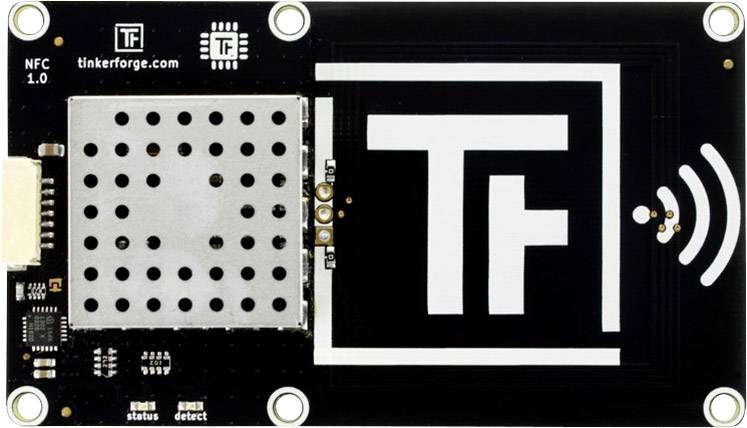

A NFC 1.0 circuit board from Tinkerforge with a large 'TF' logo on the right and a metal mesh on the left.

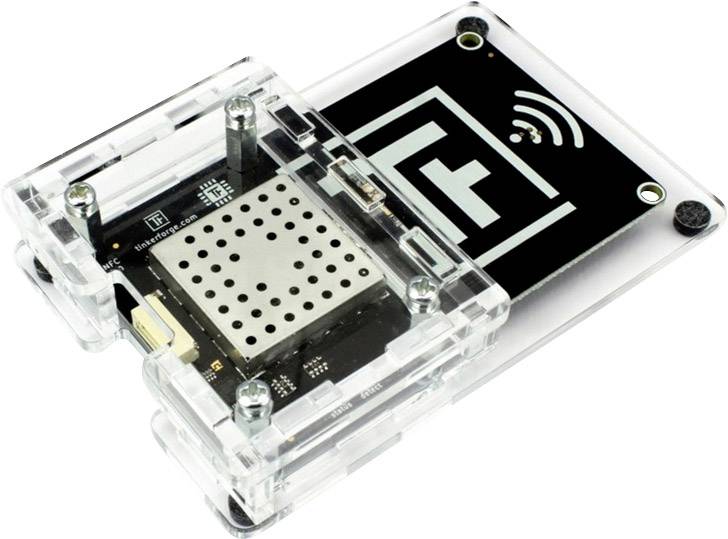

A transparent casing with an electronic component showing the Wi-Fi symbol and a "T". Used for wireless communication.

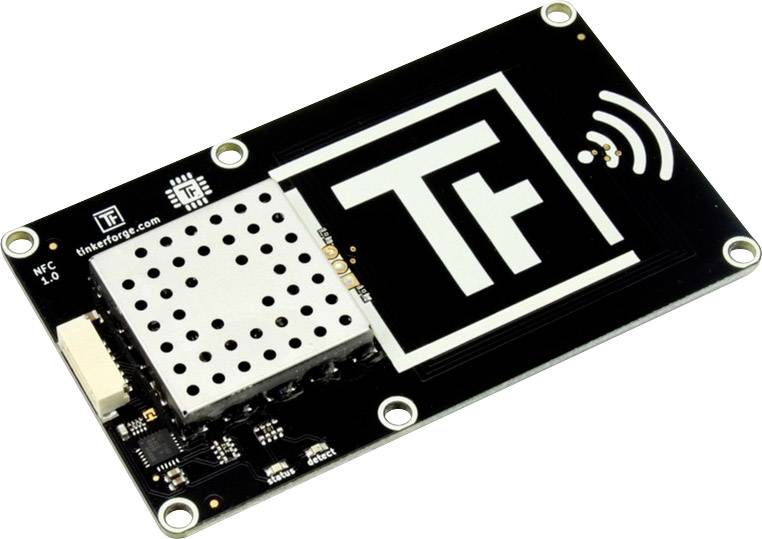

An electronic circuit board with the inscription 'Tf' and an NFC logo on it, likely for NFC applications.

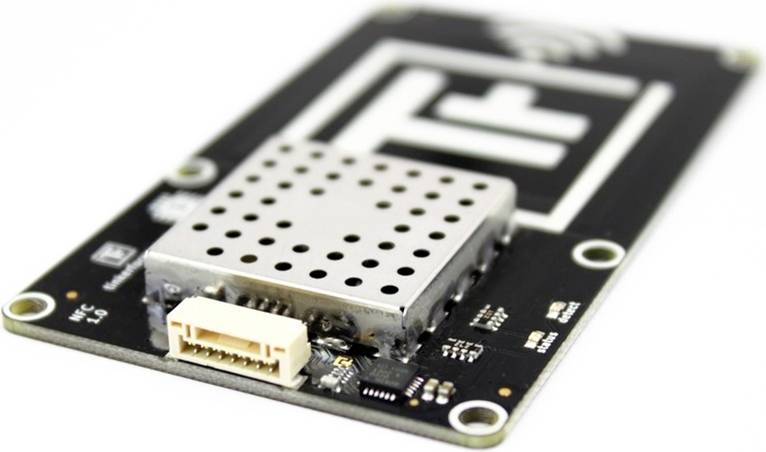

Electronic circuit board with a metallic, perforated module in the centre, connection socket on the side; most likely a radio sensor.

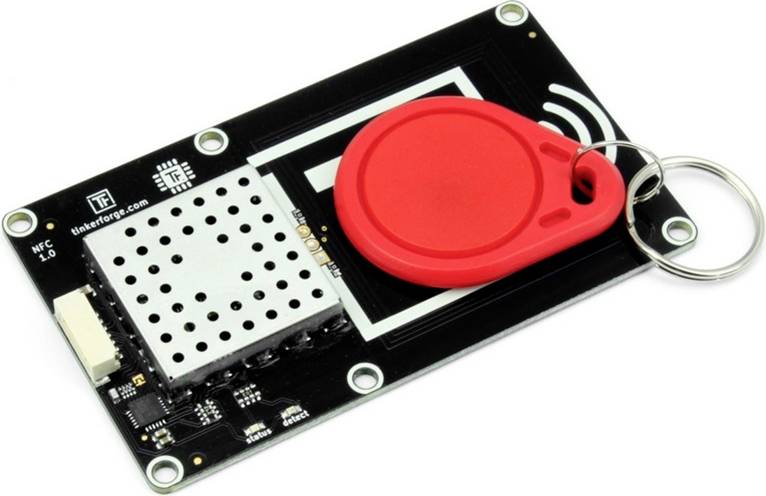

A PCB with a red RFID tag on it. The board has connectors and displays an NFC (Near Field Communication) logo.
1/5
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 61.99 / piece)
€ 61.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

TinkerForge 286 NFC Bricklet

  • Reads and writes NFC Forum Type 1, 2, 3, 4 and Mifare Classic Tags.
  • NDEF data records can be read and written directly with API.
  • Supports NFC P2P operating modes
  • Supports card emulation operating modes
  • Range is limited to 10cm (3.94")

Technical specifications

  • Dimensions (W x D x H): 85x50x7 mm
  • Weight: 18 g
Product type

NFC module

Suitable for

TinkerForge

Content

1 pc(s)

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2255057 TinkerForge 286 NFC module Suitable for (single board PCs) TinkerForge 1 pc(s)

Description

The NFC Bricklet extends the functionality of the bricks by providing the ability to read and write NFC tags. All you need to do is place an NFC tag near (up to 10cm) the brick.

NFC Forum Type 1, 2, 3, 4 and Mifare Classic Tags are supported. Direct page access is available and it is possible to read or write NDEF messages directly via the API.

The Bricklet also supports card emulation and NFC P2P communication.

The NFC Bricklet has a 7-pin Bricklet connector and is connected to a brick with a 7p-10p Bricklet cable.

This text is machine translated.

Features

  • NFC IC: PN7150
  • Power consumption: 24mW (~5mA at 5V)
  • supported tags: Mifare Classic, NFC Forum Type 1, 2, 3 and 4
  • supported modes: Read/write tag, P2P, card emulation
  • Working frequency: 13.56 MHz
