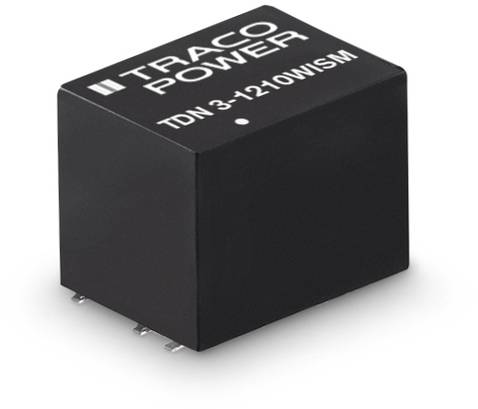

TracoPower TDN 3-2411WISM DC/DC converter (SMD) 600 mA 3 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 18.48 / piece)
€ 18.48
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
TDN 3WISM
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
600 mA
- Output current (max.) - rounded
600 mA
- Efficiency (max.)
80 %
3 W
- Insulation voltage
1600 V DC
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
70 °C
- Dim
(L x W x H) 14.20 x 9.10 x 10.20 mm
- Height
10.20 mm
- Length
14.20 mm
- Width
9.10 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5.0 V DC
- Output voltage (min.)
5.0 V DC
- Weight
2.70 g
- Content
1 pc(s)
