TracoPower TEL 15-2411N-HS DC/DC converter 5.1 V DC 2.9 A 15 W
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 10
Total (€ 32.99 / piece)
€ 329.90
incl. VAT
14-day return policy included
Highlights & Details
DC/DC converter, TEL 15N-HS-series
- Output 5.1 V DC / 2.9 A
- Power 15 W
Technical specifications
- Product type
DC/DC converter
- Input voltage (max.)
36 V DC
- Max. output current
2.9 A
- Output current (max.) - rounded
2.9 A
- Min. input voltage
18 V DC
- Dim
(L x W x H) 24.40 x 14.30 x 24.40 mm
- Output voltage (max.)
5.1 V DC
15 W
- No. of outputs
1 x
- Type
closed
- Operating temperature (max.)
+70 °C
- Operating temperature (min.)
-40 °C
- Weight
14.2 g
- Width
14.30 mm
- Height
24.40 mm
- Length
24.40 mm
- Type
TEL 15-2411N-HS
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3373054 TracoPower TEL 15-2411N-HS DC/DC converter 5.1 V DC 2.9 A 15 W
User & Safety Instructions
User & Safety Instructions 3373054 TracoPower TEL 15-2411N-HS DC/DC converter 5.1 V DC 2.9 A 15 W
Warranty Terms
Warranty Terms 3373054 TracoPower TEL 15-2411N-HS DC/DC converter 5.1 V DC 2.9 A 15 W
Description

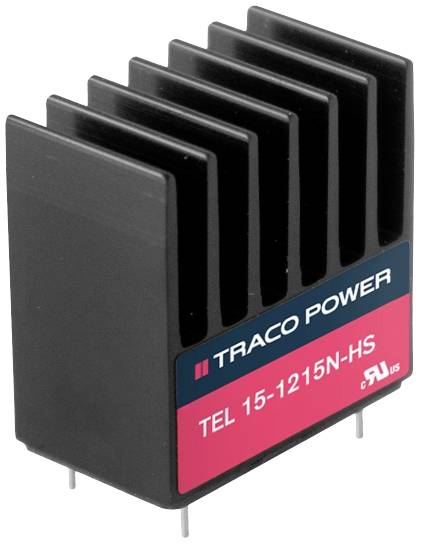

The TEL 15N-HS series combines current specifications in terms of reliability and cost efficiency. These DC/DC converters are housed in ultra-compact DIL-16 metal housings. You have an integrated heat sink. Efficiency of up to 87% allows reliable operation with full load at an ambient temperature of up to +70°C. This series is rounded off by a built-in filter according to EN 55032, class A and a wide 2:1 input range. The TEL 15N-HS series offers a low-cost solution for applications in industry, communications and IT areas.
This text is machine translated.
This text is machine translated.
Features
- Ultra-compact 15 watt converter in the DIL-16 metallic casing
- Continue with 2:1 input
- Integrated heat sink
- E/A-INSULATION 1500 VDC
- Input filter in accordance with EN 55032, class A
- Protection against overload and short circuit
Scope of delivery
- 10 pieces
