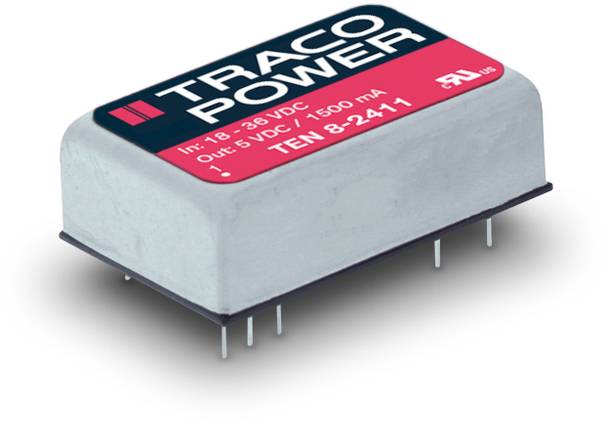

TracoPower TEN 8-2411 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 8 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Only 7 Piece(s) available
Highlights & Details
TracoPower TEN 8-2411 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 8 W No. of outputs: 1 x Content 1 pc(s)
- 3-year manufacturer's guarantee
Technical specifications
- Control deviations: For input variation max. ± 0.2 %, for load variation max. ±1 %
- Product type
DC/DC converter (print)
- Type
TEN 8-2411
- Nominal voltage
24 V DC
- Min. input voltage
18 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
5 V DC
- Max. output current
1.5 A
- Output current (max.) - rounded
1.5 A
- Efficiency (max.)
83 %
8 W
- Insulation voltage
1500 V DC
- Enclosure
DIL 24
- Connection
Solder pins
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 32 x 20 x 10 mm
- Height
10 mm
- Length
32 mm
- Width
20 mm
- Content
1 pc(s)
8 W
- Output voltage
5 V DC
- Output current (details)
1.5 A
- Type
TEN 8 Series
- Operating temperature
(above 70 ºC power reduction 3.3 %/K) -40 - +85 ºC
- Casing
DIP-24, SMD
Documents & Downloads
Datasheet
Datasheet 154268 TracoPower TEN 8-2411 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 8 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 154268 TracoPower TEN 8-2411 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 8 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 154268 TracoPower TEN 8-2411 DC/DC converter (print) 24 V DC 5 V DC 1.5 A 8 W No. of outputs: 1 x Content 1 pc(s)
Description
Wide 2:1 input voltage range, input filter according to EN 55022, class A and FCC, level A with no external components.
