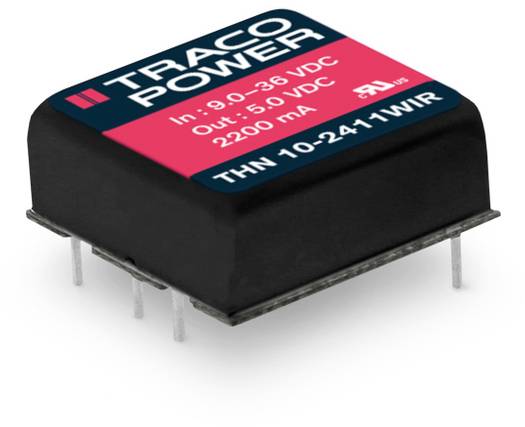

TracoPower THN 10-2411WIR DC/DC converter (print) 2 A 10 W No. of outputs: 1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 37.81 / piece)
€ 37.81
plus VAT.
Only 9 Piece(s) available
Technical specifications
- Product type
DC/DC converter (print)
- Type
THN 10-2411WIR
- Min. input voltage
9 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Max. output current
2 A
- Output current (max.) - rounded
2 A
- Efficiency (max.)
89 %
10 W
- Insulation voltage
3000 V DC
- Connection
Solder pins
- PSU features
DC-to-DC converter
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
80 °C
- Dim
(L x W x H) 25.4 x 25.4 x 9.9 mm
- Height
9.9 mm
- Length
25.4 mm
- Width
25.4 mm
- RoHS-compliant
Yes
- Output voltage (max.)
5.0 V DC
- Output voltage (min.)
5.0 V DC
- Weight
16.5 g
- Content
1 pc(s)
