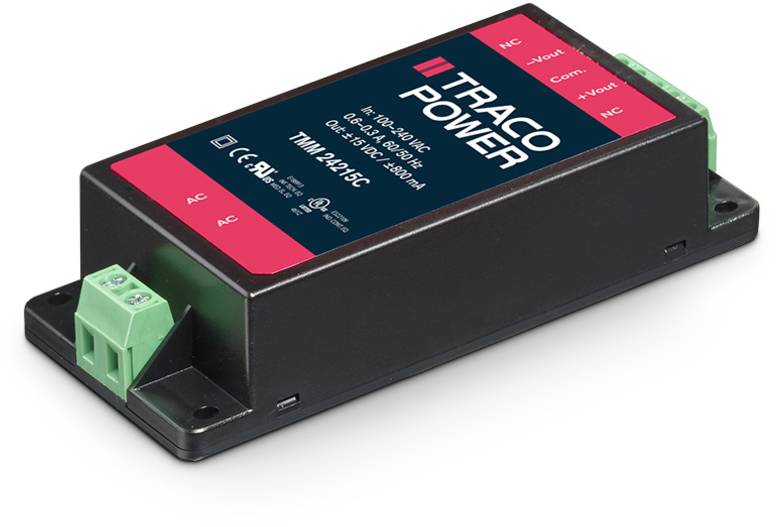

TracoPower TMM 24215C AC/DC PSU (print) 24 W
Part number:
Item no:
Datasheet (PDF)
Number
Minimum order quantity: 5
Total (€ 97.99 / piece)
€ 489.95
incl. VAT
14-day return policy included
Highlights & Details
AC/DC SW.-MOD. POWER SUPPLY, 24 W, ±15 V/±0.8 A
- Output /
- Power 24 W
Technical specifications
- Product type
AC/DC PSU (print)
- Input voltage (max.)
264 V AC
- Min. input voltage
85 V AC
- Dim
(L x W x H) 96 x 54 x 23.3 mm
24 W
- No. of outputs
2 x
- Operating temperature (max.)
80 °C
- Max. operating temperature (derating)
90 °C
- Min. operating temperature (derating)
65 °C
- Operating temperature (min.)
-40 °C
- Weight
147 g
- Width
54 mm
- Height
23.3 mm
- Length
96 mm
- Type
TMM 24215C
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3370102 TracoPower TMM 24215C AC/DC PSU (print) 24 W
Datasheet 3370102 TracoPower TMM 24215C AC/DC PSU (print) 24 W
User & Safety Instructions
User & Safety Instructions 3370102 TracoPower TMM 24215C AC/DC PSU (print) 24 W
Warranty Terms
Warranty Terms 3370102 TracoPower TMM 24215C AC/DC PSU (print) 24 W
Description
The switching power supplies of the TMM 24 series offer ultra-compact, completely sealed modules with reinforced/double I/O insulation according to the latest safety standards 60601-3, 3rd edition for 2 x MOPP (Means Of Patient Protection). Due to their high degree of efficiency and the use of high-quality components, these modules can be used in a working temperature range from –40°C to +65°C, with a power reduction of 50% even up to +80°C. Due to their good EMC properties, they can be used not only in medical applications but also in demanding industrial and transport applications.
This text is machine translated.
This text is machine translated.
Scope of delivery
- AC/DC-switched power supply
