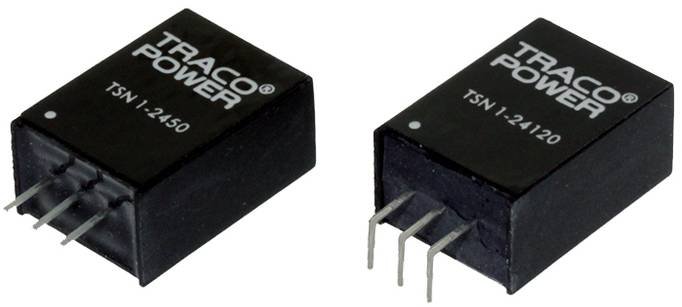

TracoPower TSN 1-24120 DC/DC converter (print) 24 V DC 11 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 14.28
30
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 14.28 / piece)
€ 142.80
plus VAT.
14-day return policy included
Technical specifications
- Product type
DC/DC converter (print)
- Type
TSN 1-24120
- Nominal voltage
24 V DC
- Min. input voltage
8 V DC
- Input voltage (max.)
32 V DC
- No. of outputs
1 x
- Output voltages
11 V DC
- Max. output current
-1 A
- Efficiency (max.)
96 %
- Connection
Solder pins
- PSU features
Surge protection
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 11.7 x 20.6 x 11.6 mm
- Height
11.6 mm
- Length
11.7 mm
- Width
20.6 mm
- Output voltage (max.)
-12 V DC
- Output voltage (min.)
-12 V DC
- Weight
3.1 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371489 TracoPower TSN 1-24120 DC/DC converter (print) 24 V DC 11 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371489 TracoPower TSN 1-24120 DC/DC converter (print) 24 V DC 11 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371489 TracoPower TSN 1-24120 DC/DC converter (print) 24 V DC 11 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371489 TracoPower TSN 1-24120 DC/DC converter (print) 24 V DC 11 V DC -1 A No. of outputs: 1 x Content 1 pc(s)
Description
Not insulated converter for the negative output, pin-compatible with LM79xx-linear regulators. Protection against overload, short-circuit and overheating. Excellent behavior in the case of input and load change, low standby current.
This text is machine translated.
This text is machine translated.
