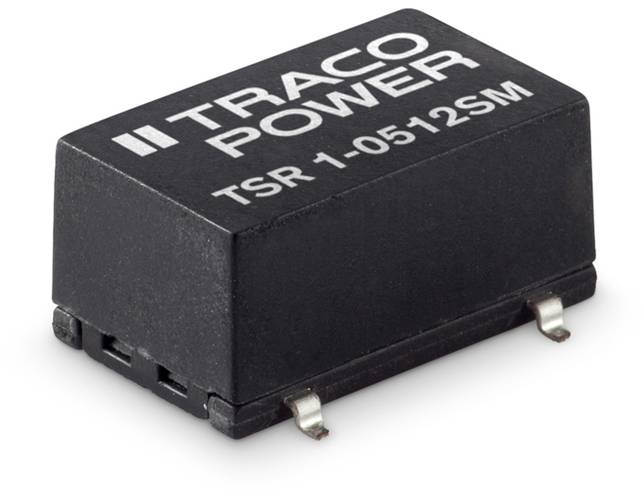

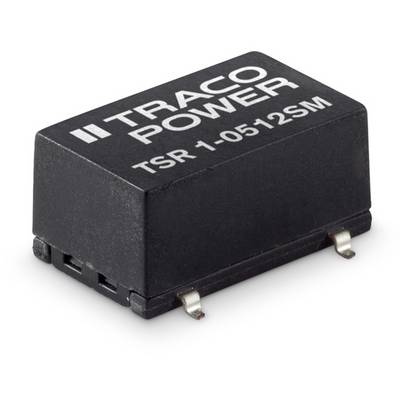

TracoPower TSR 1-2412SM DC/DC converter (SMD) 24 V DC 1.2 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 10.92
30
6% = € 0.61
€ 10.31
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 10.92 / piece)
€ 109.20
plus VAT.
Technical specifications
- Product type
DC/DC converter (SMD)
- Type
TSR 1-2412SM
- Nominal voltage
24 V DC
- Min. input voltage
4.6 V DC
- Input voltage (max.)
36 V DC
- No. of outputs
1 x
- Output voltages
1.2 V DC
- Max. output current
1 A
- Output current (max.) - rounded
1 A
- Efficiency (max.)
74 %
- Enclosure
SMD
- Connection
SMD
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Dim
(L x W x H) 15.2 x 11.8 x 7.6 mm
- Height
7.6 mm
- Length
15.2 mm
- Width
11.8 mm
- Output voltage (max.)
1.2 V DC
- Output voltage (min.)
1.2 V DC
- Weight
1.7 g
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3371496 TracoPower TSR 1-2412SM DC/DC converter (SMD) 24 V DC 1.2 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
Datasheet 3371496 TracoPower TSR 1-2412SM DC/DC converter (SMD) 24 V DC 1.2 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3371496 TracoPower TSR 1-2412SM DC/DC converter (SMD) 24 V DC 1.2 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 3371496 TracoPower TSR 1-2412SM DC/DC converter (SMD) 24 V DC 1.2 V DC 1 A No. of outputs: 1 x Content 1 pc(s)
Description
Not insulated converters in the compact SMD housing. Short-circuit proof, no heat sink required, excellent behavior in the case of input and load change, low standby current.
