TracoPower TZL 300-4812 DC/DC converter (module) 48 V DC 12 V DC 26.7 A 300 W No. of outputs: 1 x Content 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 265.00 / piece)
€ 265.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
DC/DC converter (module)
- Type
TZL 300-4812
- Nominal voltage
48 V DC
- Min. input voltage
4.5 V DC
- Input voltage (max.)
9 V DC
- No. of outputs
1 x
- Output voltages
12 V DC
- Max. output current
26.7 A
- Output current (max.) - rounded
26.7 A
- Efficiency (max.)
80 %
300 W
- Insulation voltage
1500 V DC
- Connection
Screw terminal
- Operating temperature (min.)
-10 °C
- Operating temperature (max.)
60 °C
- Dim
(L x W x H) 224 x 115 x 50 mm
- Height
50 mm
- Length
224 mm
- Width
115 mm
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Weight
1050 g
- Content
1 pc(s)
- Type
Cta 300-4812
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 1511386 TracoPower TZL 300-4812 DC/DC converter (module) 48 V DC 12 V DC 26.7 A 300 W No. of outputs: 1 x Content 1 pc(s)
Datasheet 1511386 TracoPower TZL 300-4812 DC/DC converter (module) 48 V DC 12 V DC 26.7 A 300 W No. of outputs: 1 x Content 1 pc(s)
Warranty Terms
Warranty Terms 1511386 TracoPower TZL 300-4812 DC/DC converter (module) 48 V DC 12 V DC 26.7 A 300 W No. of outputs: 1 x Content 1 pc(s)
Description

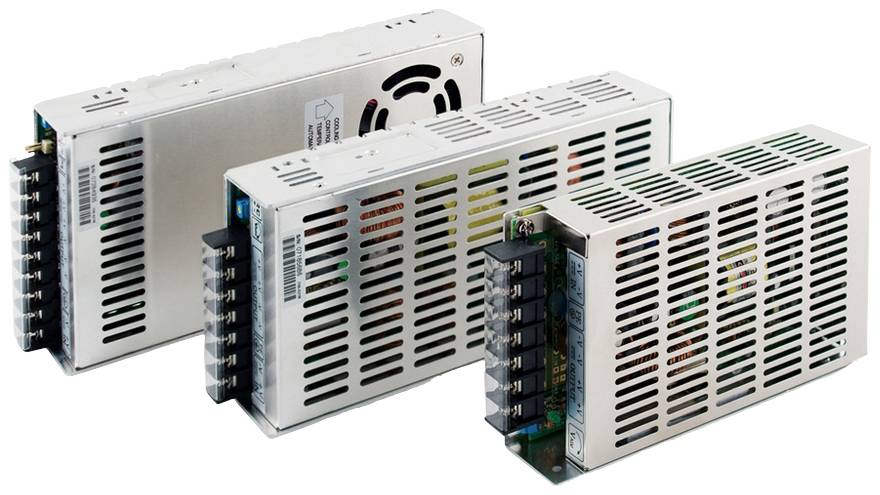

Compact metal casing with screw terminal, 2:1 input range, input/output insulation 1500 V/DC, reverse polarity protection at the input, short-circuit proof. Soft start, Low inrush current surge.
This text is machine translated.
