TRU COMPONENTS 1587859 TC-R13-537A B/R/G Pushbutton 250 V AC 10 A 2 x Off/On latch 1 pc(s)

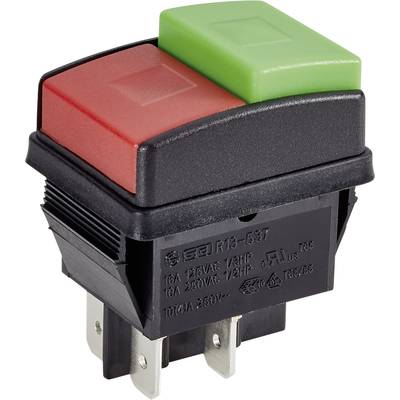

Switch with red 'Off' and green 'On' button, suitable for 16A/125VAC, 10A/250VAC. Multiple plug contacts for electrical connection.

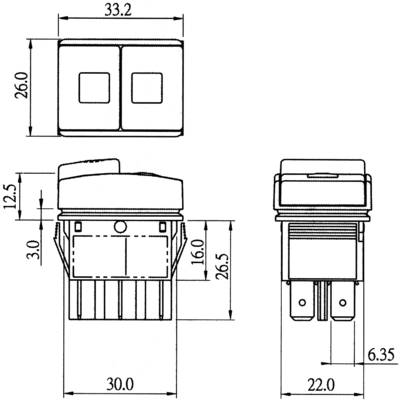

Technical drawing of a switch with dimensions: width 33.2 mm, height 30 mm, depth 26.5 mm. Side and rear views included.

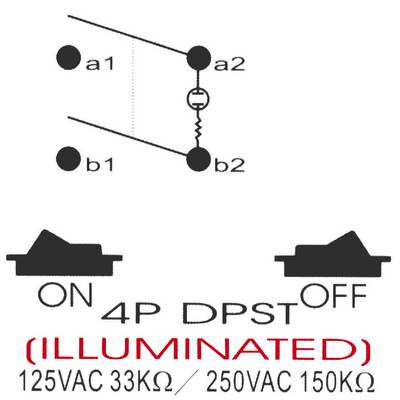

Diagram of an illuminated 4-pole double-pole changeover switch. Top: Circuit diagram. Bottom: 'ON 4P DPST OFF', voltage and resistance values.

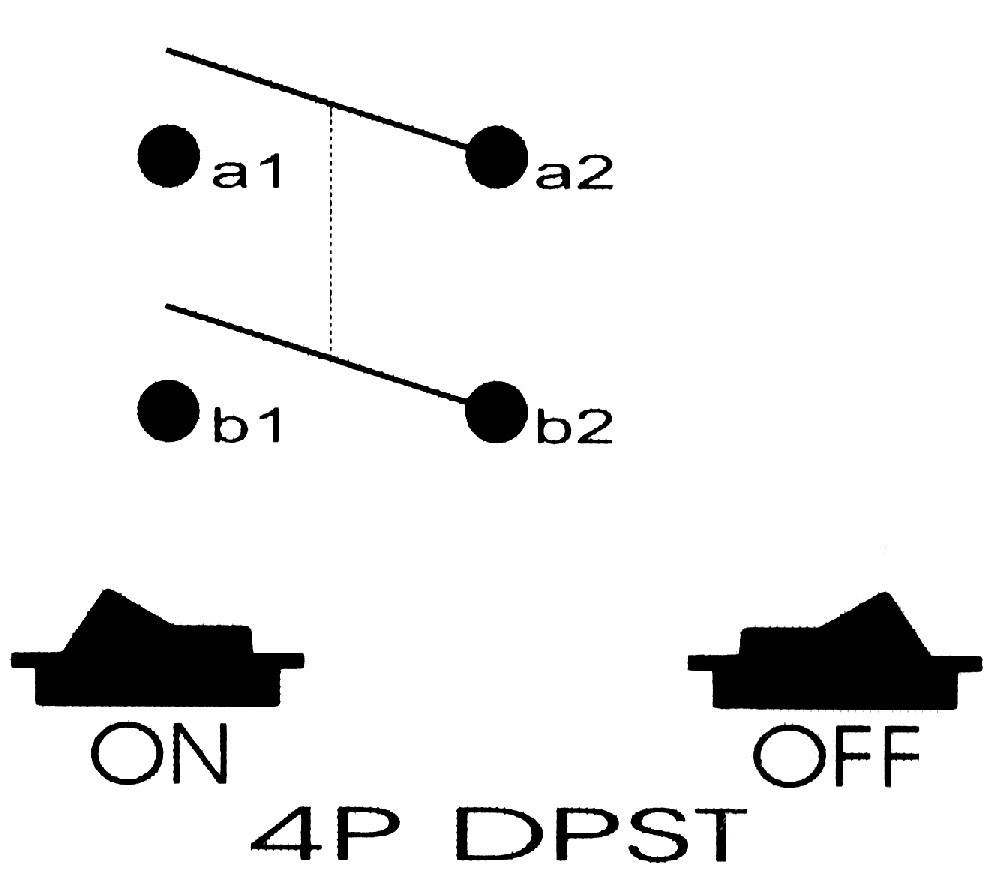

Circuit diagram of a 4-pole DPST switch with two states: 'ON' and 'OFF'. Contacts a1, b1, a2, b2 are connected in the 'ON' state.
1/4
Product type
Pushbutton
Lighting type
None
Switch position
2 x Off/On
Connection
Type C CEE 7/16 plug 6.3 mm
Switching voltage
250 V AC
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Tue 3 Nov
293 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 4.33 / piece)
€ 4.33
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Push button switch 250 V/AC 10 A

Our service for you

  • 'powered by SCI PARTS' appears on the right side of a logo in red text on a white background.

Technical specifications

  • Polyamide frame and rocker (UL Flame: 94-2)
Product type

Pushbutton

Switch/button features

Protruding

Casing/button colour

Black

Red

Green

Functions

latch

Lighting type

None

Switch position

2 x Off/On

Material

Plastic

Connection

Type C CEE 7/16 plug 6.3 mm

Contact resistance

50 mΩ

Switching voltage

250 V AC

Switching current (max.)

10 A

Dielectric strength

1500 V/AC 1 minute

Content

1 pc(s)

Insulation resistance

(500 V/DC) at least 100 MΩ

RoHS-compliant

Yes

Front panel cut-out

30.8 x 22.2 mm

Board thickness (max.)

3 mm

Type

TC-R13-537A B/R/G

Documents & Downloads

Datasheet

Datasheet 1587859 TRU COMPONENTS 1587859 TC-R13-537A B/R/G Pushbutton 250 V AC 10 A 2 x Off/On latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1587859 TRU COMPONENTS 1587859 TC-R13-537A B/R/G Pushbutton 250 V AC 10 A 2 x Off/On latch 1 pc(s)

Description

On/off switch for "snap-in" mounting

Hints

With description of switching position, the value in brackets are intended which deal with button function.
