Name: TRU COMPONENTS DC gearmotor TC-NPG240405 TC-13609508 24 V DC 0.6 A 0.294 Nm 92 U/min Shaft diameter: 6 mm 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3402377
Availability: InStock

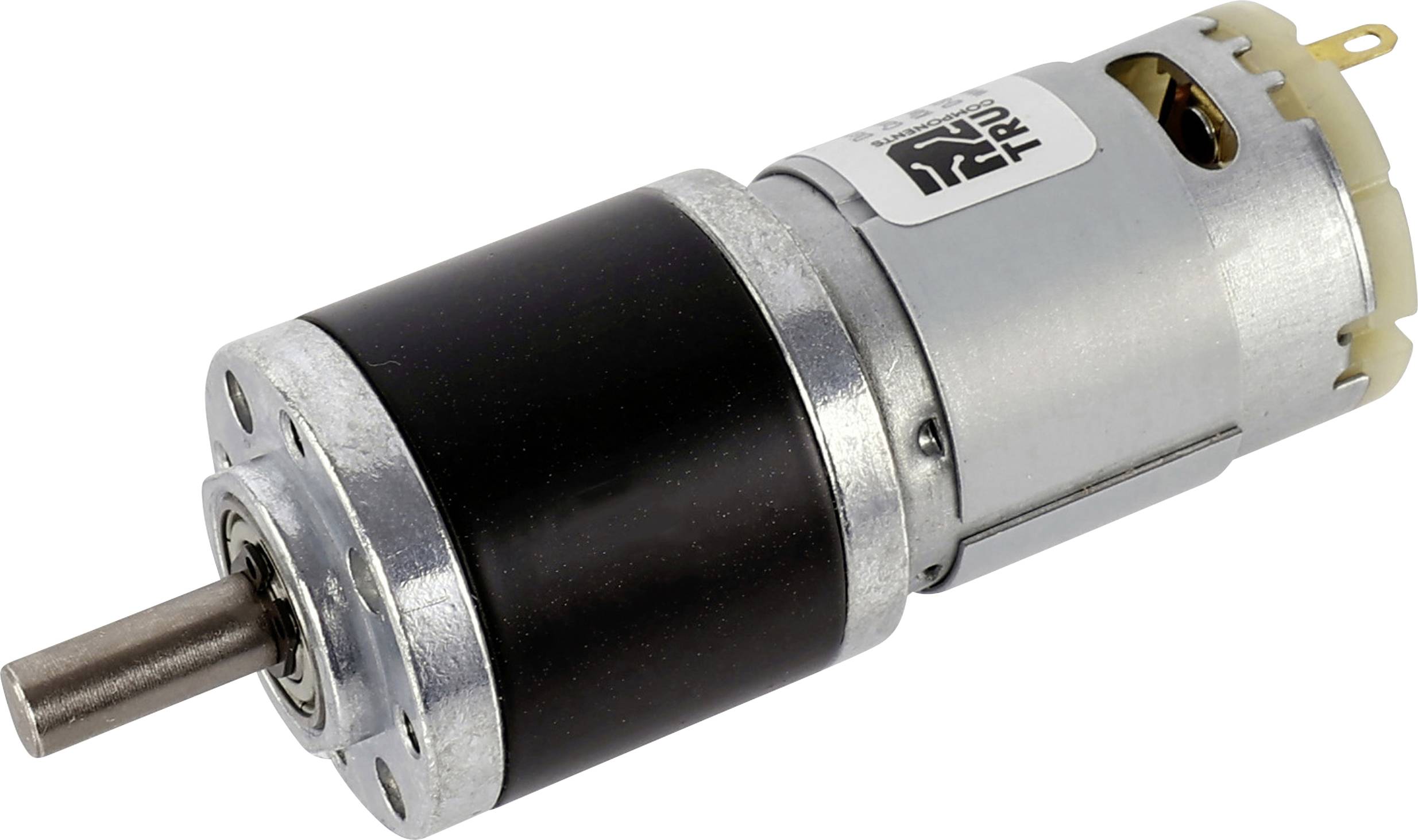

A small DC motor with a cylindrical metal housing and attached gear mechanism, designed for robotics and precise mechanical applications.

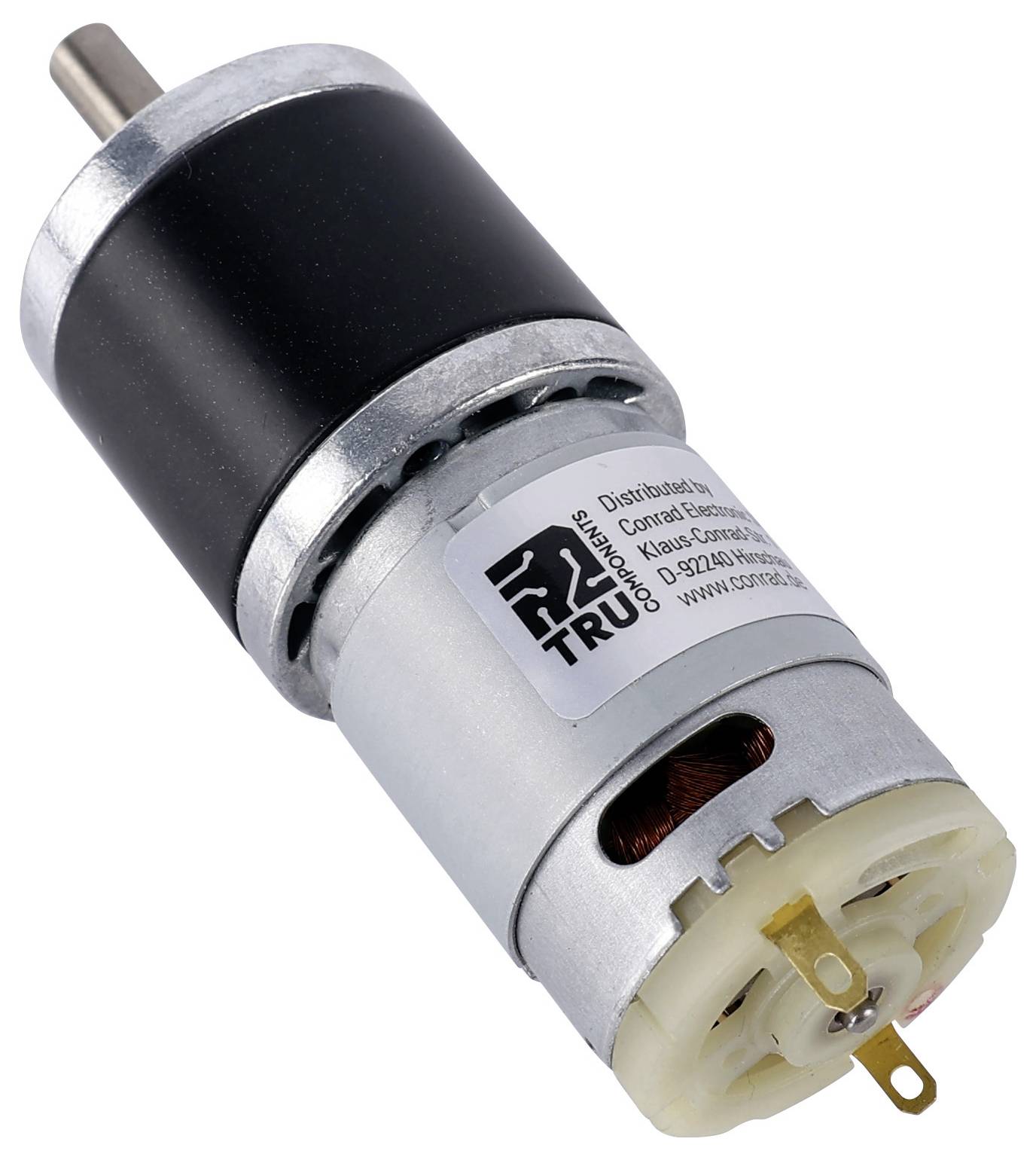

A cylindrical metal and plastic gear motor with an attached silver-toned shaft, black casing, and label displaying the manufacturer's details.

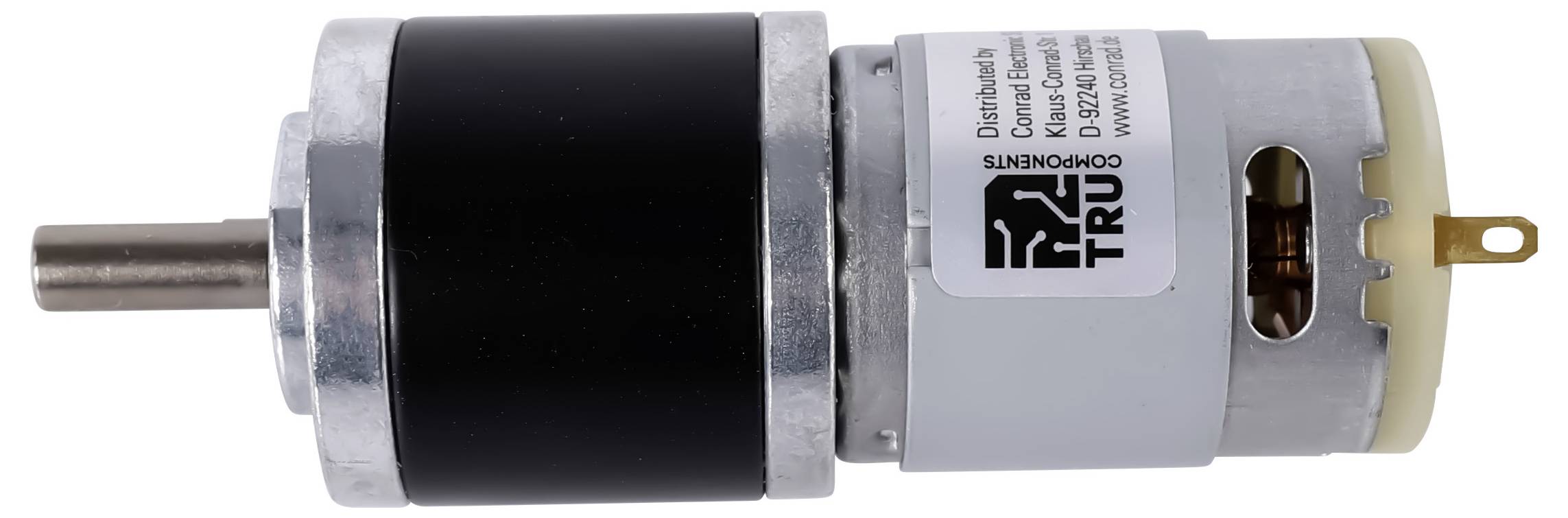

'A cylindrical electric motor with visible gears and a rotating shaft on the left side, labeled with a manufacturer's sticker.'

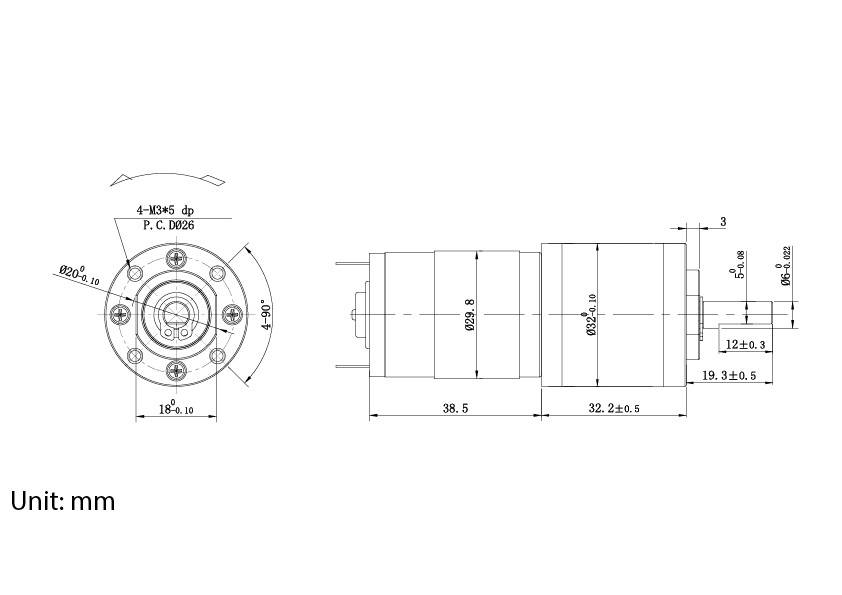

Technical drawing of a cylindrical mechanical part with detailed measurements in millimeters, showing side and end views.

1/4

Datasheet (PDF)

Fast track dispatch on Fri 23 Oct

32 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC Planetary gear motor 24 V DC 0.294 Nm

DC planetary gear modor without encoder
Nominal voltage: 24 V DC
Nominal current: 0.6 A
Shaft diameter: 6 mm
Norminal RPM: 92 U/min
Rotation direction: CCW

Technical specifications

Product type: DC gearmotor

Type: TC-NPG240405

Nominal voltage: 24 V DC

Nominal current: 0.6 A

Nominal current - rounded value: 600 mA

Nominal RPM: 92 U/min

Features: Epicyclic gear train

Drive torque: 0.294 Nm

Manufacturer part #: TC-13609508

Type: Without encoder

Shaft Ø: 6 mm

Nominal torque: 0.294 Nm

Gear reduction (details): Planetengetriebe

Idle speed: 92 U/min

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Shaft Ø

Nominal torque

Nominal RPM

Nominal voltage

TRU COMPONENTS DC gearmotor TC-NPG240405 TC-13609508 24 V DC 0.6 A 0.294 Nm 92 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402377

Fast track dispatch on Fri 23 Oct

32 Piece(s)Conrad Electronic

This article

600 mA

6 mm

0.294 Nm

92 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

TRU COMPONENTS DC gearmotor TC-NPG1206006 TC-13609492 12 V DC 1.0 A 0.034 Nm 1043 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402373

Fast track dispatch on Fri 23 Oct

39 Piece(s)Conrad Electronic

1 A

6 mm

0.034 Nm

1043 U/min

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

TRU COMPONENTS DC gearmotor TC-NPG120605 TC-13609496 12 V DC 1.0 A 0.294 Nm 92 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402374

Fast track dispatch on Fri 23 Oct

31 Piece(s)Conrad Electronic

1 A

6 mm

0.294 Nm

92 U/min

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

TRU COMPONENTS DC gearmotor TC-NPG120615 TC-13609500 12 V DC 1.0 A 2.06 Nm 11 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402375

Fast track dispatch on Fri 23 Oct

69 Piece(s)Conrad Electronic

1 A

6 mm

2.06 Nm

11 U/min

12 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

TRU COMPONENTS DC gearmotor TC-NPG2404005 TC-13609504 24 V DC 0.6 A 0.034 Nm 1043 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402376

Fast track dispatch on Fri 23 Oct

28 Piece(s)Conrad Electronic

600 mA

6 mm

0.034 Nm

1043 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 46.99^*

TRU COMPONENTS DC gearmotor TC-NPG240408 TC-13609512 24 V DC 0.5 A 0.64 Nm 49 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402378

Fast track dispatch on Fri 23 Oct

45 Piece(s)Conrad Electronic

500 mA

6 mm

0.64 Nm

49 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 48.99^*

TRU COMPONENTS DC gearmotor TC-NPG240428 TC-13609516 24 V DC 0.6 A 2.06 Nm 11 U/min Shaft diameter: 6 mm 1 pc(s)

Item no:3402379

Fast track dispatch on Fri 23 Oct

69 Piece(s)Conrad Electronic

600 mA

6 mm

2.06 Nm

11 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 53.99^*

TRU COMPONENTS DC gearmotor TC-NPG242018 TC-13609520 24 V DC 2.8 A 0.18 Nm 1290 U/min Shaft diameter: 8 mm 1 pc(s)

Item no:3402380

Fast track dispatch on Fri 23 Oct

31 Piece(s)Conrad Electronic

2.8 A

8 mm

0.18 Nm

1290 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

TRU COMPONENTS DC gearmotor TC-NPG242018BL TC-13609524 24 V DC 2.5 A 0.22 Nm 1335 U/min Shaft diameter: 8 mm 1 pc(s)

Item no:3402381

Fast track dispatch on Fri 23 Oct

47 Piece(s)Conrad Electronic

2.5 A

8 mm

0.22 Nm

1335 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 129.99^*

TRU COMPONENTS DC gearmotor TC-NPG242048 TC-13609528 24 V DC 3.8 A 0.5 Nm 499 U/min Shaft diameter: 8 mm 1 pc(s)

Item no:3402382

Fast track dispatch on Fri 23 Oct

37 Piece(s)Conrad Electronic

3.8 A

8 mm

0.5 Nm

499 U/min

24 V DC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Documents & Downloads

Datasheet

Datasheet 3402377 TRU COMPONENTS DC gearmotor TC-NPG240405 TC-13609508 24 V DC 0.6 A 0.294 Nm 92 U/min Shaft diameter: 6 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3402377 TRU COMPONENTS DC gearmotor TC-NPG240405 TC-13609508 24 V DC 0.6 A 0.294 Nm 92 U/min Shaft diameter: 6 mm 1 pc(s)
