Name: TRU COMPONENTS DC gearmotor TC-NPG242048BL TC-13609532 24 V DC 2.5 A 0.65 Nm 470 U/min Shaft diameter: 8 mm 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3402383
Availability: InStock

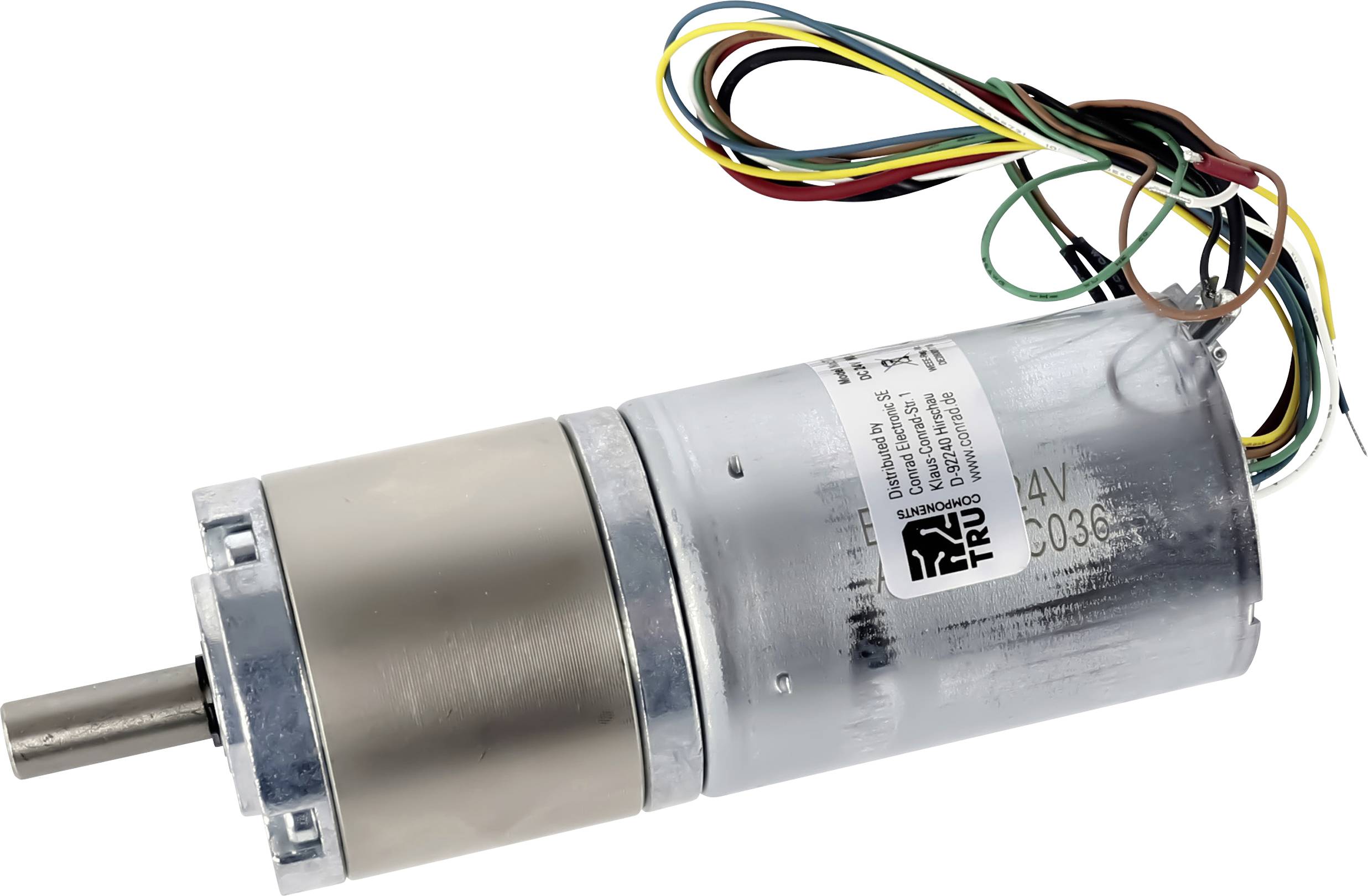

A cylindrical DC motor with a gearbox and colorful wires extending from one end, labeled as 24V with identification markings.

A cylindrical motor with a metallic finish, featuring a label with technical specifications and connectors on one end.

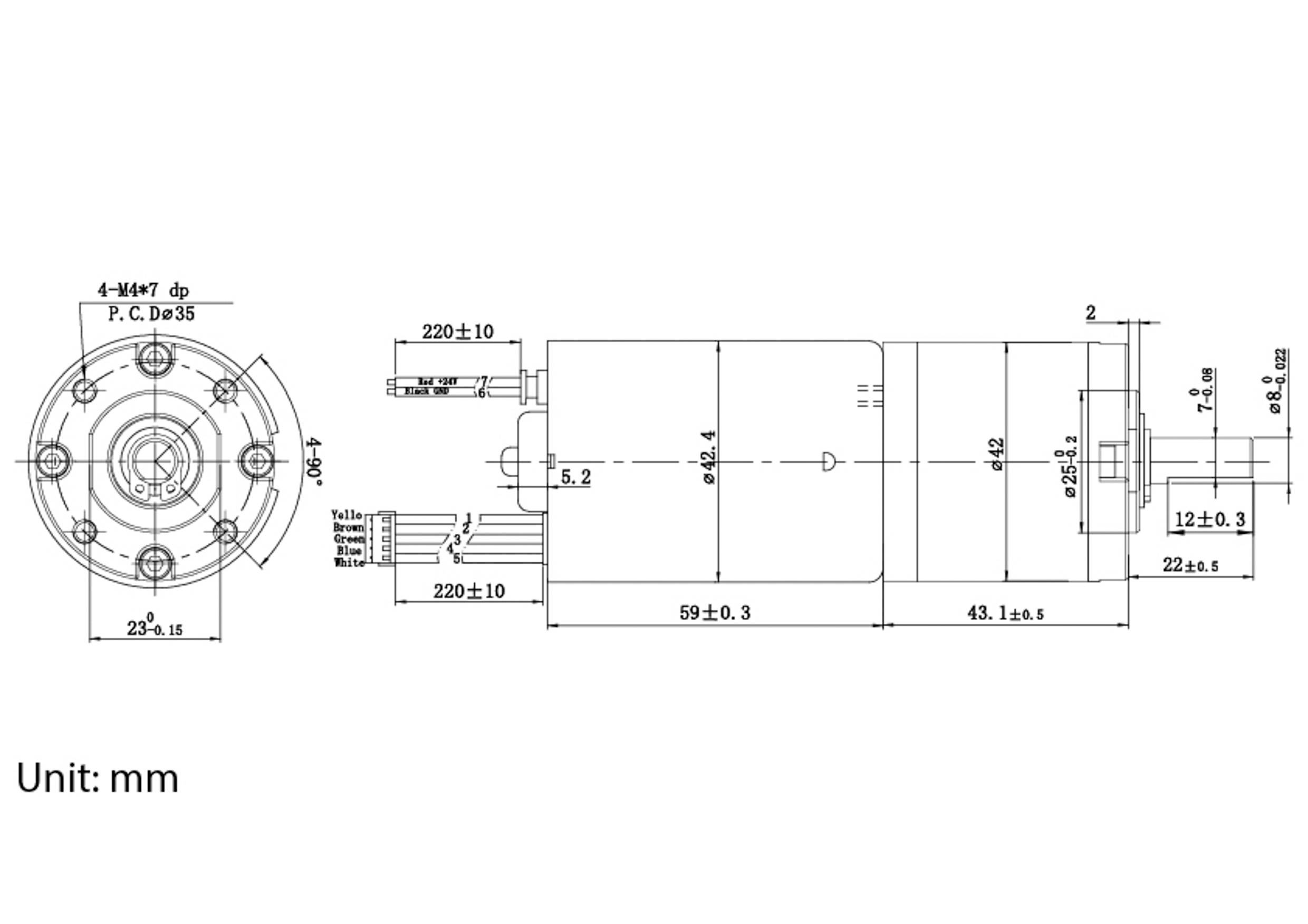

'Technical drawing of a cylindrical motor with dimensions labeled in millimeters, showing top and side views with mounting hole details.'

1/3

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

46 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 134.99 / piece)

€ 134.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Brushless DC Planetary gear motor 24 V DC 0.65 Nm

Brushless DC planetary gear modor without encoder
Nominal voltage: 24 V DC
Nominal current: 2.5 A
Shaft diameter: 8 mm
Norminal RPM: 470 U/min
Rotation direction: CW / CCW

Technical specifications

Product type: DC gearmotor

Type: TC-NPG242048BL

Nominal voltage: 24 V DC

Nominal current: 2.5 A

Nominal current - rounded value: 2.5 A

Nominal RPM: 470 U/min

Features: Brushless

Drive torque: 0.65 Nm

Manufacturer part #: TC-13609532

Type: Without encoder

Shaft Ø: 8 mm

Nominal torque: 0.65 Nm

Plastic free packaging: Plastic-free packaging
