Name: TRU COMPONENTS DC gearmotor TC-NPG2422 TC-13609544 24 V DC 3.8 A 2.0 Nm 95 U/min Shaft diameter: 8 mm 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3402386
Availability: InStock

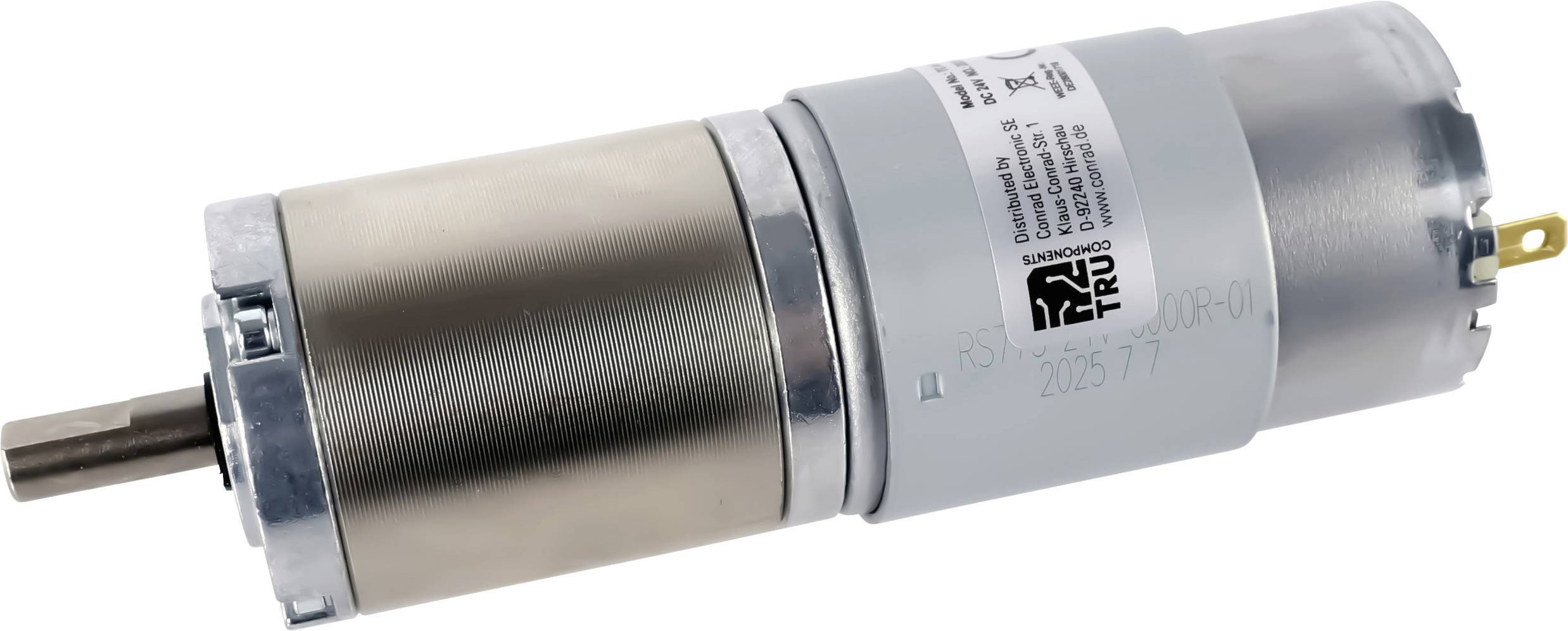

A cylindrical metal DC motor with a labeled component on the side, showing a gear shaft on one end, used for mechanical power transmission.

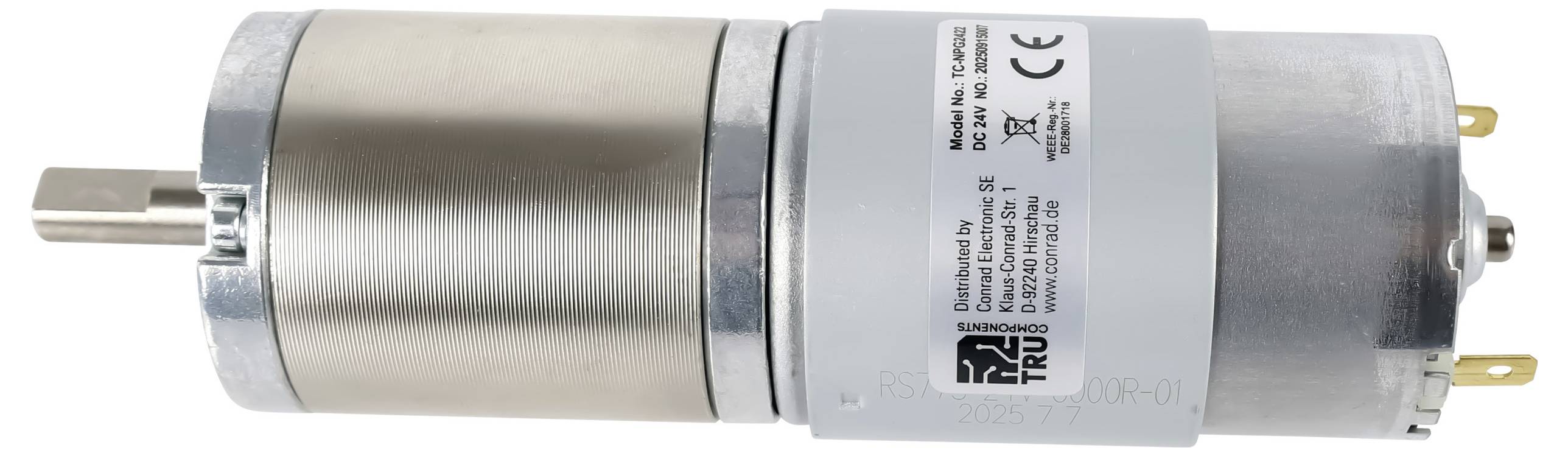

A small electric motor with a cylindrical metal body and label indicating technical specifications and compliance certifications.

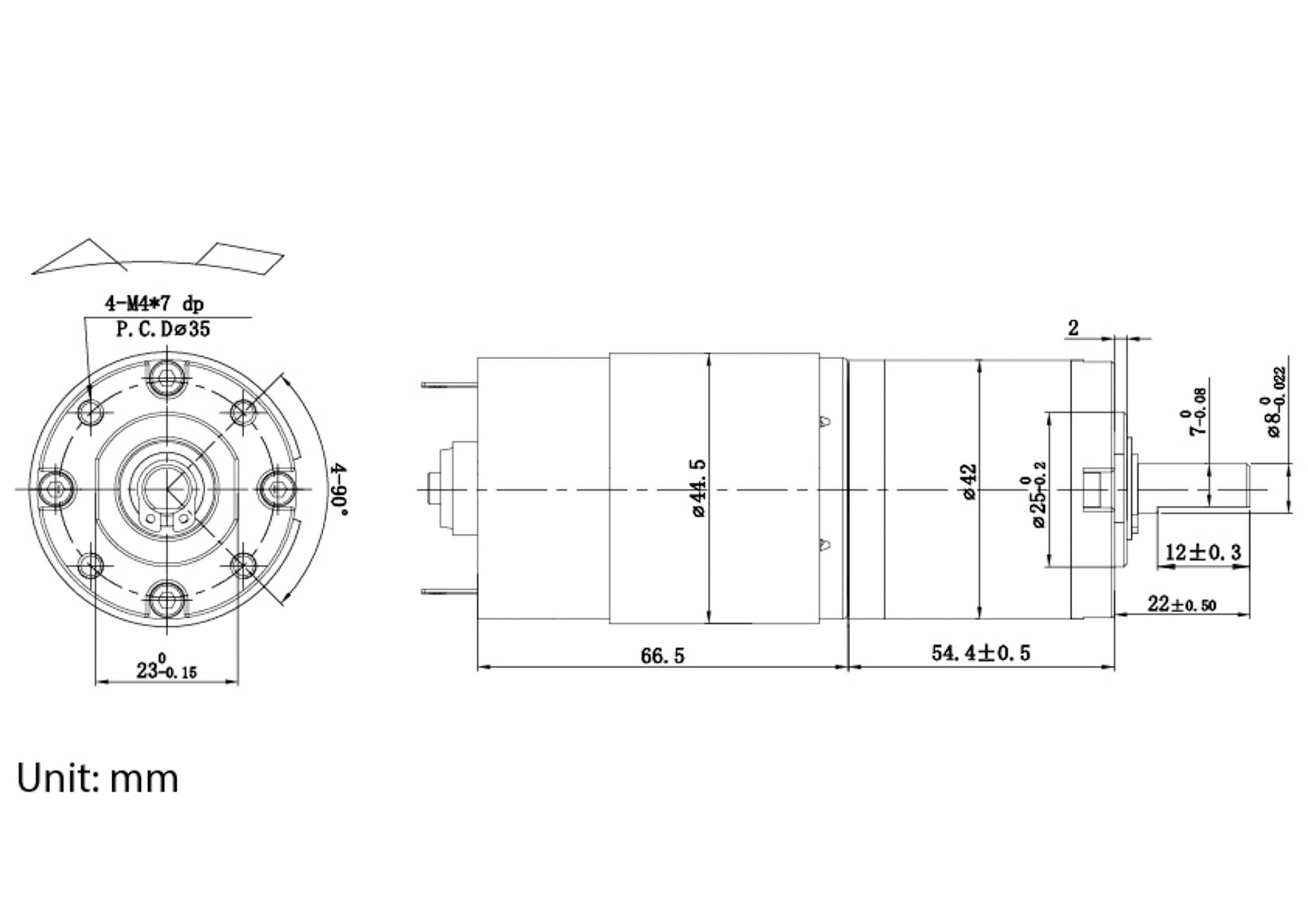

Technical diagram showing dimensions of a cylindrical component with labels in millimeters, including overall length, diameter, and hole placements.

1/3

Datasheet (PDF)

Fast track dispatch on Tue 27 Oct

44 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DC Planetary gear motor 24 V DC 2.0 Nm

DC planetary gear modor without encoder
Nominal voltage: 24 V DC
Nominal current: 3.8 A
Shaft diameter: 8 mm
Norminal RPM: 95 U/min
Rotation direction: CCW

Technical specifications

Product type: DC gearmotor

Type: TC-NPG2422

Nominal voltage: 24 V DC

Nominal current: 3.8 A

Nominal current - rounded value: 3.8 A

Nominal RPM: 95 U/min

Features: Epicyclic gear train

Drive torque: 2.0 Nm

Manufacturer part #: TC-13609544

Type: Without encoder

Shaft Ø: 8 mm

Nominal torque: 2.0 Nm

Idle speed: 95 U/min

Plastic free packaging: Plastic-free packaging
