Name: TRU COMPONENTS Linear actuator TC24-300-250 POT TC-14973400 Stroke length 300 mm Thrust 250 N 24 V DC 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3743350
Availability: InStock

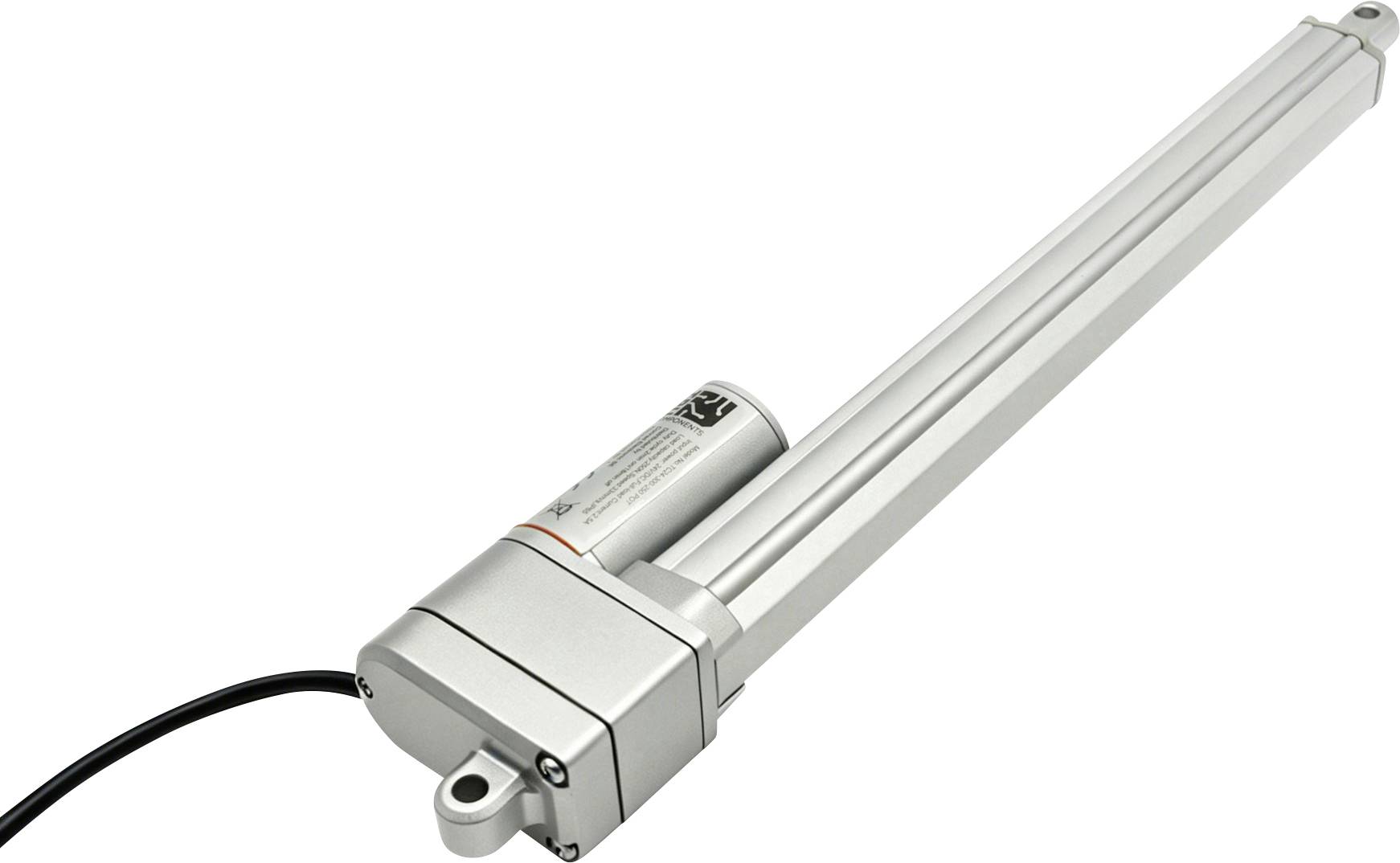

Silver linear actuator with two parallel extension arms and a black power cable, shown on a white background.

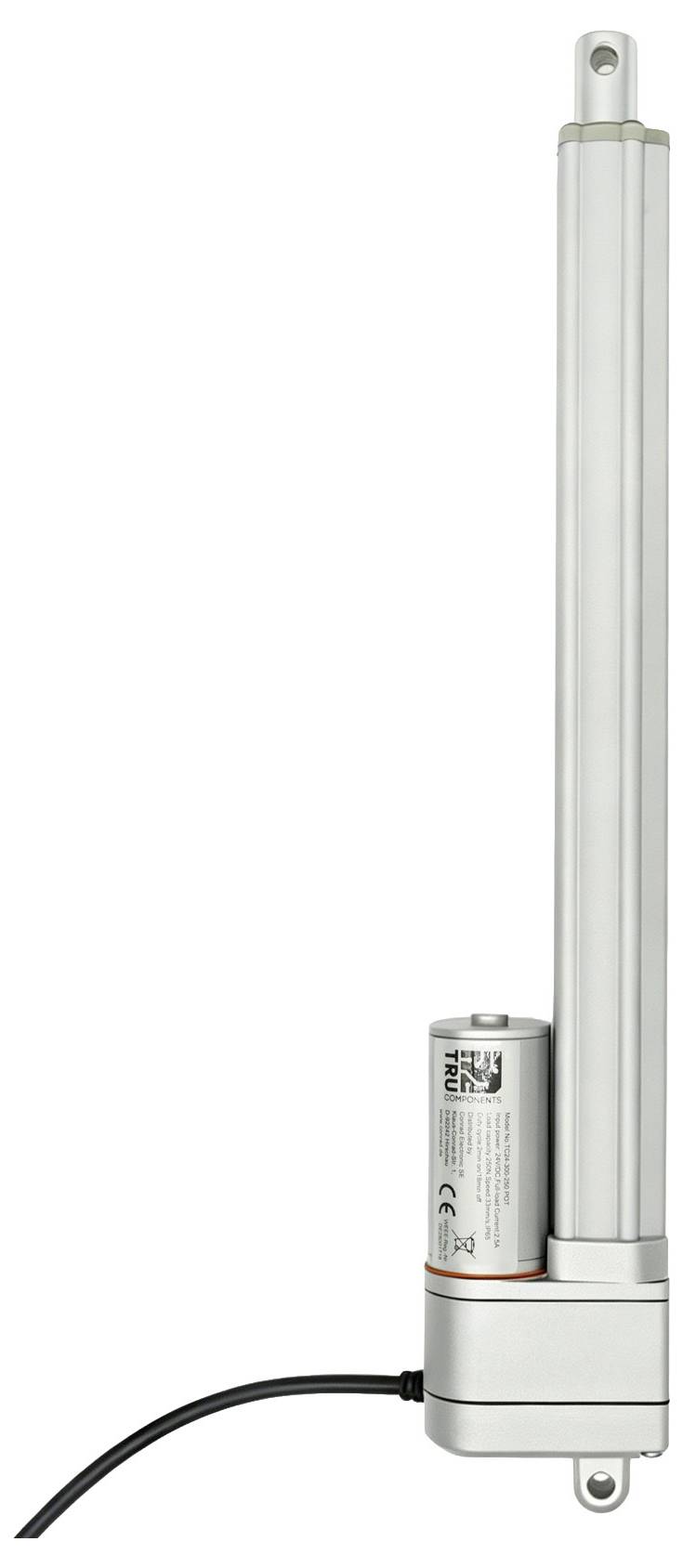

Electric linear actuator with attached control module and power cable, shown upright on a white background.

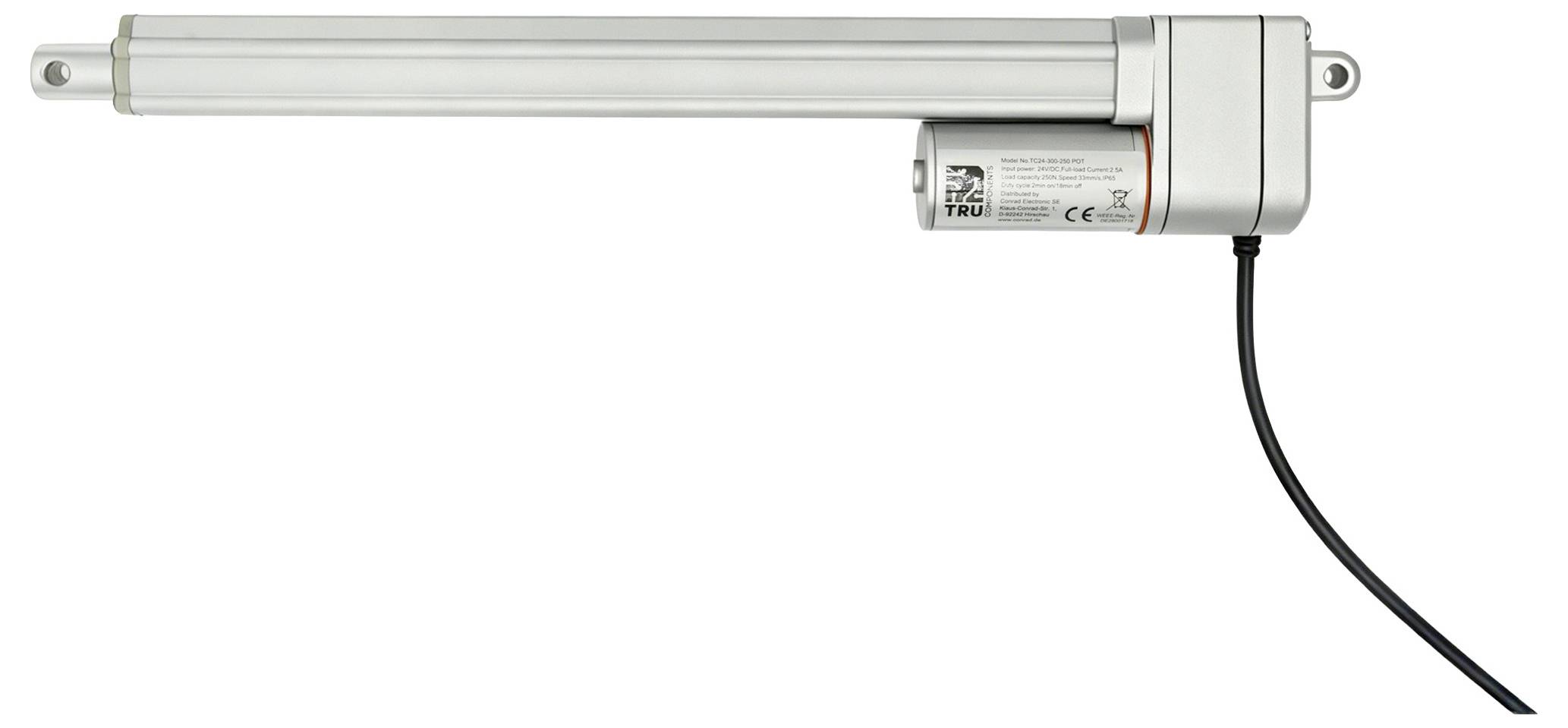

Electric linear actuator with extended silver rod and attached black power cable on a white background.

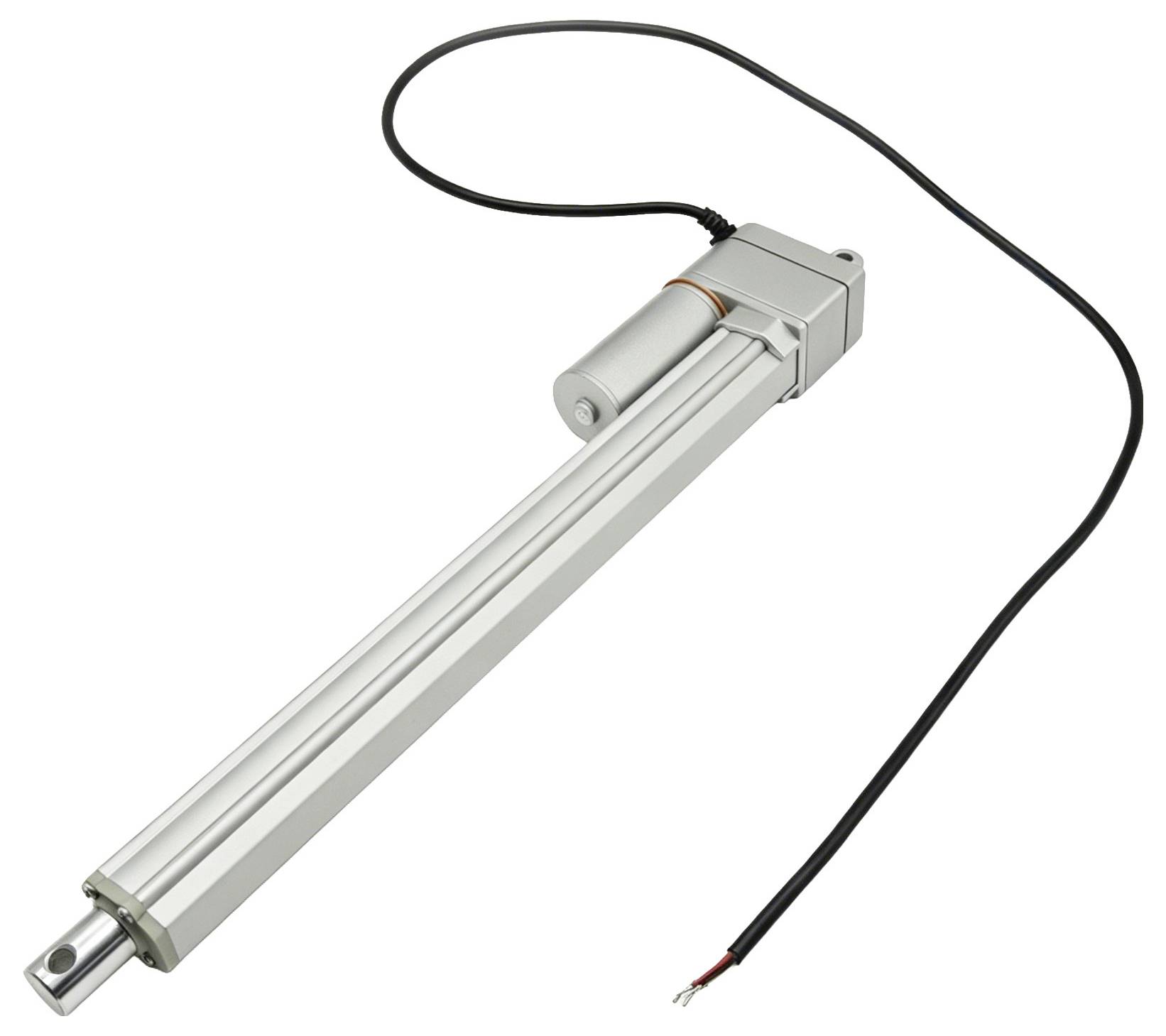

Silver linear actuator with attached black power cable and mounting eyelet, shown on a white background.

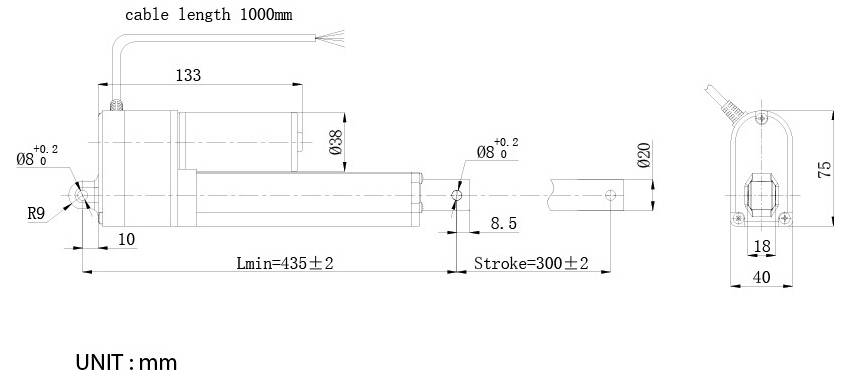

Technical drawing of a cylindrical actuator showing dimensions in millimeters, including 1000 mm cable length, 435±2 mm minimum length, and 300±2 mm stroke.

1/5

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

33 mm/s

Nominal voltage

24 V DC

Thrust

250 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 3 Nov

48 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC24-300-250 POT

Input voltage: 24 V DC
Stroke: 300 mm
Rated load current: 2.5 A
Load capacity: 250 N
Minimum installation size: 435 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 33 mm/s

Nominal voltage: 24 V DC

Type: Potentiometer

Thrust: 250 N

Manufacturer part #: TC-14973400

Type: TC24-300-250 POT

Features: Built-in potentiometer

Thrust power: 250 N

Plastic free packaging: Plastic-free packaging

Variants(All information include VAT, plus shipping costs)

Nominal voltage

Speed (max.)

Stroke length

Thrust

TRU COMPONENTS Linear actuator TC12-100-1000 POT TC-14973296 Stroke length 100 mm Thrust 1000 N 12 V DC 1 pc(s)

Item no:3743324

Fast track dispatch on Tue 3 Nov

39 Piece(s)Conrad Electronic

12 V DC

7 mm/s

100 mm

1000 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-100-1000 TC-14973300 Stroke length 100 mm Thrust 1000 N 12 V DC 1 pc(s)

Item no:3743325

Fast track dispatch on Tue 3 Nov

48 Piece(s)Conrad Electronic

12 V DC

7 mm/s

100 mm

1000 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

TRU COMPONENTS Linear actuator TC12-100-250 POT TC-14973280 Stroke length 100 mm Thrust 250 N 12 V DC 1 pc(s)

Item no:3743320

Fast track dispatch on Tue 3 Nov

46 Piece(s)Conrad Electronic

12 V DC

33 mm/s

100 mm

250 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-100-250 TC-14973284 Stroke length 100 mm Thrust 250 N 12 V DC 1 pc(s)

Item no:3743321

Fast track dispatch on Tue 3 Nov

39 Piece(s)Conrad Electronic

12 V DC

33 mm/s

100 mm

250 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

TRU COMPONENTS Linear actuator TC12-100-500 POT TC-14973288 Stroke length 100 mm Thrust 500 N 12 V DC 1 pc(s)

Item no:3743322

Fast track dispatch on Tue 3 Nov

45 Piece(s)Conrad Electronic

12 V DC

18 mm/s

100 mm

500 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-100-500 TC-14973292 Stroke length 100 mm Thrust 500 N 12 V DC 1 pc(s)

Item no:3743323

Fast track dispatch on Tue 3 Nov

48 Piece(s)Conrad Electronic

12 V DC

18 mm/s

100 mm

500 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

TRU COMPONENTS Linear actuator TC12-200-1000 POT TC-14973332 Stroke length 200 mm Thrust 1000 N 12 V DC 1 pc(s)

Item no:3743333

Fast track dispatch on Tue 3 Nov

48 Piece(s)Conrad Electronic

12 V DC

7 mm/s

200 mm

1000 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-200-1000 TC-14973336 Stroke length 200 mm Thrust 1000 N 12 V DC 1 pc(s)

Item no:3743334

Fast track dispatch on Tue 3 Nov

45 Piece(s)Conrad Electronic

12 V DC

7 mm/s

200 mm

1000 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-200-500 POT TC-14973324 Stroke length 200 mm Thrust 500 N 12 V DC 1 pc(s)

Item no:3743331

Fast track dispatch on Tue 3 Nov

47 Piece(s)Conrad Electronic

12 V DC

18 mm/s

200 mm

500 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 81.99^*

TRU COMPONENTS Linear actuator TC12-200-500 TC-14973328 Stroke length 200 mm Thrust 500 N 12 V DC 1 pc(s)

Item no:3743332

Fast track dispatch on Tue 3 Nov

41 Piece(s)Conrad Electronic

12 V DC

18 mm/s

200 mm

500 N

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 63.99^*

Documents & Downloads

Datasheet

Datasheet 3743350 TRU COMPONENTS Linear actuator TC24-300-250 POT TC-14973400 Stroke length 300 mm Thrust 250 N 24 V DC 1 pc(s)

User & Safety Instructions
