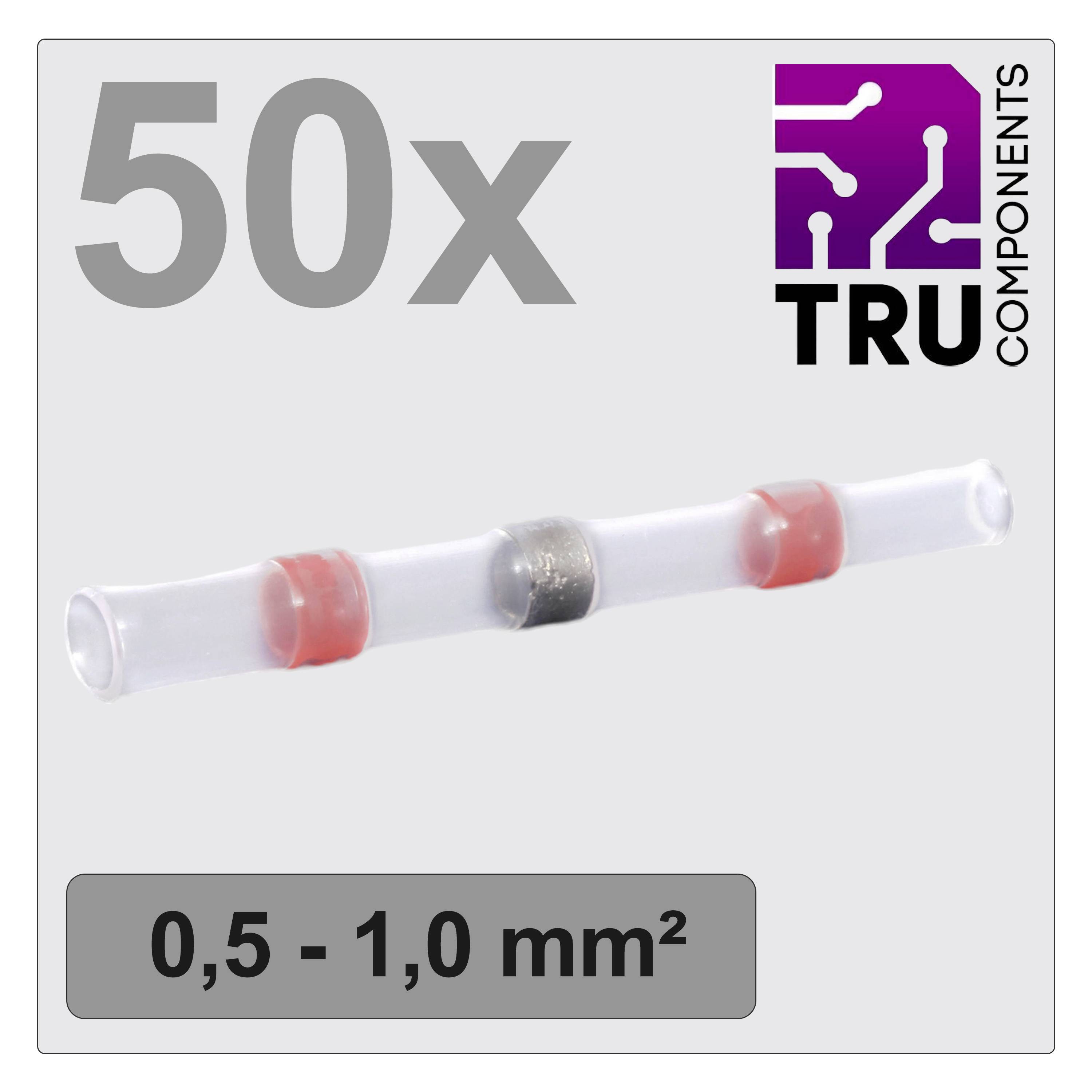

TRU COMPONENTS TC-12888420 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 50 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Insulation type
Insulated
Length
40 mm
Content
50 pc(s)
Datasheet (PDF)
Quantity (Set(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number (Package size 50 pc(s))
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Highlights & Details
Solder butt connector, red 0,5-1 mm² 50 pce
- With integrated soldering ring
- Waterproof
- Shrink ratio 2:1
Technical specifications
- Packaging type
Piece
- Product type
Butt joint
- Factory colour
Red
- Insulation type
Insulated
- Length
40 mm
- Content
50 pc(s)
- Manufacturer part #
TC-12888420
- Type
T24C010
- max. cross section
1.0 mm²
- Min. cross section
0.5 mm²
- Dim
(Ø x L) 2.7 mm x 40 mm
- Cross-section range
0.5 - 1.0 mm²
- Features
+ heatshrink
- (Ø)
2.7 mm
- Shrinkage
2:1
- Voltage (max.)
600 V
Documents & Downloads
Datasheet
Datasheet 3222105 TRU COMPONENTS TC-12888420 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 50 pc(s)
User & Safety Instructions
User & Safety Instructions 3222105 TRU COMPONENTS TC-12888420 Butt joint + heatshrink 0.5 mm² 1.0 mm² Insulated Red 50 pc(s)
Description
The hot-melting inner adhesive seals off water-repellent when it overlaps correctly - the soldering ring connects both the conductors during the shrinking and melting process! The advantage of the transparent design is that you can see the wrapped object.
The application is very simple: Strip cable and insert it into the plug on both sides until the stripped cable ends overlap under the soldering ring or rotate. Even heat in the melting temperature of the solder until it has melted - preferably with a hot-air gun or hot-air blower - and that's it. Maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality and properties of the solder joint.
This text is machine translated.
The application is very simple: Strip cable and insert it into the plug on both sides until the stripped cable ends overlap under the soldering ring or rotate. Even heat in the melting temperature of the solder until it has melted - preferably with a hot-air gun or hot-air blower - and that's it. Maximum current is limited by the conductor cross-section of the cable used, its conductor material and the quality and properties of the solder joint.
This text is machine translated.
Scope of delivery
- 50 x soldering butt connector red 0,5-1 mm²
