Name: TRU COMPONENTS TC-13448500 Butt joint + heatshrink 2.5 mm² 4 mm² Insulated Black 10 pc(s)
Brand: TRU COMPONENTS
SKU: 3362125
Availability: InStock

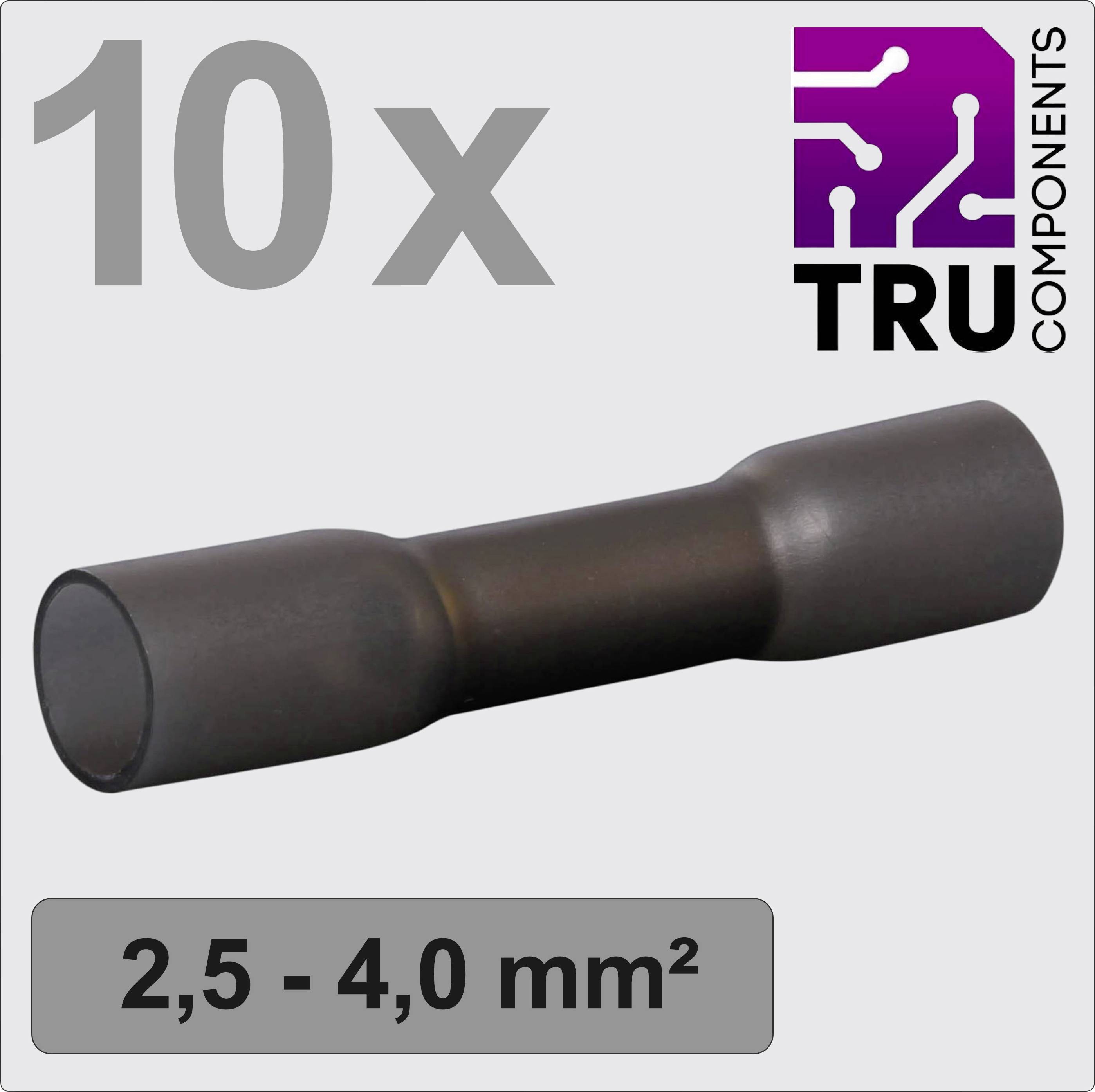

10 black heat shrink tubes by TRU COMPONENTS, suitable for cable cross-sections from 2.5 to 4.0 mm².

Packaging type

Piece

Product type

Butt joint

Insulation type

Insulated

Length

38 mm

Content

10 pc(s)

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

40 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Set(s)

Total (€ 3.79 / piece)

€ 3.79

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Crimp butt connector 6 mm, black, 10 pieces

Density connection by hot-melting inner adhesive
Shrink ratio of insulation: 3:1

Our service for you

Technical specifications

Colour: Black
Min. Temperature: -55°C.
Max. Temperature 125°C.
Product dimension, length 38 mm
Special features: With shrink hose
Insulation type: Fully insulated
Cross-section range: 2.5 - 4 mm²
Cross-section (min.): 2.5 mm²
Cross-section (max.): 4 mm²
Max. voltage 600 V
Current 35 A
Shrink temperature 80 - 130 °C.
3:1 shrink rate

Packaging type: Piece

Product type: Butt joint

Factory colour: Black

Insulation type: Insulated

Length: 38 mm

Content: 10 pc(s)

Manufacturer part #: TC-13448500

Type: T24C039

max. cross section: 4 mm²

Min. cross section: 2.5 mm²

Dim: 38

Outside Ø: 6 mm

Insulation material: Full PVC insulation

Dimensions: 38 mm

Cross-section range: 2.5 - 4 mm²

RoHS-compliant: Yes

Shrink temperature: 80 - 130 °C

Features: + heatshrink

Max. temperature: 125 °C

Min. temperature: -55 °C

Documents & Downloads

Datasheet

Datasheet 3362125 TRU COMPONENTS TC-13448500 Butt joint + heatshrink 2.5 mm² 4 mm² Insulated Black 10 pc(s)

User & Safety Instructions

User & Safety Instructions 3362125 TRU COMPONENTS TC-13448500 Butt joint + heatshrink 2.5 mm² 4 mm² Insulated Black 10 pc(s)

Description

This butt connector set is particularly suitable for hobbyists, professionals, field teams, service workshops, electronics and laboratories. The inner hot-melt adhesive provides water-proof sealing if it overlaps correctly. Ideal for repairing or connecting cables and wires (lawnmower cable, signal cable, etc.), service, manufacturing or hobby. The application is very simple: Strip the cable and insert it on both sides until the stripped cable ends overlap. Crimp on both sides with a crimp pliers and then activate the heat-shrink tubing in the appropriate temperature range - preferably with a hot air gun.
