TRU COMPONENTS TC-14124716 LED indicator light Yellow Cylinder BA15d 100 V AC, 240 V AC 355 lm
Product type
LED indicator light
Operating voltage
100 V AC
240 V AC
Base
BA15d
Operating current
39 mA
Factory colour
Yellow
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 11.99 / piece)
€ 11.99
incl. VAT
14-day return policy included
Highlights & Details
LED signal lamp BA15d, yellow, 100-240 V AC/DC, 5 W
- Operating voltage: 100–240 V AC, 50/60 Hz
- Power: 5 W
- Light colour: Yellow (579–600 nm)
- Base: BA15d
- 39 LEDs
Technical specifications
- Product type
LED indicator light
- Factory colour
Yellow
- Operating voltage
100 V AC
240 V AC
- Operating voltage
100 - 240 V AC
- Min. operating voltage
100 V AC
- Max. operating voltage
240 V AC
BA15d
- Operating current
39 mA
- Mounting depth
16 mm
- Head Ø
27 mm
- Head height
22 mm
- Shape
Cylinder
- Case colour
Transparent
- Material
Glass
- Radiation angle
360°
- Dim

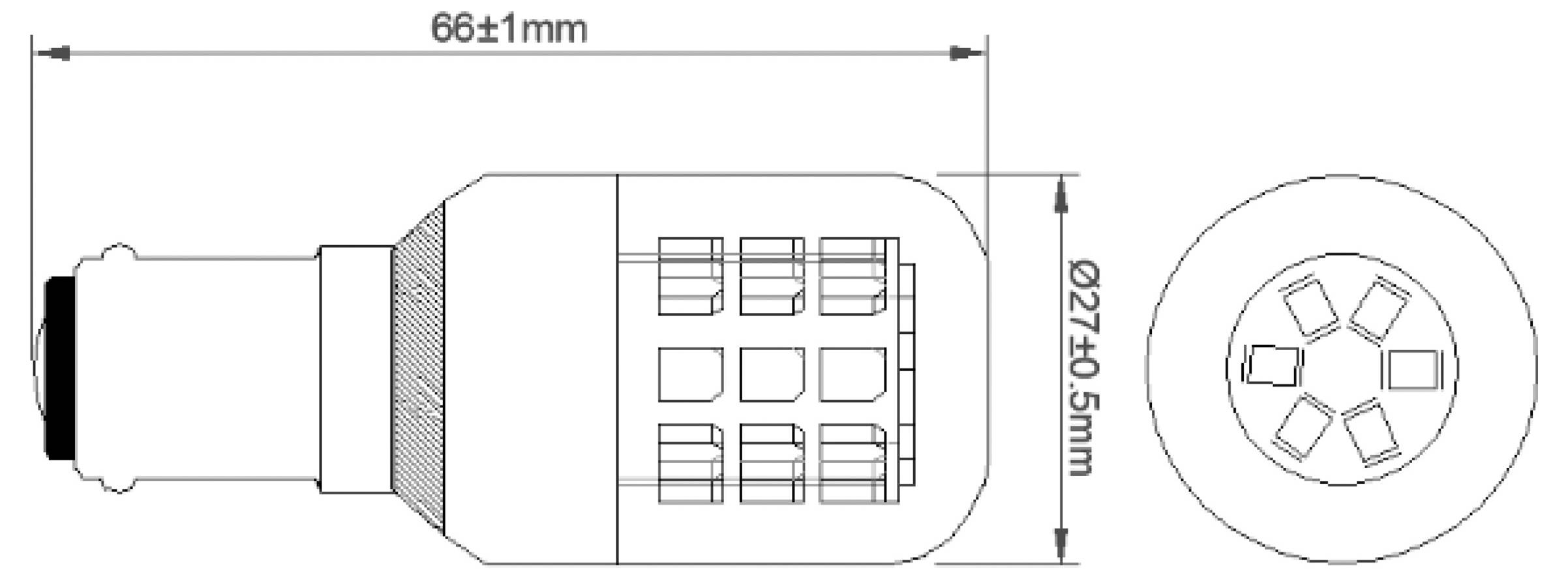

(Ø x H) 27 mm x 66 mm
- Height
66 mm
- (Ø)
27 mm
30,000 h
- Min. temperature
-30 °C
- Max. temperature
60 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
5 W
- Luminous flux (Φ)
355 lm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3531179 TRU COMPONENTS TC-14124716 LED indicator light Yellow Cylinder BA15d 100 V AC, 240 V AC 355 lm
User & Safety Instructions
User & Safety Instructions 3531179 TRU COMPONENTS TC-14124716 LED indicator light Yellow Cylinder BA15d 100 V AC, 240 V AC 355 lm
Description
A notice:
Lamps only for special applications, e.g. in machines, in signal lights or for scale lighting. Not intended for household room lighting.
Lamps only for special applications, e.g. in machines, in signal lights or for scale lighting. Not intended for household room lighting.
Features
- Luminous flux (Φ): 355 lm
- Radiation angle 360 °
- Service life: approx. 30,000 h
