ElectromechanicsAcoustic ComponentsSound Transducers & Signalling Devices

TRU COMPONENTS TC-14131044 Alarm sounder Noise emission: 70 dB Voltage: 12 V DC Interval sounder 1 pc(s)

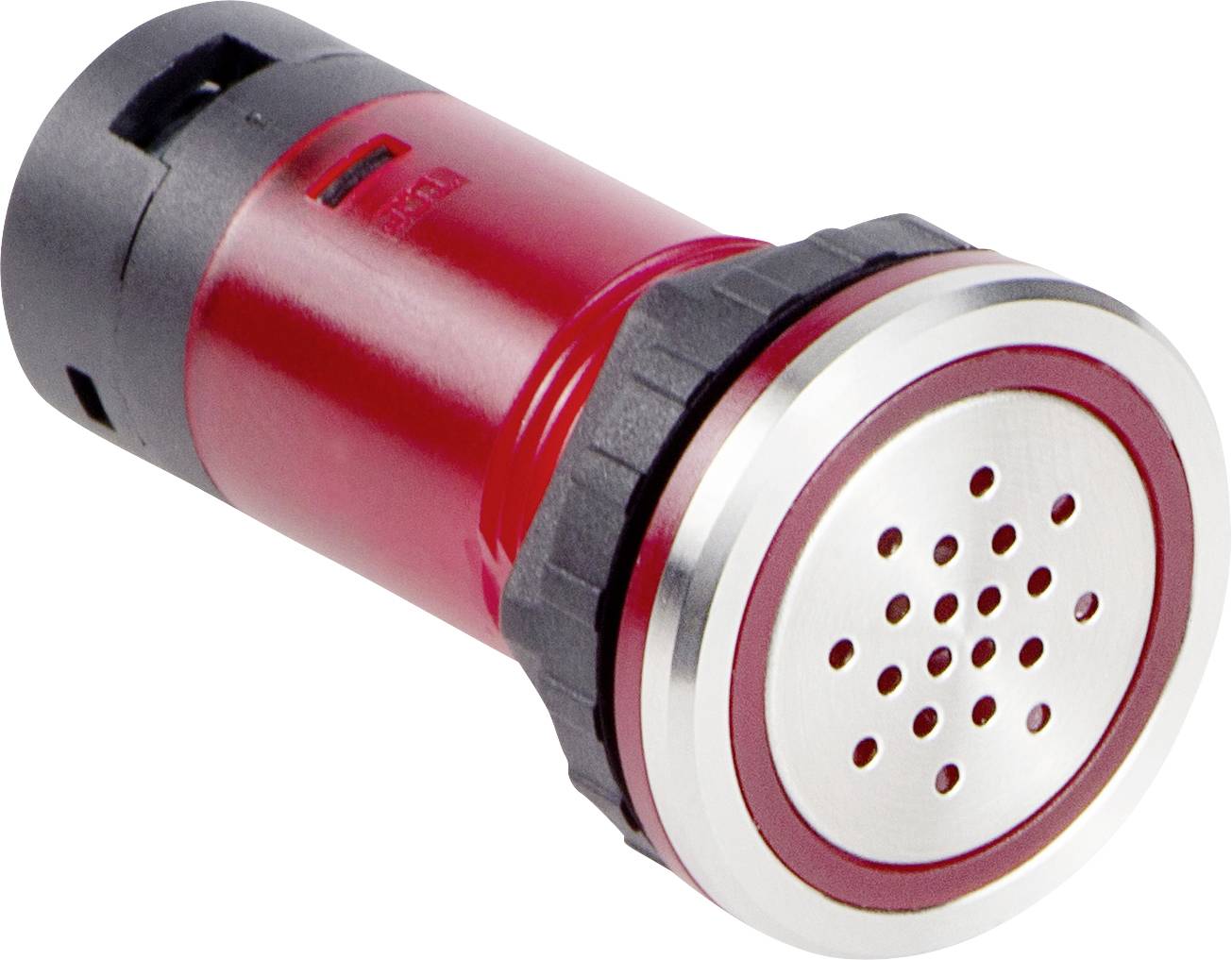

A red and silver push button with a circular vented top, used in industrial control panels for emergency stop or alarm activation.

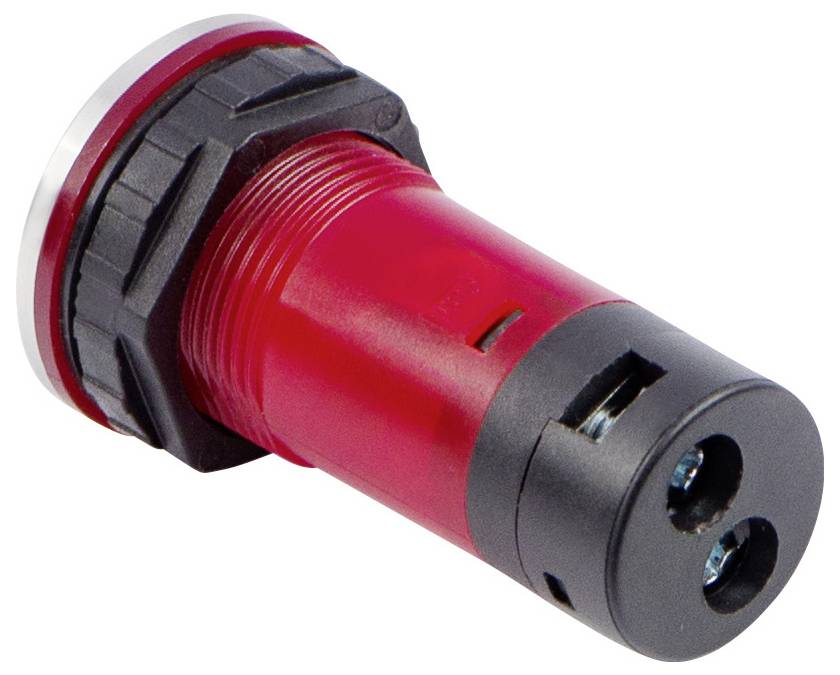

A red and black industrial connector with a threaded end and two circular ports.

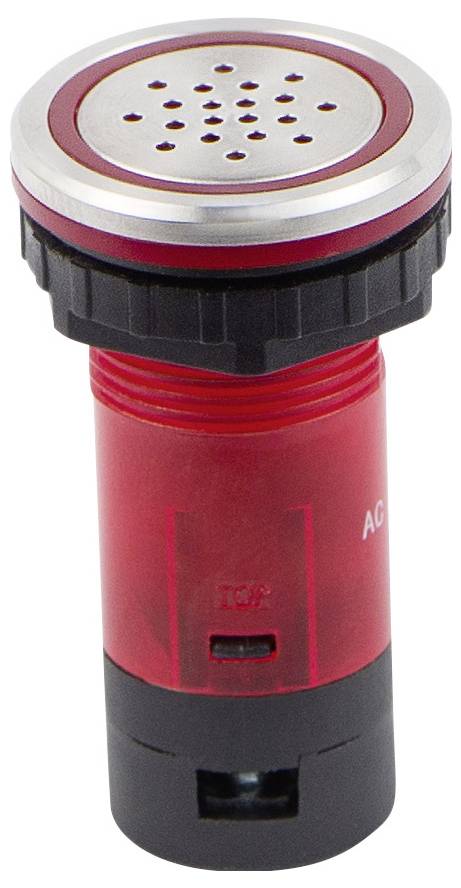

Red push button switch with a metallic top featuring perforations, labeled 'AC' and 'DC', intended for electrical and control panel use.

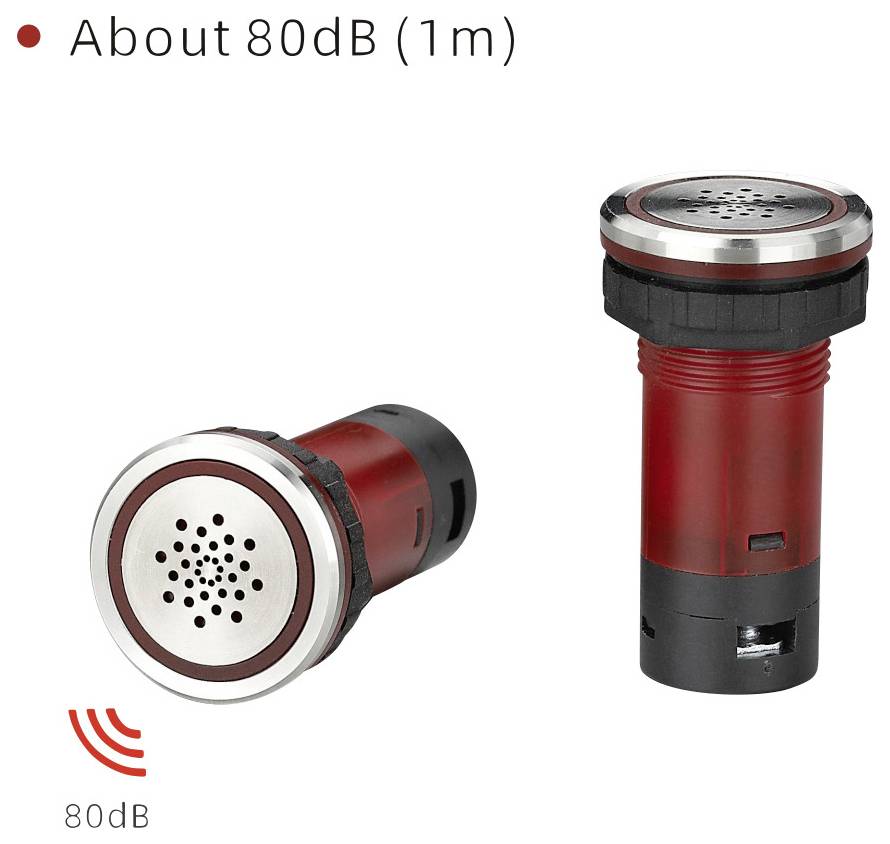

'Two red and black sound devices, labeled as producing about 80dB at 1 meter, with a sound icon indicating 80 decibels.'

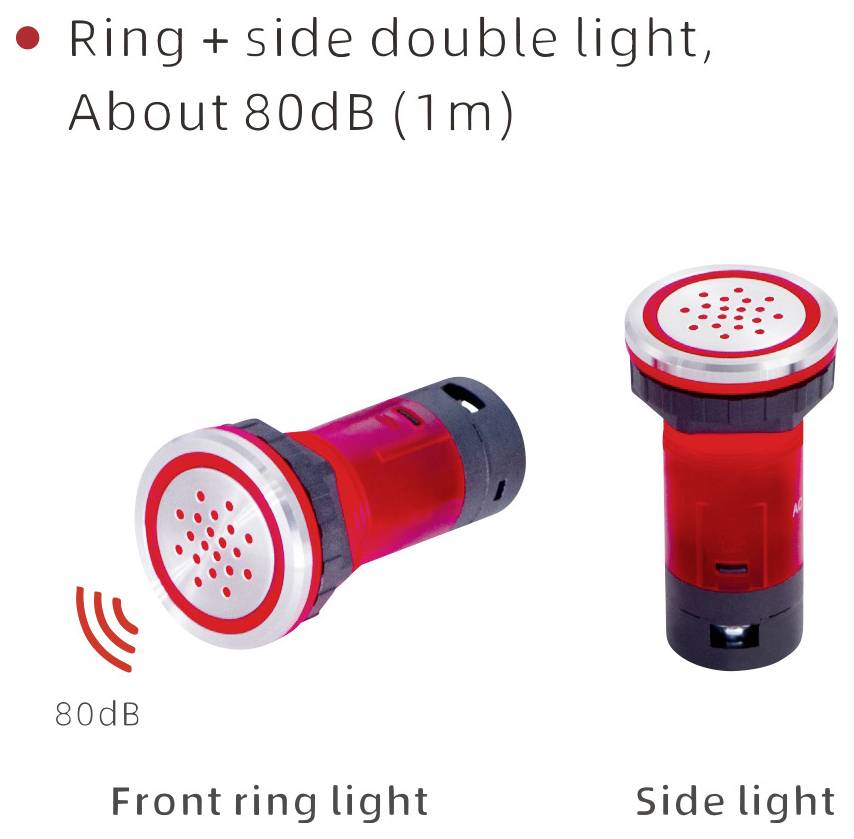

'Red and black alarm device with front ring and side light, emits about 80dB at 1 meter. Front and side views shown.'

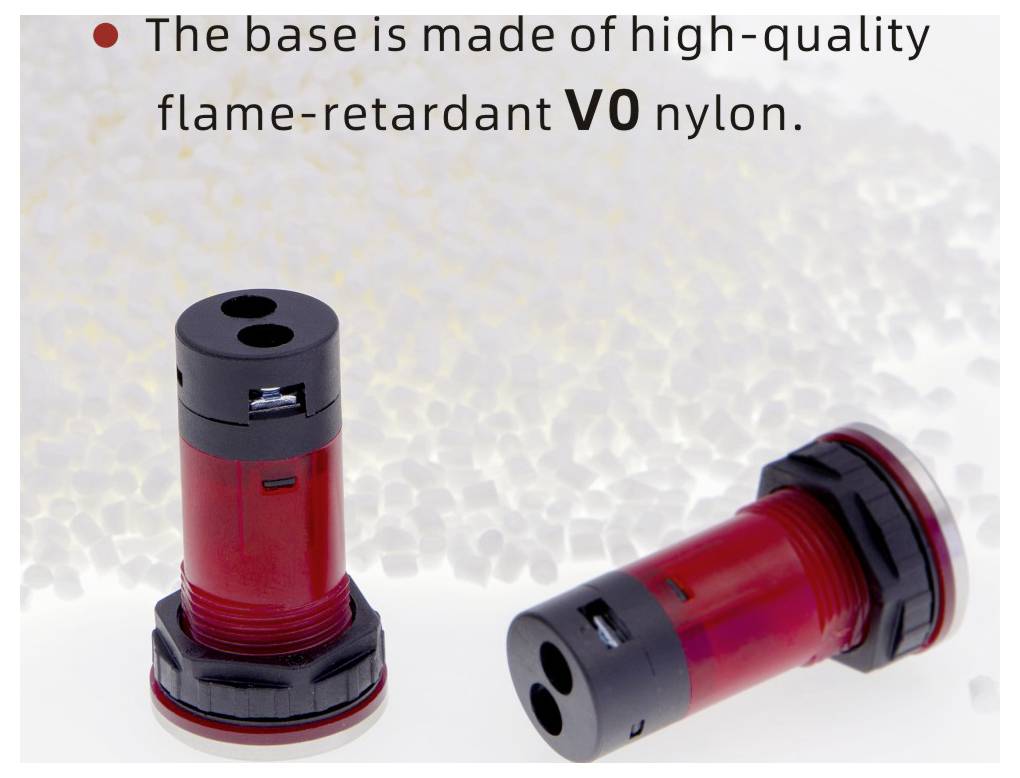

'Two red cylindrical components made of flame-retardant V0 nylon, with black tops and bottoms, shown against a background of nylon pellets.'

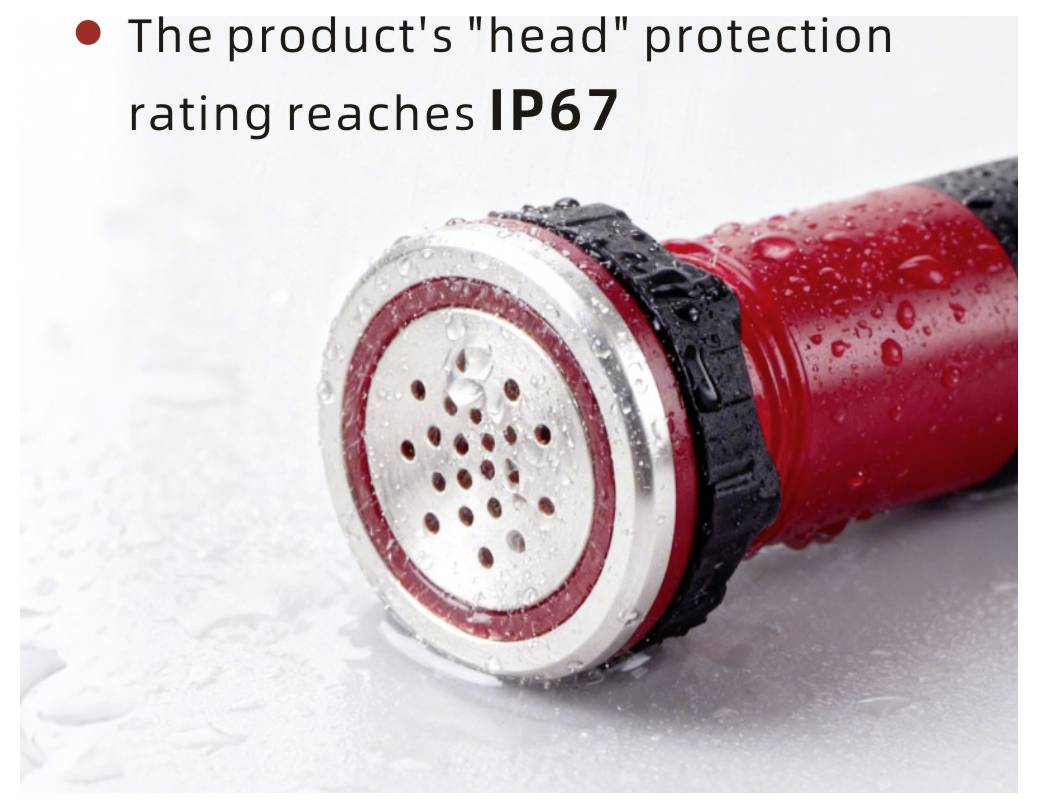

A close-up of a red and silver device component, likely a connector, with water droplets, highlighting its IP67 water resistance rating.

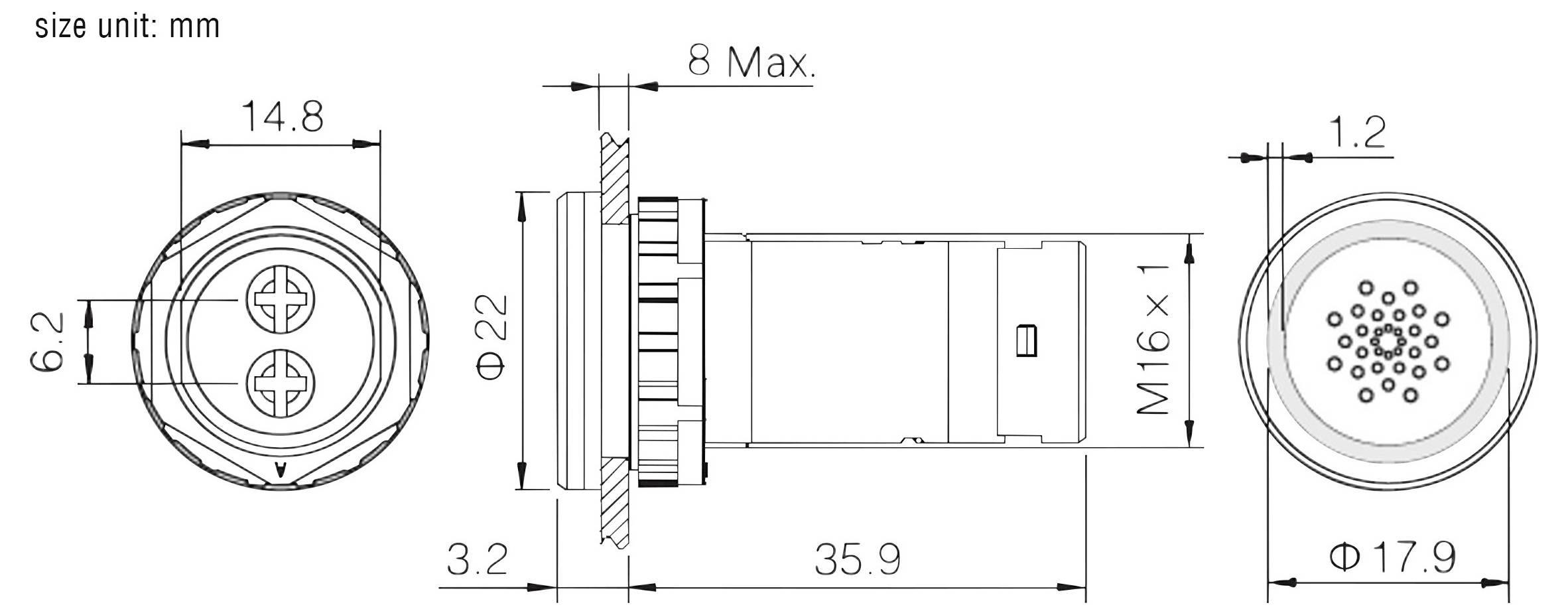

'Mechanical drawing of a plug showing front, side, and top views with dimensions in millimeters. Key measurements include diameter of 22, 17.9, and overall length of 35.9. Thread size M16×1.'
1/8
Product type
Alarm sounder
Sound signal type
Interval sounder
Voltage
12 V DC
Dim
(L x W) 39.1 mm x 22 mm
Noise emission
70 dB
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
108 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.49 / piece)
€ 5.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Discontinuous signal transmitter, installation Ø 16 mm

  • IP Rating: IP67
  • Sound level: 70 dB (1 m)
  • Connection: screw (wire within 1 mm²)
  • Mounting thickness: max. 8 mm
  • Insulation resistance: ≥1000 M Ω (500 V/DC)

Technical specifications

  • Case colour: Red
  • Without light
  • Material: PC
  • Max. current consumption: 18 mA
  • Dimensions: Ø 19 x 39.1 mm, Ø 16 mm (at the screw thread)
  • Weight: 10.3 g
Product type

Alarm sounder

Sound signal type

Interval sounder

Voltage

12 V DC

Dim

(L x W) 39.1 mm x 22 mm

Noise emission

70 dB

Content

1 pc(s)

Features

Waterproof

Width

22 mm

Length

39.1 mm

RoHS-compliant

Yes

Type

TC-3916-JM/12V

Plastic free packaging

Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3532761 TRU COMPONENTS TC-14131044 Alarm sounder Noise emission: 70 dB Voltage: 12 V DC Interval sounder 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3532761 TRU COMPONENTS TC-14131044 Alarm sounder Noise emission: 70 dB Voltage: 12 V DC Interval sounder 1 pc(s)

Description

Features

  • Interval tone, without light
