Buy TRU COMPONENTS TC-14131052 Alarm sounder Noise emission: 70 dB Voltage: 12 V DC Interval sounder 1 pc(s)

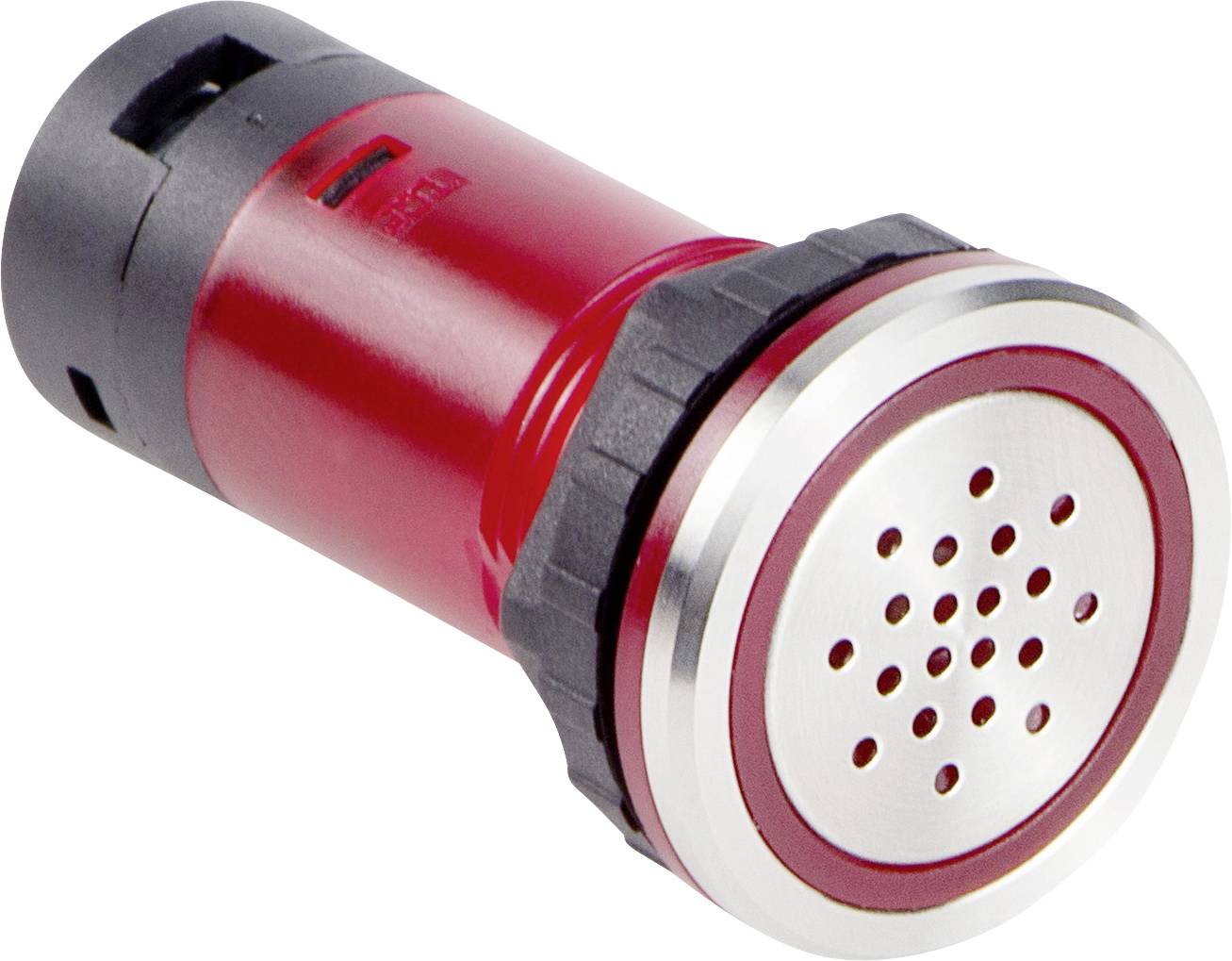

A metallic emergency stop button with a red cylindrical base and a perforated surface, used for safety control in machinery systems.

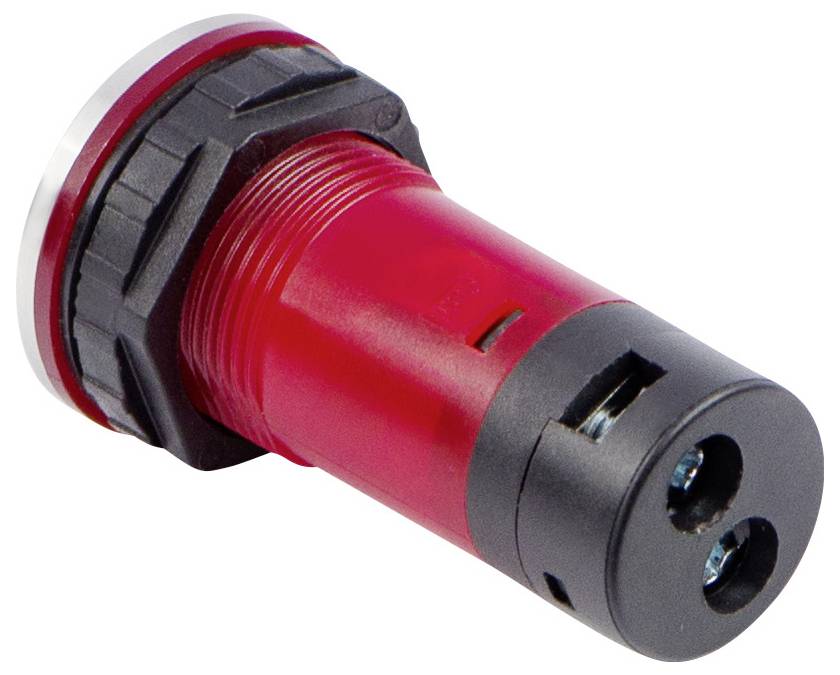

A red LED panel mount indicator with a cylindrical design and black mounting bezel, used for visual status notification in electronic devices.

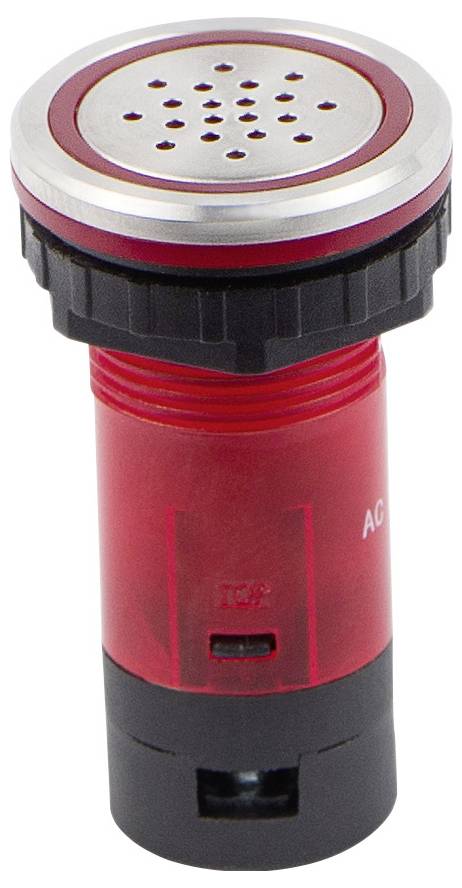

Red emergency machine alarm light with a black base and metallic grille on top, likely used for signaling alerts or warnings.

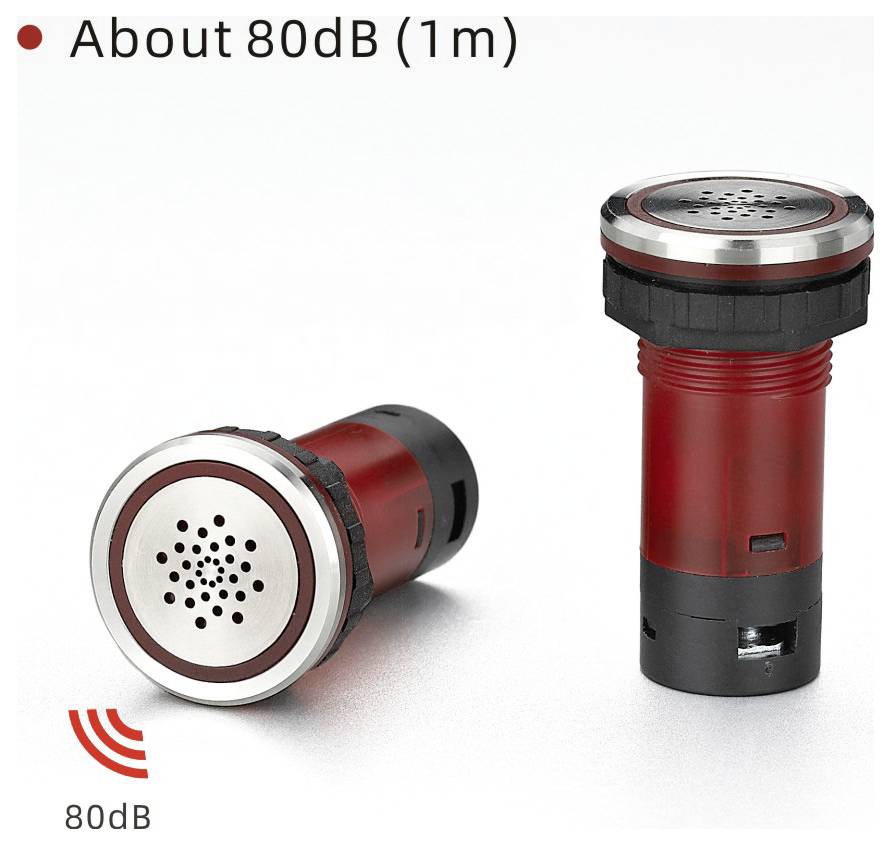

'About 80dB (1m)' text above two red and black cylindrical sound devices, one upright and one lying down. 80dB symbol below.

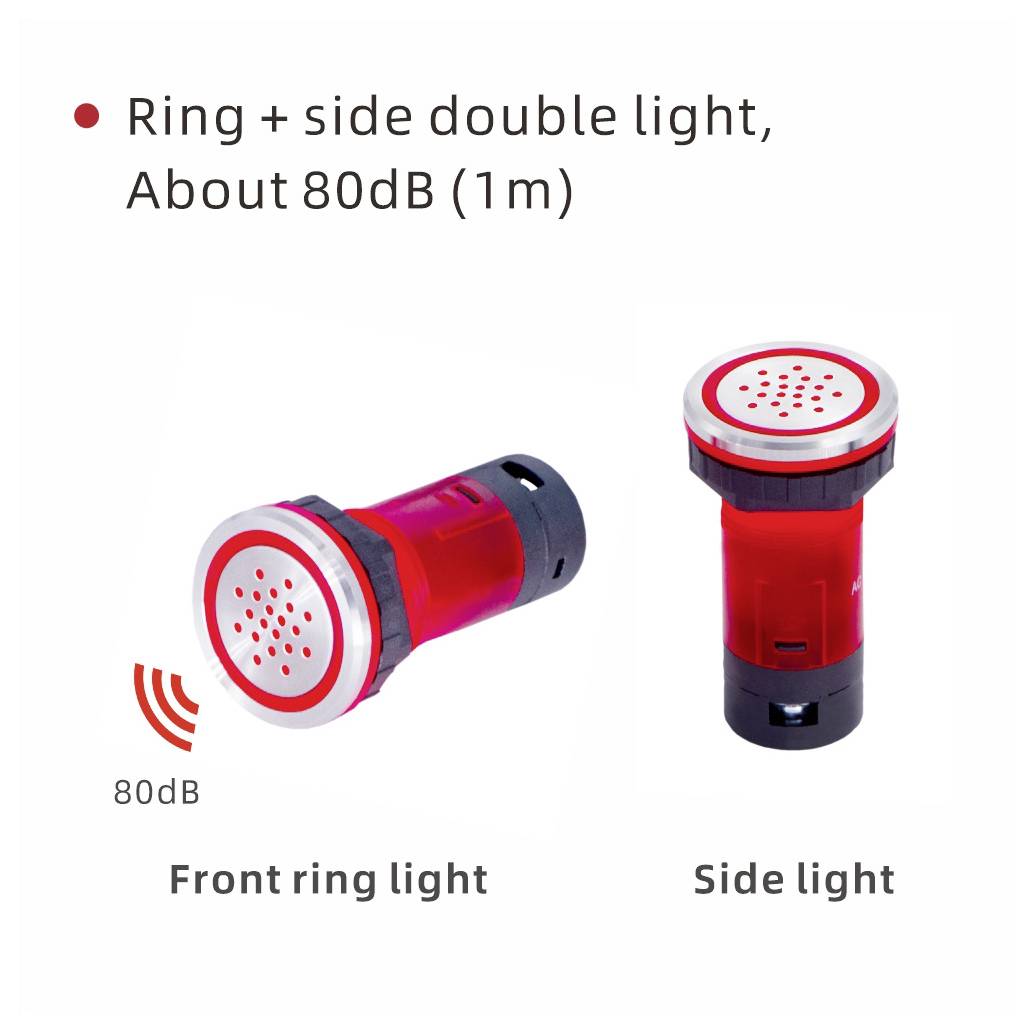

'Ring + side double light, About 80dB (1m)' with images of a red safety light showing front ring and side views, indicating sound level.

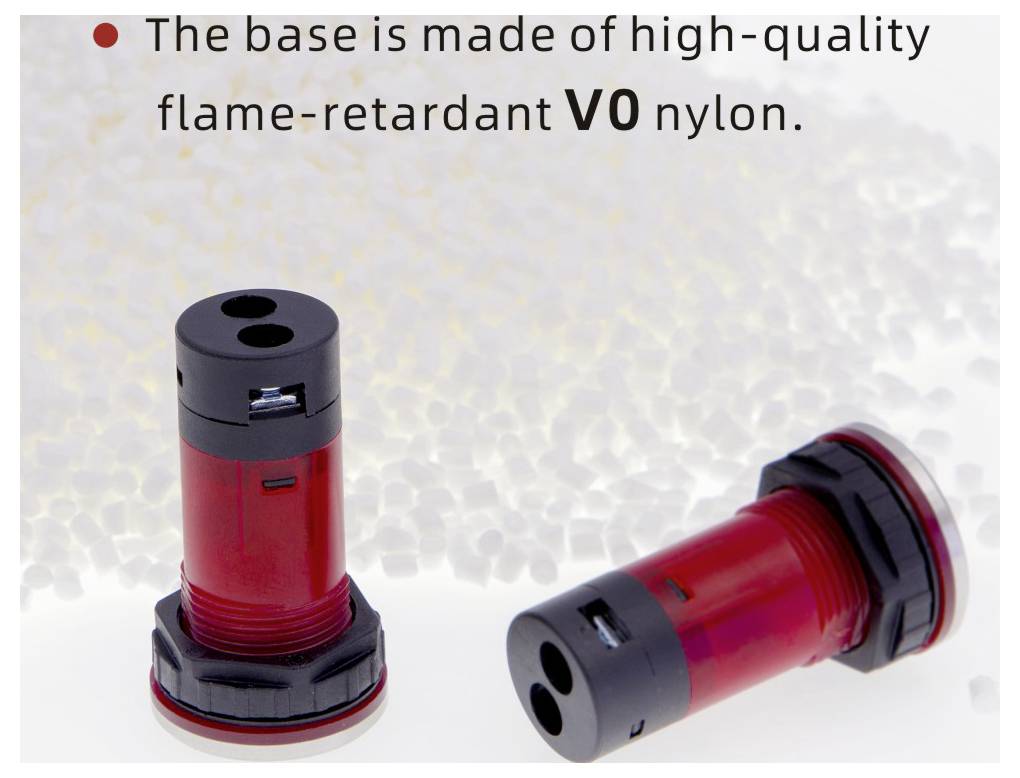

Red and black cylindrical objects on a white background with text above reading 'The base is made of high-quality flame-retardant V0 nylon.'

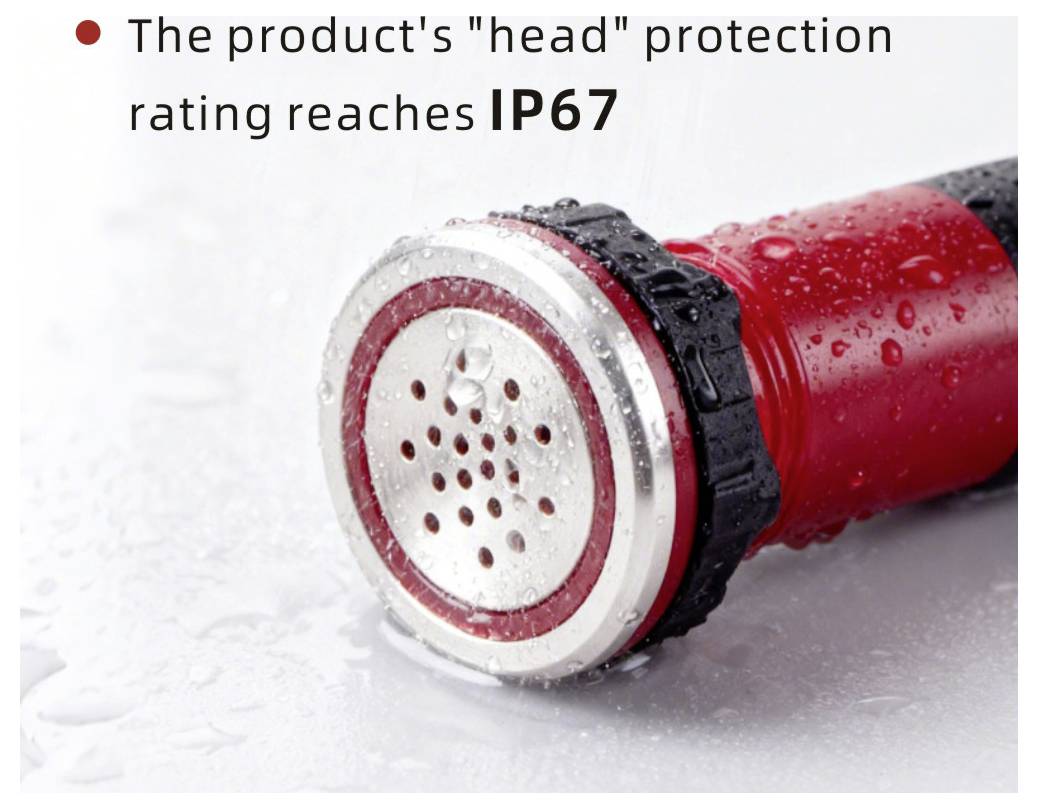

A red and black cylindrical object on a wet surface with metallic end. Text reads 'The product's "head" protection rating reaches IP67.'

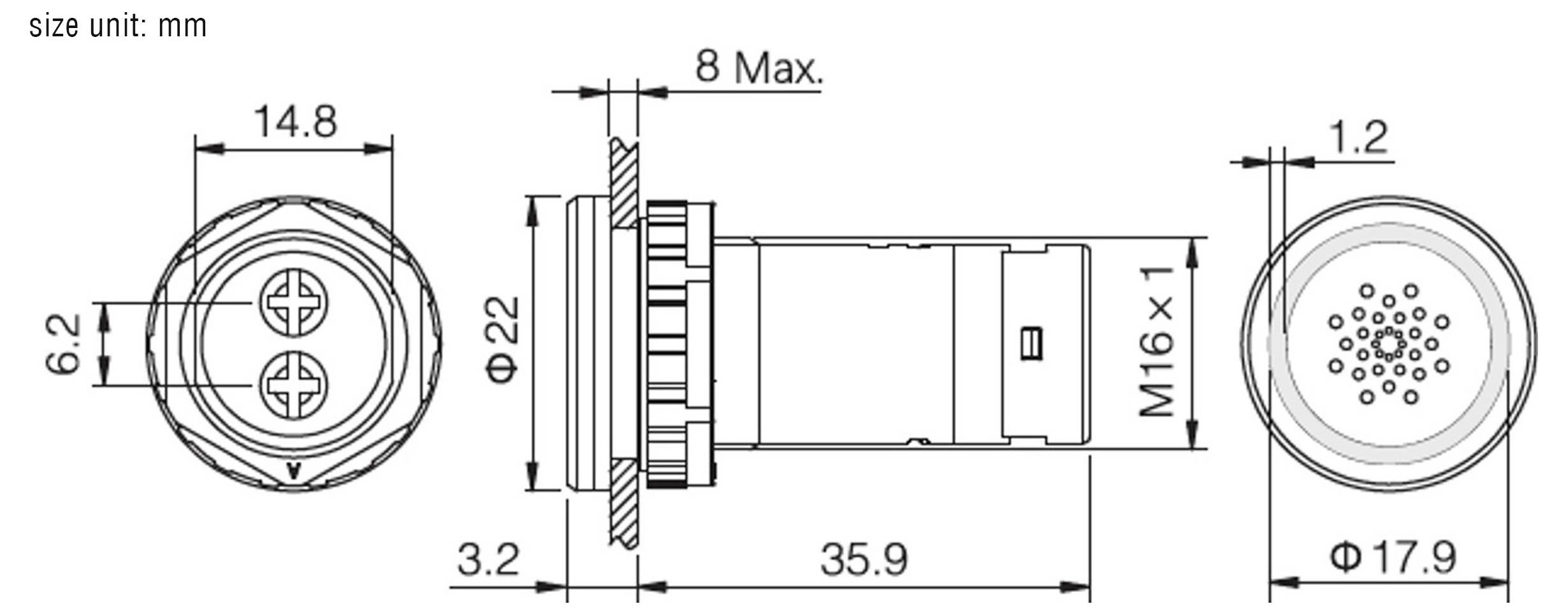

Technical drawing of a circular connector with dimensions labeled in millimeters, showing side and front views with measurements.

1/8

Product type

Alarm sounder

Sound signal type

Interval sounder

Voltage

12 V DC

Dim

(L x W) 39.1 mm x 22 mm

Noise emission

70 dB

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

109 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.45 / piece)

€ 5.45

plus VAT.

Report legal concerns

Highlights & Details

Discontinuous signal transmitter, installation Ø 16 mm, flash red light

IP Rating: IP67
Sound level: 70 dB (1 m)
Connection: screw (wire within 1 mm²)
Mounting thickness: max. 8 mm
Insulation resistance: ≥1000 M Ω (500 V/DC)

Our service for you

Technical specifications

Case colour: Red
Colours (LEDs): Red
Flash red light
Flash rate: 42/min
Material: PC
Max. current consumption: 28 mA
Dimensions: Ø 19 x 39.1 mm, Ø 16 mm (at the screw thread)
Weight: 10.3 g

Product type: Alarm sounder

Sound signal type: Interval sounder

Voltage: 12 V DC

Dim: (L x W) 39.1 mm x 22 mm

Noise emission: 70 dB

Content: 1 pc(s)

Features: Waterproof

Width: 22 mm

Length: 39.1 mm

RoHS-compliant: Yes

Type: TC-3916-SM/R/12V

Plastic free packaging: Plastic-free packaging
