Name: TRU COMPONENTS TC-14988672 Flip switch 12 V, 24 V 20 A 2 x Off/On latch 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3747168
Availability: BackOrder

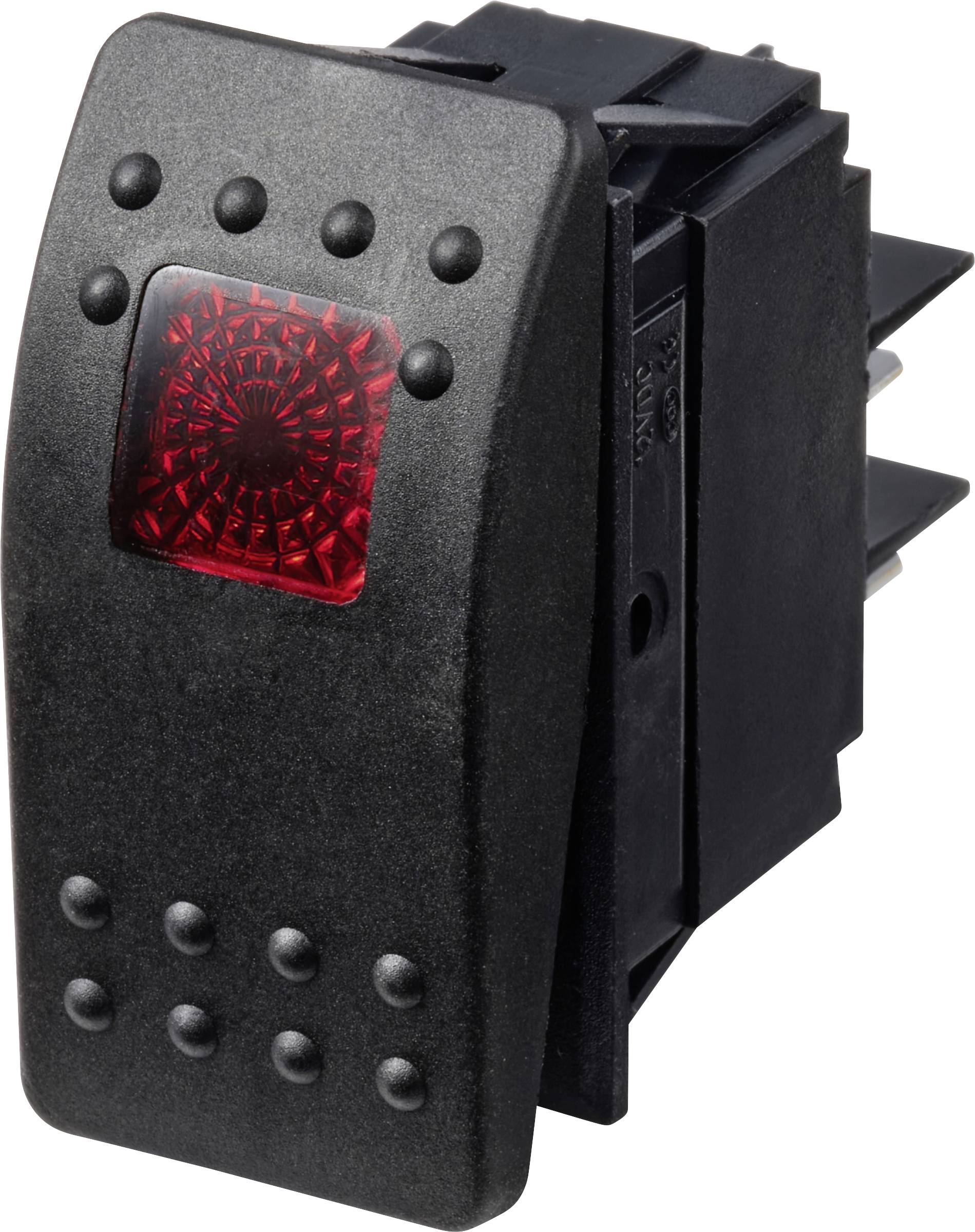

Black rectangular rocker switch with a glowing red indicator light, shown in close-up on a white background.

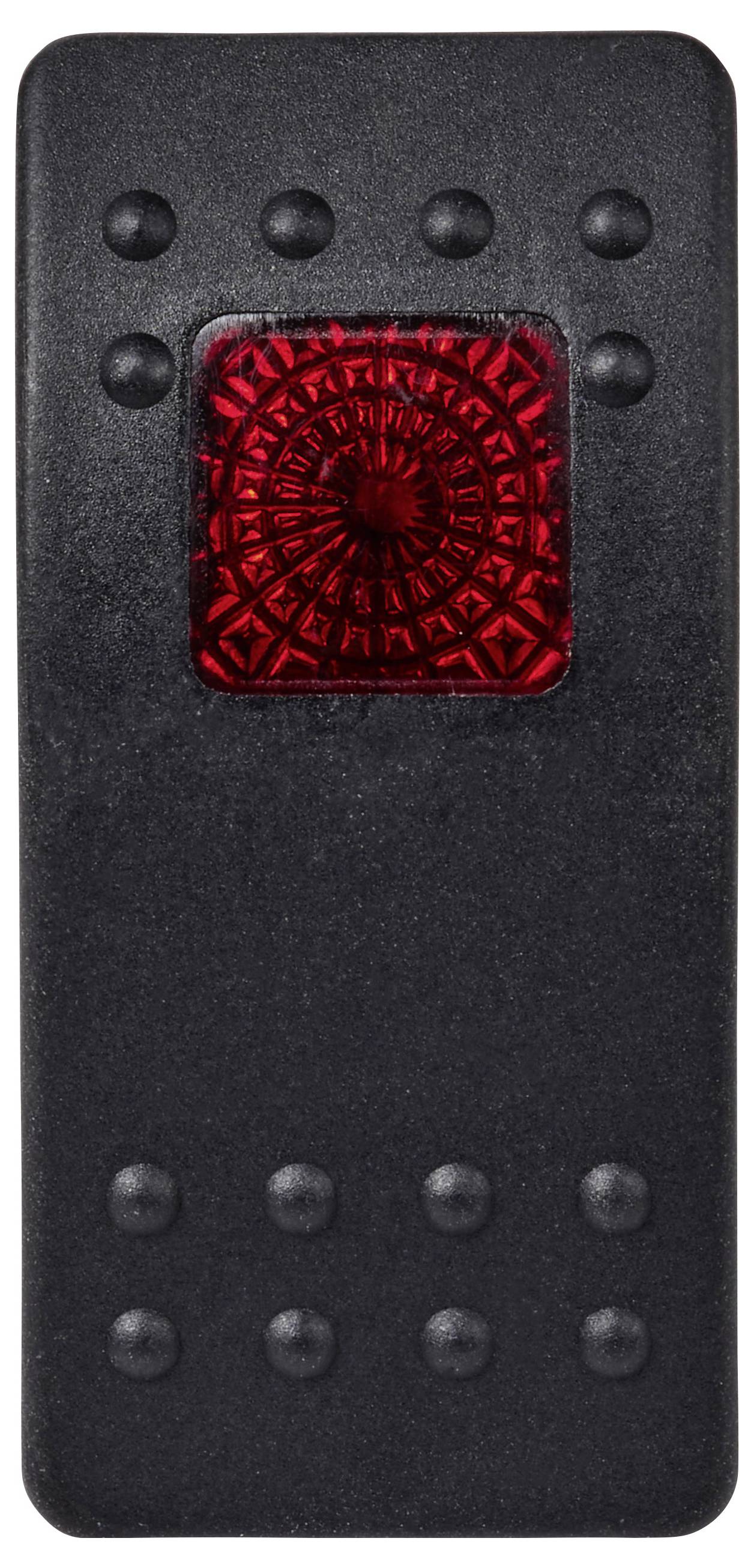

Black rectangular tactile device with a red square illuminated center, likely a button or indicator light, and raised dots around it.

Black electrical relay or contactor with multiple metal terminal tabs on a base, shown isolated on a white background.

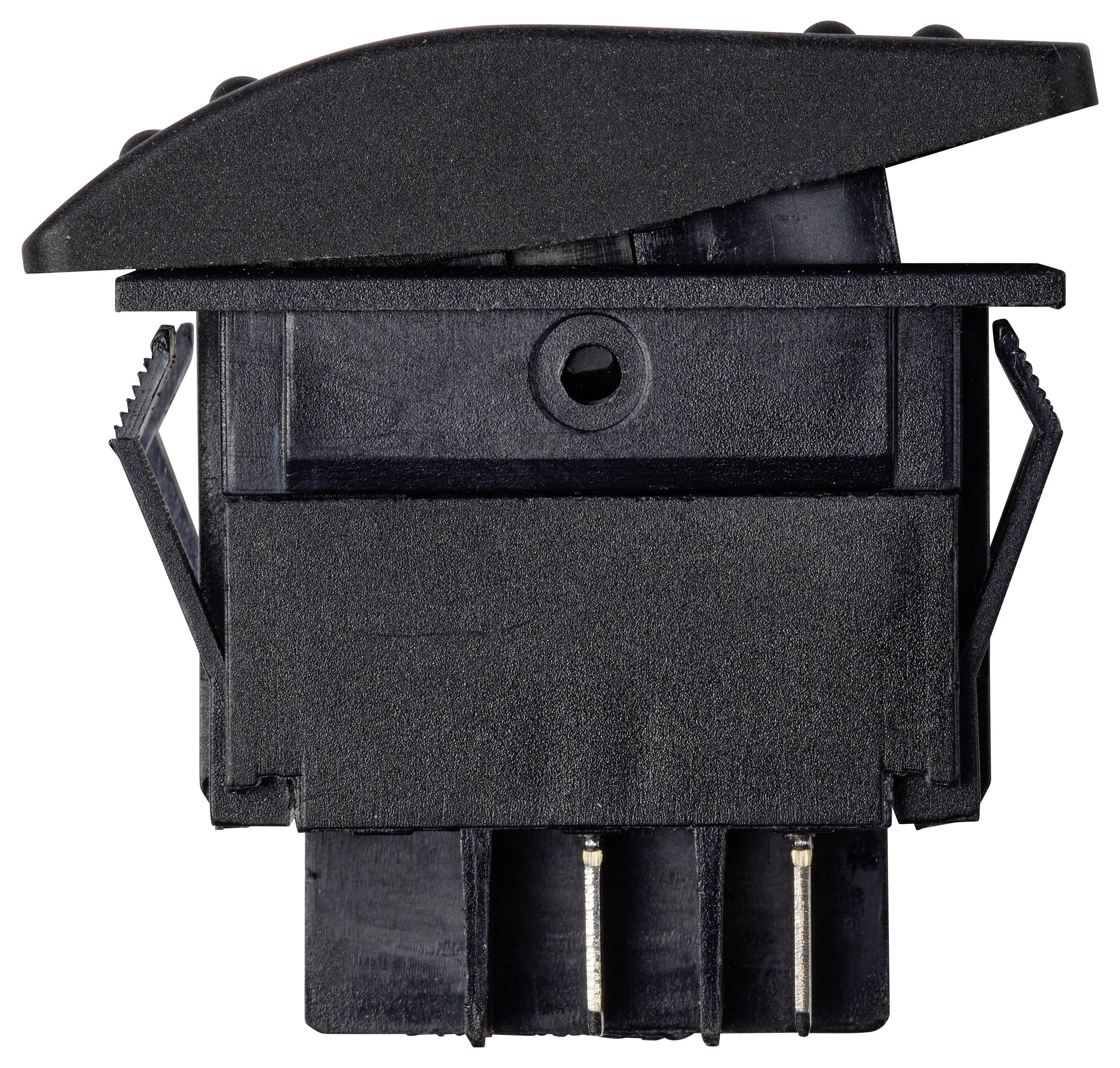

Black rocker switch with a curved top and three metal terminals, shown against a white background.

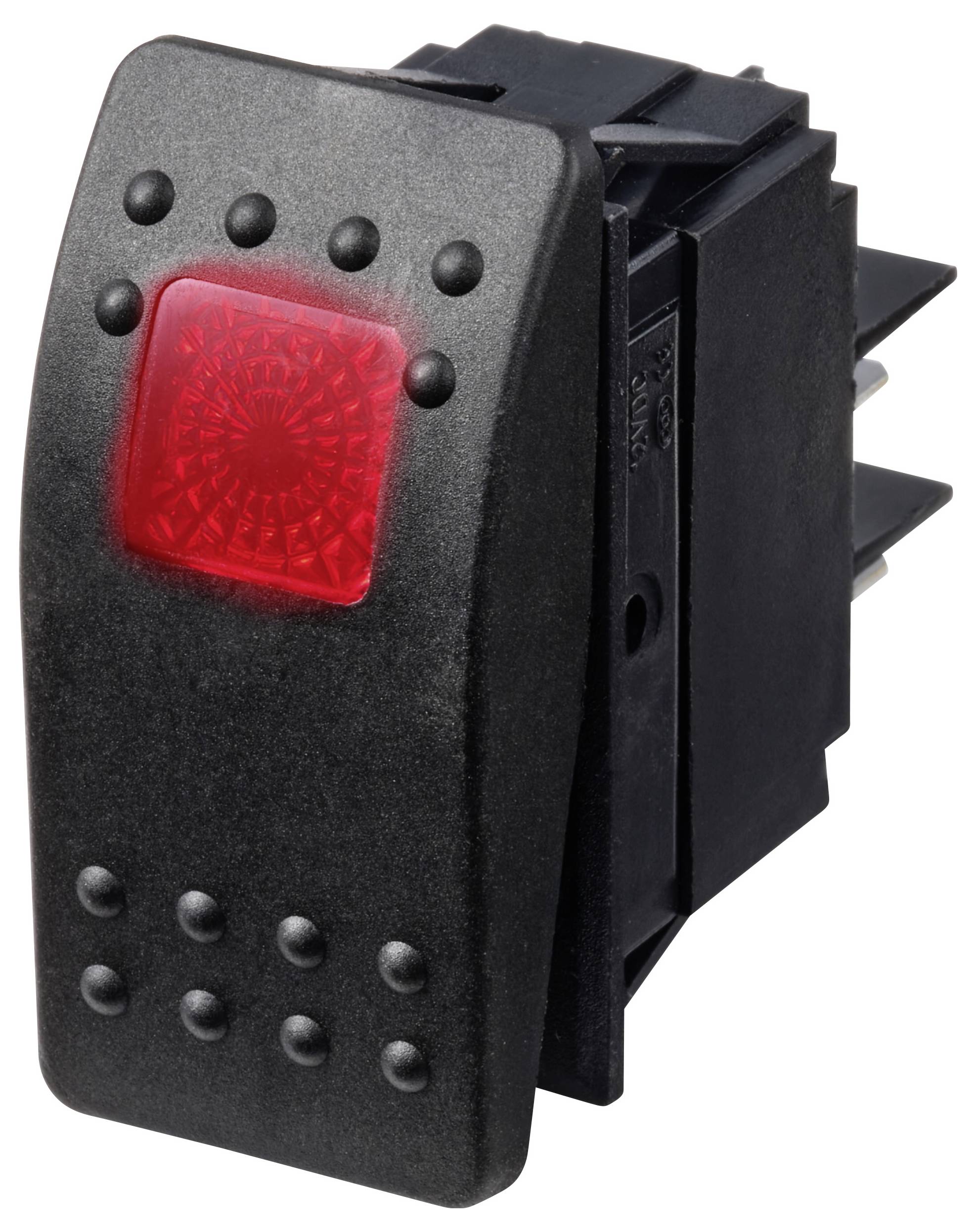

Illuminated black rocker switch with a red lighted center, shown on a white background.

1/5

Product type

Flip switch

Casing/button colour

Black

Red

Functions

latch

Lighting type

LED

Colour

Red

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.81 / piece)

€ 2.81

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Rocker Switch, Red, Off/On 12/24 V DC

Switching voltage: 12 V, 24 V
Switching current (max.): 20 A
Switch position: 2 x Off/On
Functions (switches): latch
Colours (LEDs): Red

Technical specifications

Product type: Flip switch

Casing/button colour: Black
Red

Functions: latch

Lighting type: LED

Colour: Red

Bulb type: Glow lamp

Switch position: 2 x Off/On

Material: Thermoplastic

Contact material: Cu-alloy, nickel plated

Connection: Type C CEE 7/16 plug 6.3 mm

Contact resistance: ≤100 mΩ

Number of pins: 4

Switching voltage: 12 V
24 V

Switching current (max.): 20 A

Dielectric strength: ≥1500 V AC / 5 mA / 5 s

Min. temperature: -10 °C

Max. temperature: +80 °C

Length: 50 mm

Width: 24 mm

Height: 49.5 mm

Electrical lifespan: 10,000 cycles

Front panel cut-out: 22 x 37 mm

Front panel thickness: 2 mm

Content: 1 pc(s)

Insulation resistance: ≥100 MΩ

Dim: (L x W x H) 50 x 24 x 49.5 mm

Industrial packaging: No

RoHS-compliant: Yes

Type: TC-14988672

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3747168 TRU COMPONENTS TC-14988672 Flip switch 12 V, 24 V 20 A 2 x Off/On latch 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3747168 TRU COMPONENTS TC-14988672 Flip switch 12 V, 24 V 20 A 2 x Off/On latch 1 pc(s)

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
