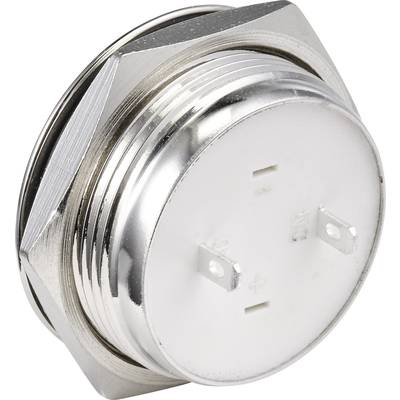

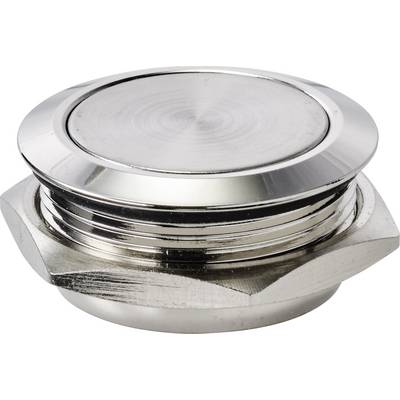

TRU COMPONENTS TC-9563700 Pushbutton 16 V 0.05 A 1 x Off/(On) Contact (Ø x H) 13.7 mm x 14.3 mm IP65 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
Pushbutton
Switch position
1 x Off/(On)
Connection
Plug
Switching voltage
16 V
Datasheet (PDF)
363 Piece(s)
Do your needs go beyond this?
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.65
5
7% = € 0.31
€ 4.34
10
9% = € 0.42
€ 4.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.65 / piece)
€
Technical specifications
- Packaging type
Bulk
- Product type
Pushbutton
- Switch/button features
Planar
- Casing/button colour
Stainless steel look
- Functions
Contact
- Switch position
1 x Off/(On)
- Material
Stainless steel
- Connection
Plug
- Contact resistance
≤50 mΩ
- Resistance
≥1000 MΩ
- Switching voltage
16 V
- Switching current (max.)
0.05 A
- Height
14.3 mm
- (Ø)
13.7 mm
- Button diameter
9 mm
- Recess diameter
12 mm
- Electrical lifespan
50000 times
IP65
- Content
1 pc(s)
- Insulation resistance
≥1000 MΩ
- Contact resistance
≤50 mΩ
- Dim

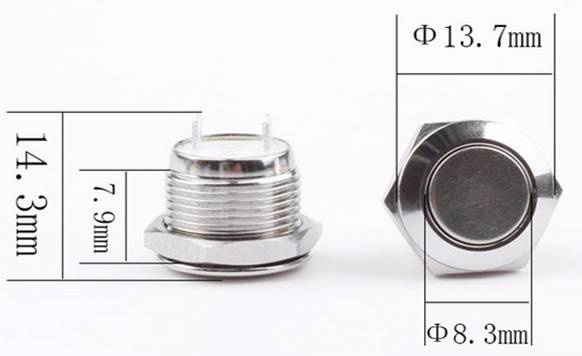

(Ø x H) 13.7 mm x 14.3 mm
- RoHS-compliant
- Type
TC-9563700
Documents & Downloads
Datasheet
Datasheet 2390925 TRU COMPONENTS TC-9563700 Pushbutton 16 V 0.05 A 1 x Off/(On) Contact (Ø x H) 13.7 mm x 14.3 mm IP65 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 2390925 TRU COMPONENTS TC-9563700 Pushbutton 16 V 0.05 A 1 x Off/(On) Contact (Ø x H) 13.7 mm x 14.3 mm IP65 1 pc(s) Bulk
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
